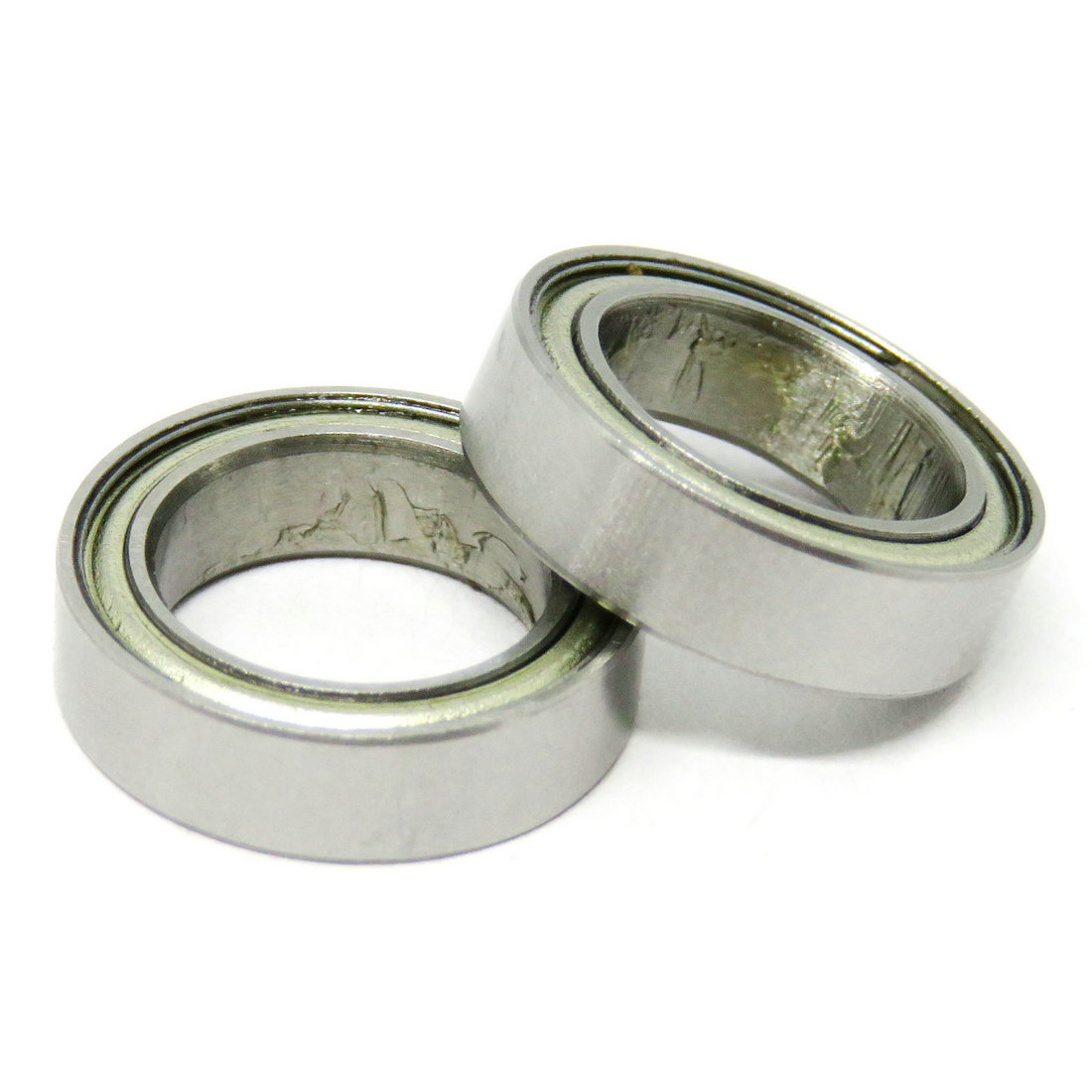

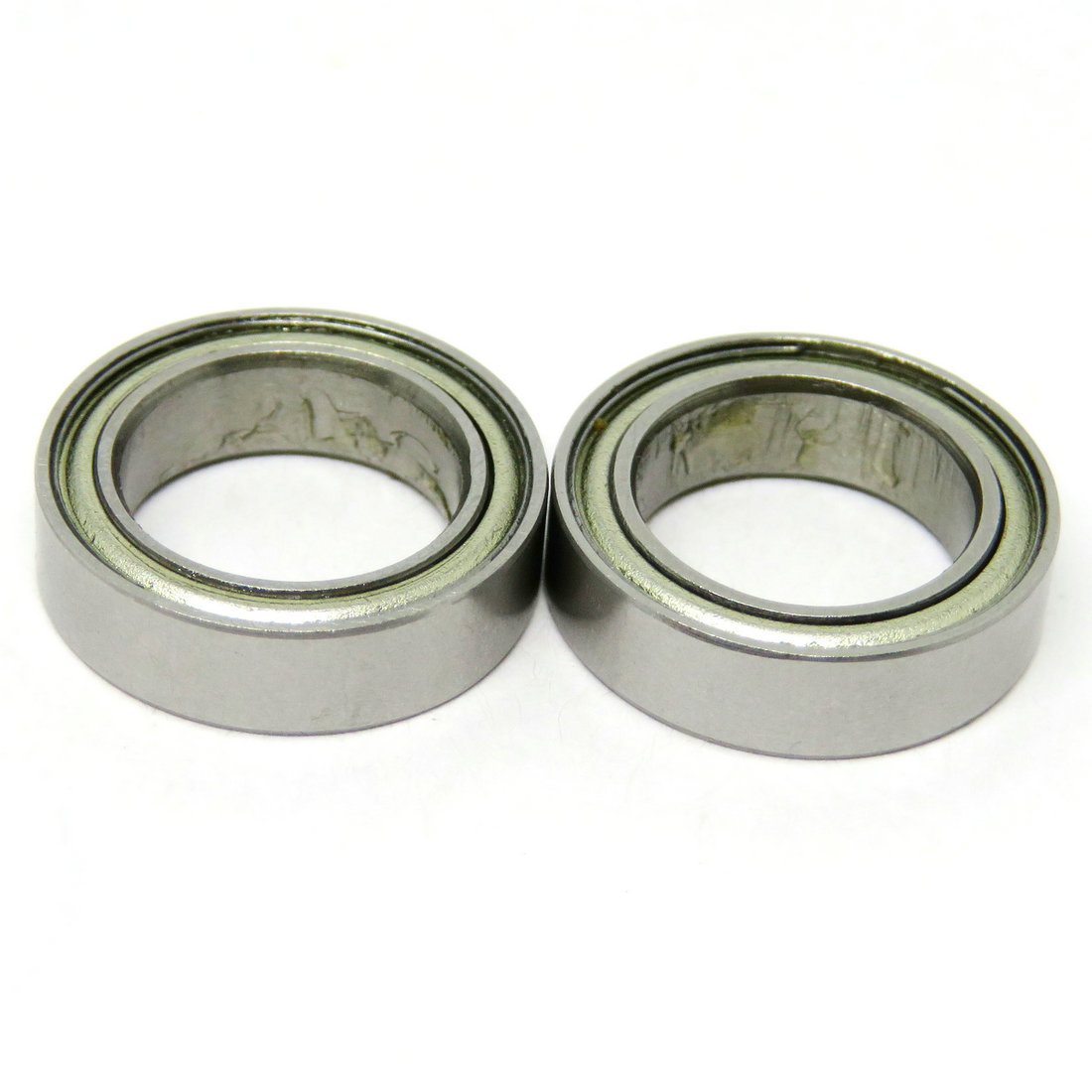

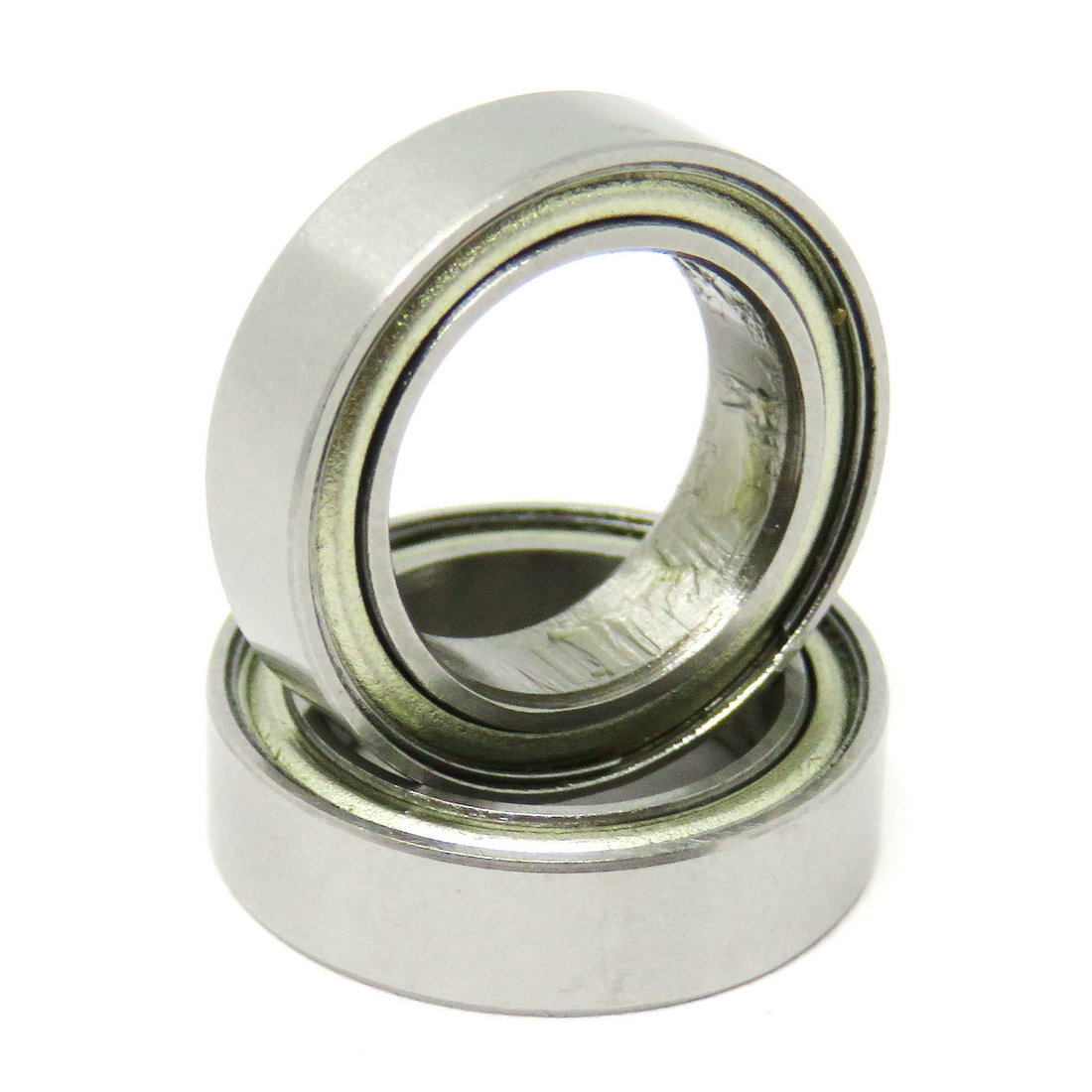

6700 ZZ Thin Section Bearings 10x15x4mm 6700ZZ ABEC 3 Metric Series Ball Bearing

6700 ZZ Thin Section Bearings 10x15x4mm 6700ZZ ABEC 3 Metric Series Ball Bearing

 Zoty deep groove ball bearing.jpg

Product NameThin section wall ball bearing 6700 2rs 6701 6702 6703 zz 6704 6705 6706 6707 6708 6709 6710 bearing
BrandNeutral/ No brand
Model No6700-2RS
Sizes(mm)10x15x4mm bearing
MaterialChrome steel, 52100 bearing steel/ 100Cr6
Sealed Type2RS rubber seals/ ZZ metal shields/Open
PrecisionP0, P6/  ABEC-1, ABEC-3
UsedThin section wall ball bearing 6700 2rs 6701 6702 6703 zz 6704 6705 6706 6707 6708 6709 6710 bearing, use for all kinds of rolling spplication, tools, machines, rc model, rc car, rc wheel,furniture, printer machines, money machins, home appliance, cabinet, sliding doors, windows....
Packing10pcs/tube+ carton
Shipping MethodBy Air, Sea, Train, Truck, or other DDP Service


6700 ZZ Thin Section Bearings 10x15x4mm 6700ZZ ABEC-3 Metric Series Ball Bearing.jpg6700 ZZ Thin Section Bearings 10x15x4mm 6700ZZ ABEC-3 Metric Series Ball Bearing.jpg




Thin section wall ball bearing 6700 2rs 6701 6702 6703 zz 6704 6705 6706 6707 6708 6709 6710 bearing

6700 Series Deep Groove Ball Bearings thin section bearing with an ultra-thin, square cross-section. 6700ZZ Ball Bearing 10x15x4mm.


6700Z Lubricated with Grease, Chrome Steel 52100 (GCr15) ABEC 3 Precision Races, Hard Chrome Steel 52100 (GCr15) Balls


6700 2Z suitable for extremely high speeds compared to deep groove ball bearings with a larger cross-section


6700ZZ Shield covred thin wall deep groove ball bearings inner bore 10mm, outer diameter 15mm, width 4mm, it made of chrome steel material, widely use for rolling systems, furniture, sliding door window,  tools, machines.... this list 6700ZZ bearing 15x10x4mm of the tolerance grade is ABEC-1, P0 precision, lubed with grease.

Ball bearing features.JPG

6700 series thin wall ball bearings.jpg

6700 SeriesThin-walled bearings are simple structure and easy to use, are the most widely application bearing, mainly used to support radial load. This kind of bearings with small friction coefficient, low noise, high speed limit, but is not able to bear impact strike, not suitable for a heavy load. According to the user's requirements, we can provide high precision (P6 ,P5), all kinds of clearance and vibration noise level (Z1 and Z2 or V1, V2) bearing.

Thin-walled bearing cage usually for steel plate stamping ribbon cage, and engineering plastic, copper solid cage also can be used. Large bearing used car system metal solid cage more. according to different use environment ,Sealed bearing can add corresponding bearing special grease. Thin-walled deep groove ball bearing is widely used in robot, automation control mechanical and the occasions which installation space narrow and low load.

Zoty bearing supply RC ball bearing set, hybrid ceramic bearing, stainless steel ball bearing , flanged bearings, one way bearing... widely used for RC models, racing, trucks, boat, cars..
