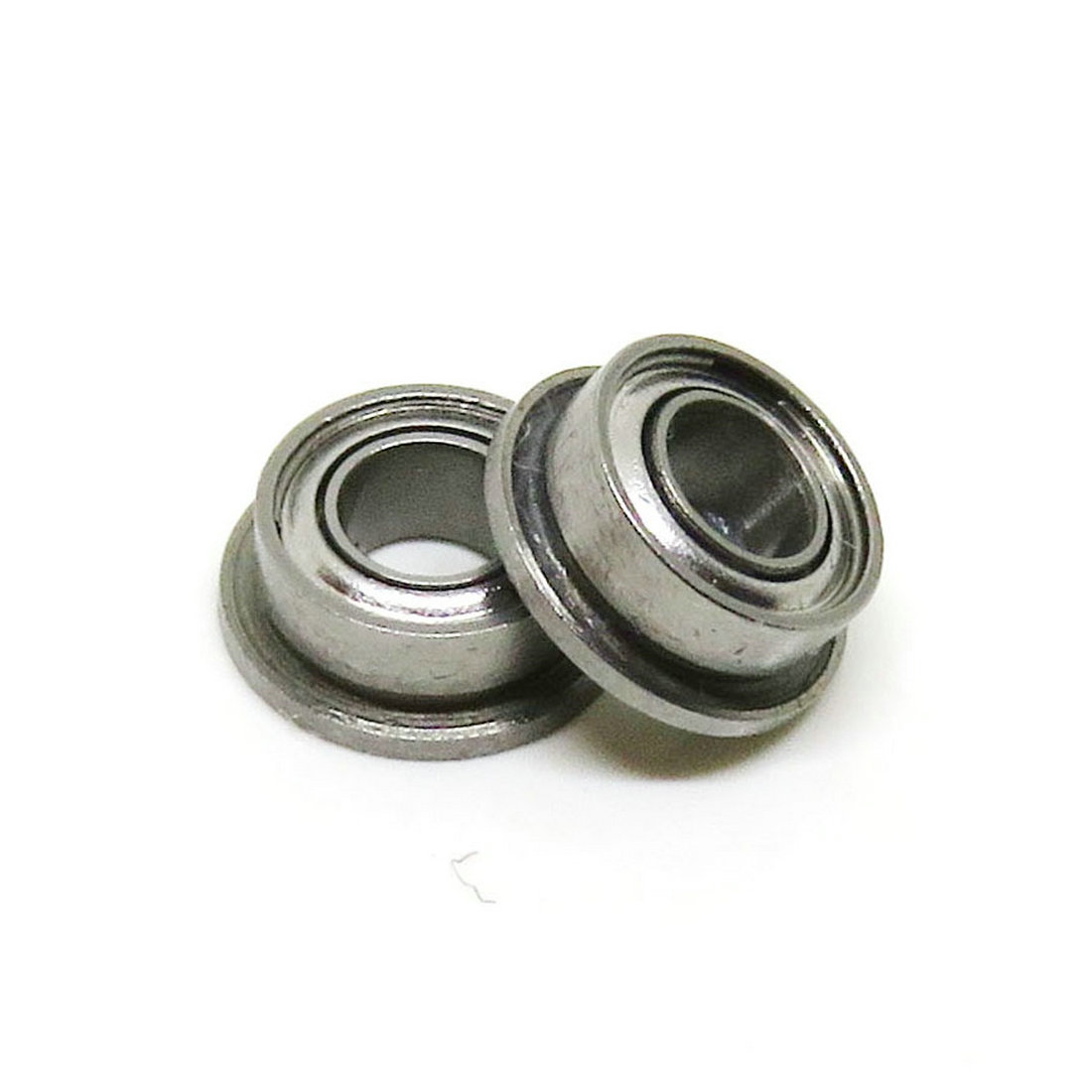

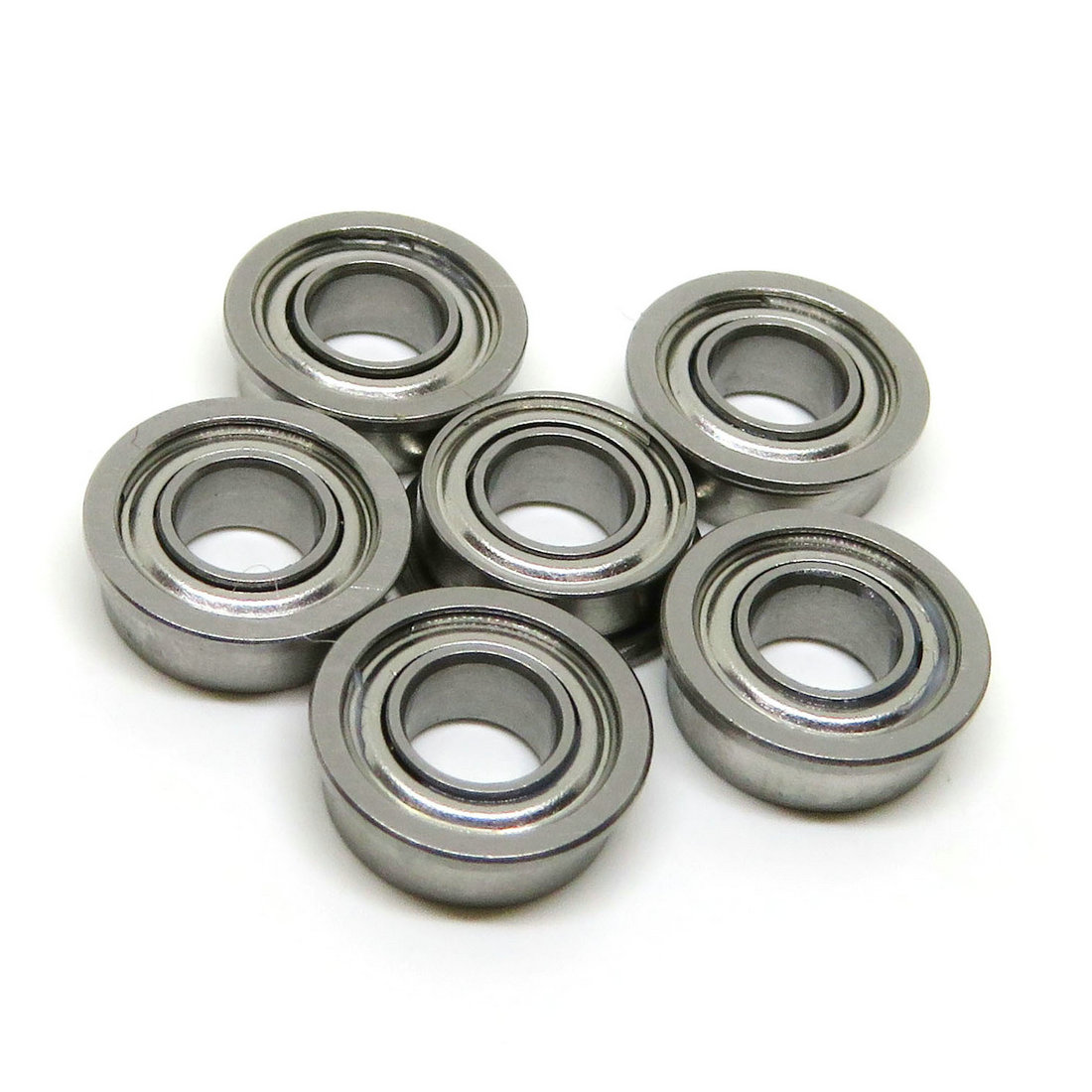

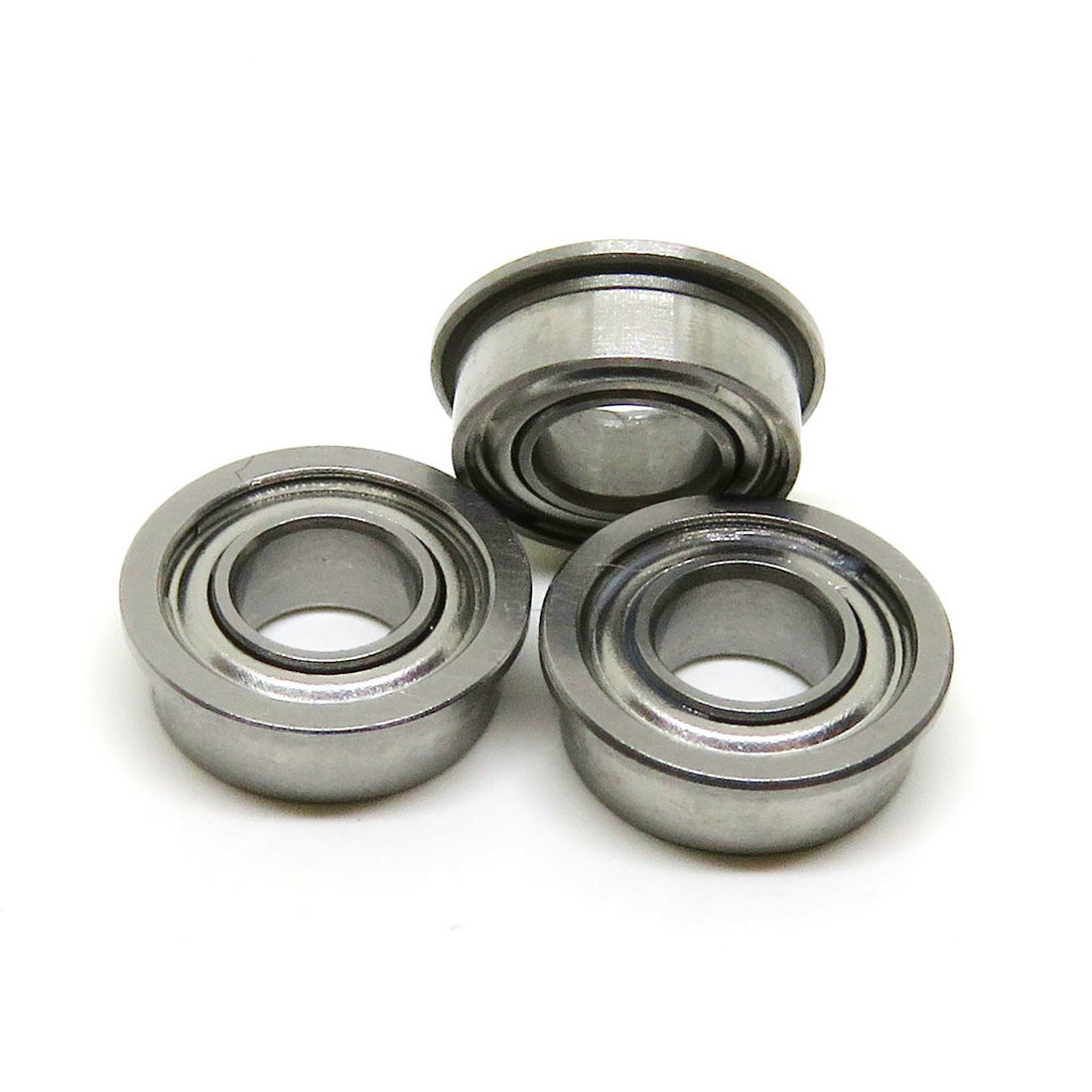

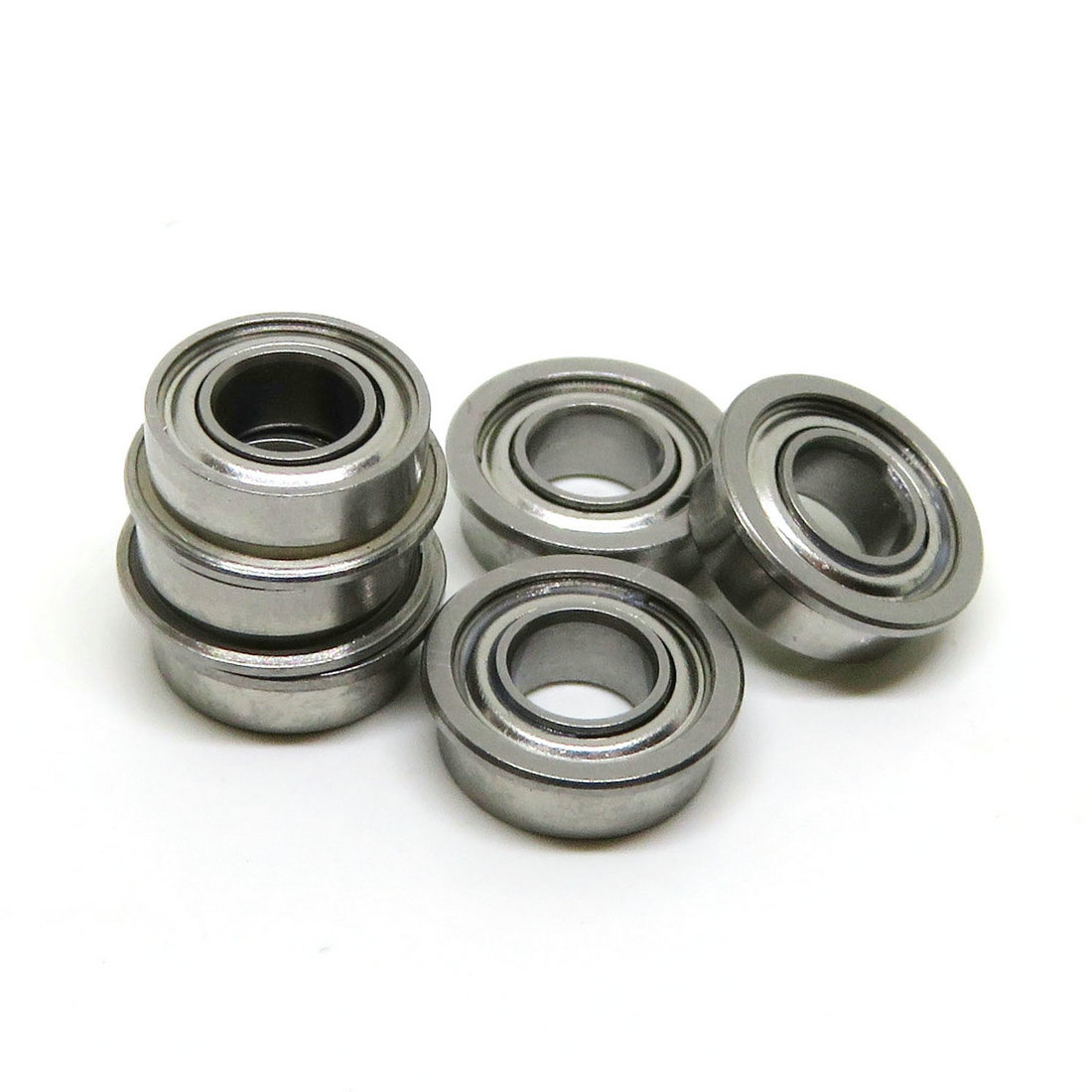

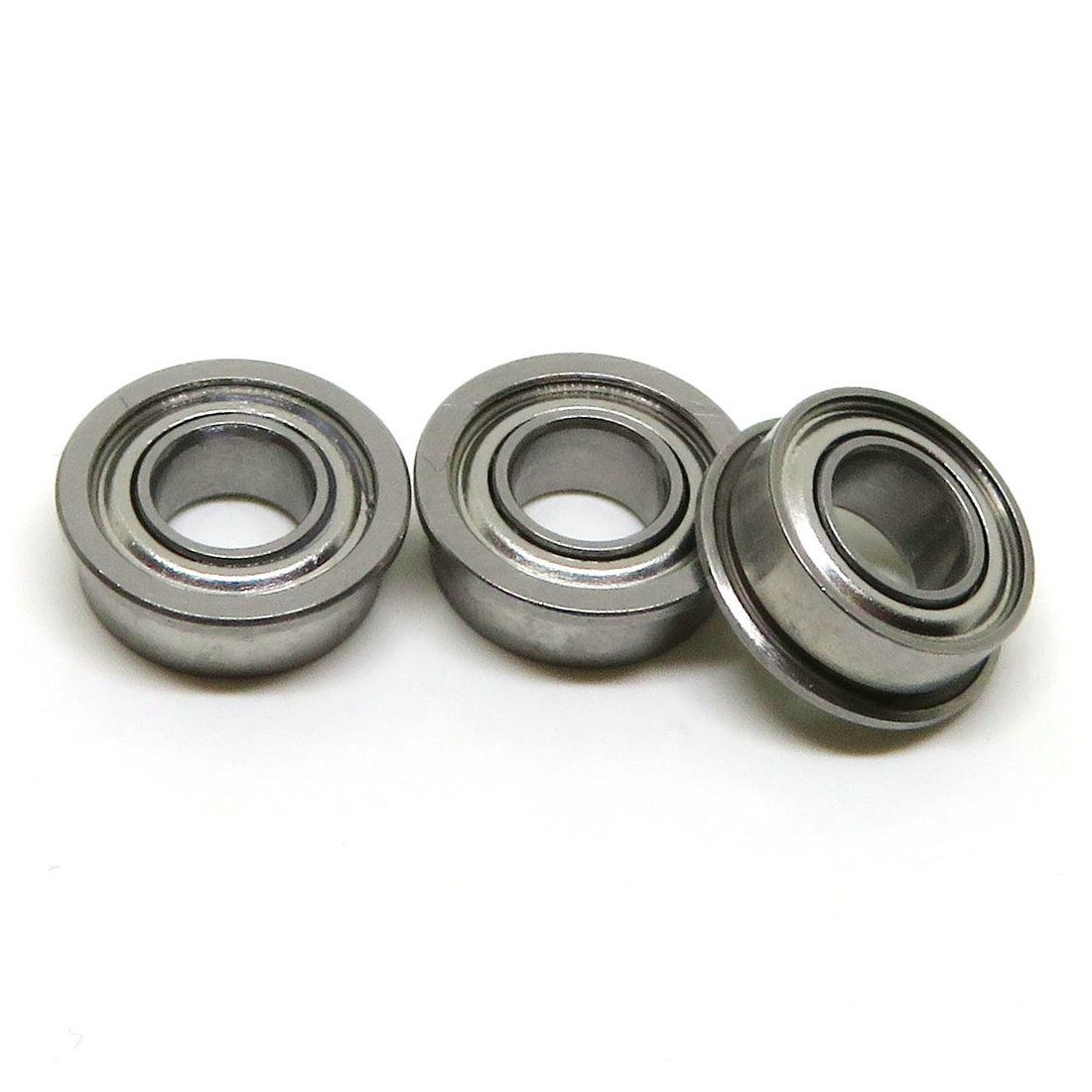

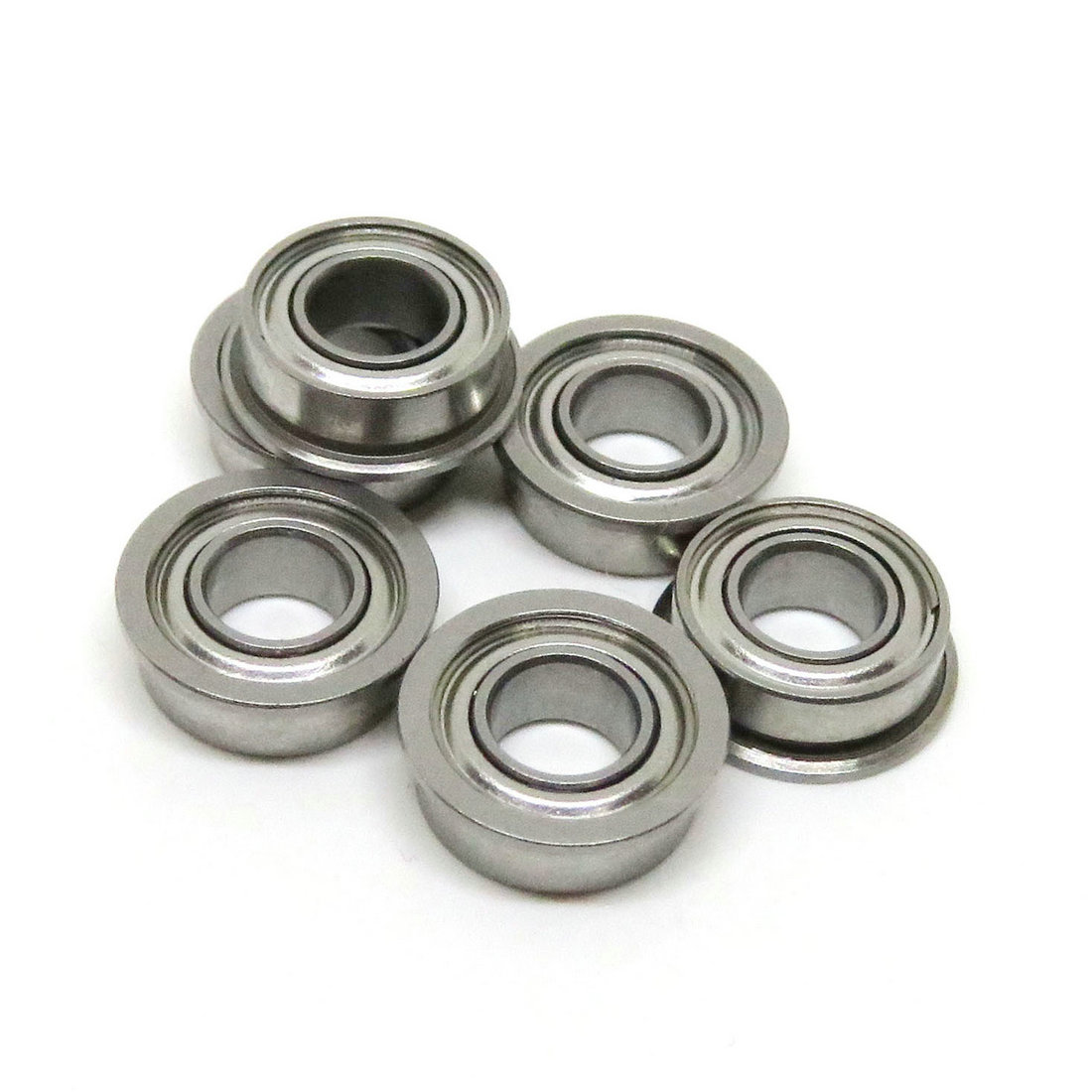

SMF105C-ZZ rc model bearing high grade Hybrid flanged ceramic bearing 5x10x4mm

SMF105C-ZZ rc model bearing high grade Hybrid flanged ceramic bearing 5x10x4mm

Zoty main products.JPG

Zoty bearing payment term.jpg

Zoty bearing-stainless steel flanged ceramic bearing.jpg

Laser engraving logo service.JPG

Zoty bearing's cage option.png

Product NameSMF105C-ZZ rc model bearing high grade Hybrid flanged ceramic bearing 5x10x4mm
Model NoSMF105C-ZZ
MaterialAISI440C stainless steel flanged rings+Si3n4 ceramic balls
Sealed TypeOpen/ZZ steel shields/2RS Rubber seals
PrecisionP5, P6
ClearanceC0, C2, C3, C4
UsedSSMF105C-ZZ rc model bearing high grade Hybrid flanged ceramic bearing 5x10x4mm, widely use for high speed applications, Fishing reels, RC car, rc model, rc part, bushless motor, machines...
Packing10pcs/tube+poly-bag+ carton
Shipping MethodBy Air, Sea, Train, Truck, or other DDP Service

Zoty hybrid ceramic bearing seals type.png

Zoty Hybrid ceramic flange ball bearings have ceramic balls, with stainless steel flanged races and retainers. Ceramic hybrids are lighter, sustaining higher operating temperatures than traditional bearings. The flange is just another option given to the design engineer by the bearing manufacturer. A flange is an extension, or a lip, on the outer ring of the bearing, designed to aid the mounting and positioning of a bearing in a delicate or problematic application.

RC car high speed hybrid ceramic bearing.jpg

Our highly polished 440C stainless steel raw material construction with Si3N4 Silicon nitride bceramic balls, and proprietary precision inner tolerances is combined with our 100% synthetic lightweight Made in China which is super slippery and bonds to the bearing surfaces resulting in a very fast spinning bearing. Also very suitable for high speed, wet applications.Faster means you can cast your items farther and quicker.

SMF105C-ZZ rc model bearing high grade Hybrid flanged ceramic bearing 5x10x4mme:

Stainless steel flanged rings, black Si3N4 ceramic balls, all size in stock, same day delivery, please feel free to contact with ZOTY.

SMF105ZZ steel shields flanged ceramic ball bearing size inner bore 5mm, outer diameter 10mm, width 4mm. its Metric Flanged Ball Bearings small size hybrid flange ceramic balls bearings.used in a range of applications from Biotech to Food processing, RC Helicopters, RC Planes, RC Trucks, RC Cars, RC models, Tools...

SMF105C-ZZ rc model bearing high grade Hybrid flanged ceramic bearing 5x10x4mm.jpgSMF105C-ZZ rc model bearing high grade Hybrid flanged ceramic bearing 5x10x4mm.jpg

Flanged Hybrid Ceramic Ball Bearing Features:

1. AISI440C stainless steel rings with flanged

2. AISI304 stainless steel cage

3. Si3N4 ceramic balls

4. Dry lube/ AF2 Oil

5. Orange rubber seals/ZZ metal shields/ Open

6. High speed, durable, long working life

7. ABEC-7/ ABEC-9 grade

More about zoty ceramic hybrid bearing.jpg

RC car high speed ceramic bearing popular sizes as following, all in stock ready to ship:

Ball Bearing bore 2mm:  2x5x2mm, 2x5x2.5mm, 2x6x2.5mm, 2.5x6x...

Ball Bearing bore 3mm: 3x6x2mm, 3x6x2.5mm, 3x7x3mm, 3x8x2.5mm, 3x8x3mm, 3x8x4mm, 3x10x4mm, 3x11x4mm

Ball Bearing bore 4mm: 4x7x2mm 4x7x2.5mm, 4x8x2mm, 4x8x3mm, 4x9x4mm, 4x10x4mm, 4x11x4mm,4x13x5mm

Ball Bearing bore 5mm: 5x8x2mm, 5x8x2.5mm, 5x9x3mm, 5x10x3mm, 5x10x4mm, 5x11x3mm, 5x11x4mm, 5x13x4mm

Ball Bearing bore 6mm: 6x10x2.5mm, 6x10x2.5mm, 6x10x3mm, 6x12x4mm, 6x13x3.5mm, 6x13x5mm, 6x15x5mm, 6x19x6mm

Ball Bearing bore 7mm:7x11x3mm, 7x14x3.5mm, 7x14x5mm, 7x17x5mm

Ball Bearing bore 8mm: 8x12x2.5mm, 8x12x3.5mm,8x14x4mm, 8x16x5mm

Ball Bearing bore 9mm:  9x17x5mm, 9x20x5mm

Ball Bearing bore 10mm: 10x15x4mm, 10x19x5mm, 10x20x5mm

Ball Bearing bore 12mm: 12x18x4mm

Ball Bearing bore 15mm: 15x21x5mm....

Inch/imperial sizes ball bearing : SR133C-ZZ 3/32 x 3/16 x 3/32, SR144C-ZZ 1/8"x1/4"x7/64", SR2C-ZZ 1/8" x 3/8" x 5/32, SR2-5C-ZZ 1/8" x 5/16" x 9/64", SR156C-ZZ 3/16" x 5/16" x 1/8, SR166C-ZZ  3/16 x 3/8 x 1/8, SR168C-ZZ 1/4"x3/8"x1/8..

Flanged hybrid ceramic ball bearings: SMF63C 3x6x2mm, SMF63C-ZZ 3x6x2.5mm, SMF83C-ZZ 3x8x3mm, SMF105C-ZZ 5x10x4mm, SFR2-5C-ZZ 1/8" x 5/16" x 9/64", SFR144C-ZZ 1/8"x1/4"x7/64", SFR168C-ZZ 1/4"x3/8"x1/8, SFR166C-ZZ  3/16 x 3/8 x 1/8, SFR156C-ZZ 3/16" x 5/16" x 1/8,SFR133C-ZZ 3/32 x 3/16 x 3/32, SF695C-ZZ 5x13x4mm, SF688C-ZZ 8x16x5mm, SF6700C-ZZ 10x15x4mm...
