MF63ZZ Flange Bearing 3x6x2.5 mm ABEC-1 10PCS Miniature Flanged MF63 Z ZZ Ball Bearings

MF63ZZ Flange Bearing 3x6x2.5 mm ABEC-1 10PCS Miniature Flanged MF63 Z ZZ Ball Bearings

 Zoty deep groove ball bearing.jpg

Bearing facotry-5.JPG

Product NameMF63ZZ Flange Bearing 3x6x2.5 mm ABEC-1 10PCS Miniature Flanged MF63 Z ZZ Ball Bearings
BrandNeutral/ No brand
Model NoM63ZZ
Sizes(mm)3x6x2.5mm flanged bearing
MaterialChrome steel, 52100 bearing steel/ 100Cr6
Sealed Type2RS rubber seals/ ZZ metal shields/Open
PrecisionP0, P6/  ABEC-1, ABEC-3
UsedMF63ZZ Flange Bearing 3x6x2.5 mm ABEC-1 10PCS Miniature Flanged MF63 Z ZZ Ball Bearings , use for all kinds of rolling spplication, jewelry, watch,tools, machines, rc model, rc car, rc wheel,furniture, printer machines, money machins, home appliance, cabinet, sliding doors, windows....

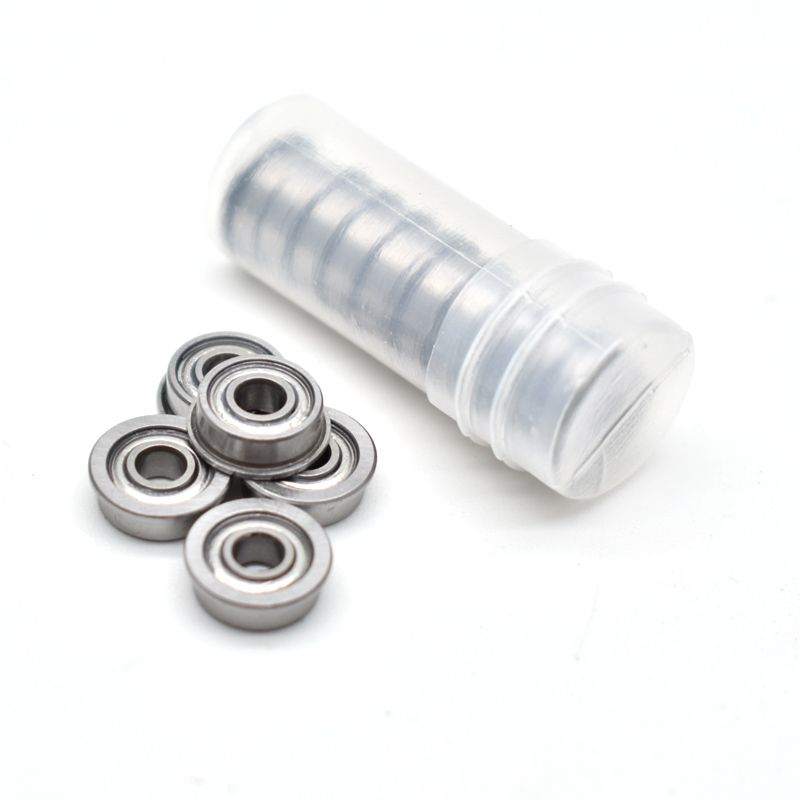

Packing10pcs/tube+ carton
Shipping MethodBy Air, Sea, Train, Truck, or other DDP Service

MF63ZZ Flange Bearing 3x6x2.5 mm ABEC-1 10PCS Miniature Flanged MF63 Z ZZ Ball Bearings

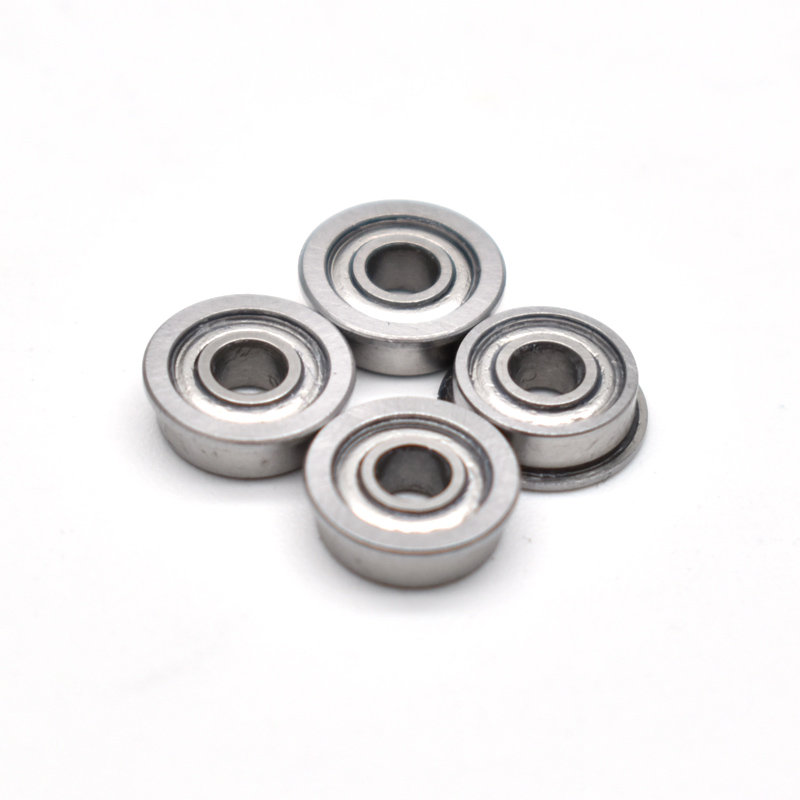

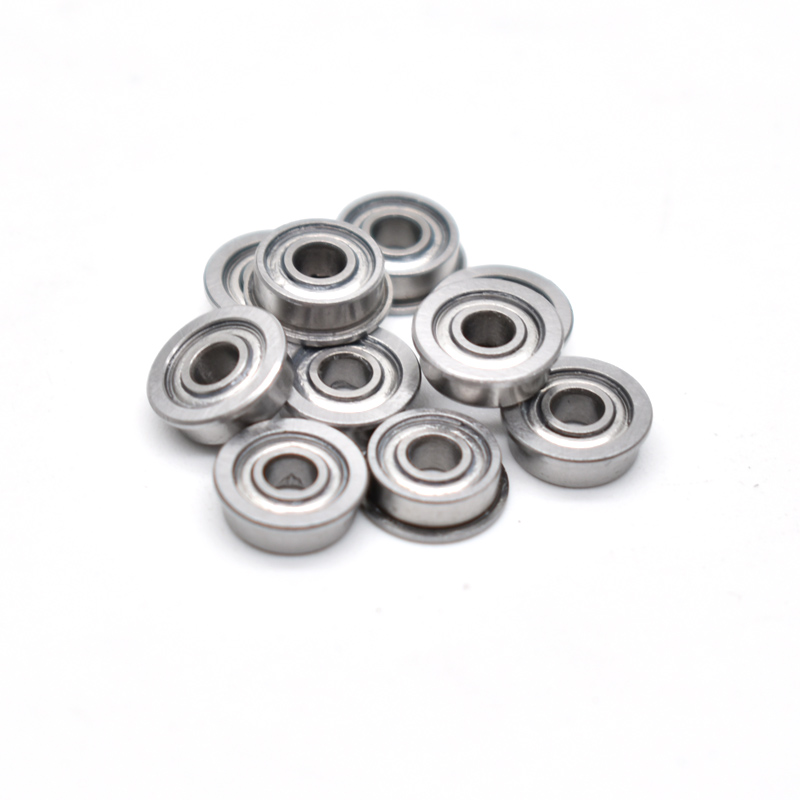

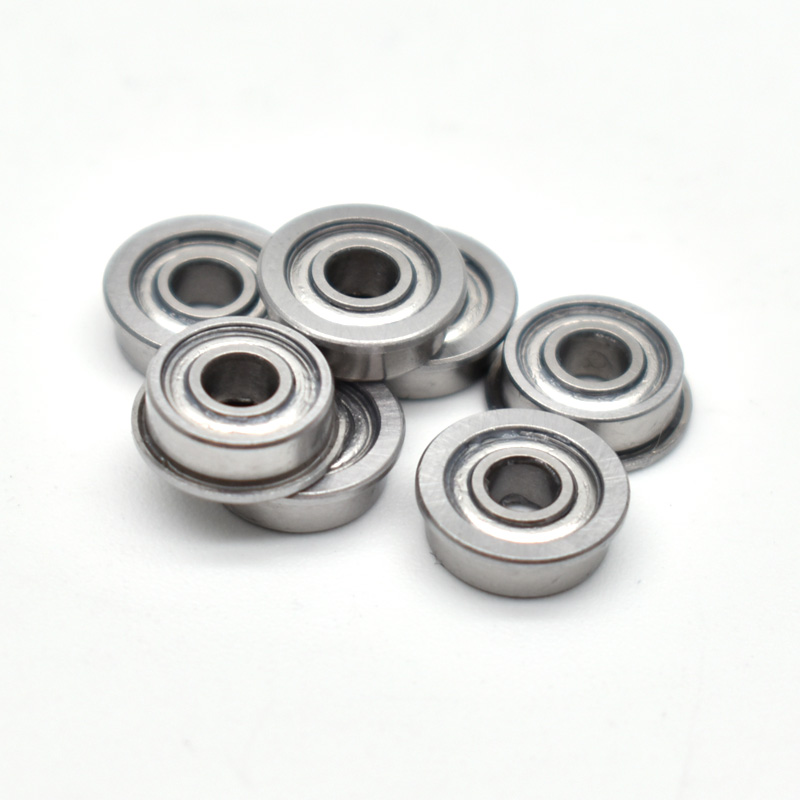

MF63ZZ small flange bearing miniature flanged deep groove ball bearings inner bore 3mm, outer diameter 6mm, width 2.5mm, it made of chrome steel material flanged rings , widely use for rolling systems, furniture, sliding door window,  tools, machines.... this list MF63-ZZbearing 3x6x2.5.mm of the tolerance grade is ABEC-1, P0 precision, lubed with grease.

MF63ZZ Flange Bearing 3x6x2.5 mm ABEC-1 10PCS Miniature Flanged MF63 Z ZZ Ball Bearings



MF63-ZZ Flanged Bearing ABEC-1 3x6x2.5mm Single row, deep-groove ball bearing for applications that support high speeds, axial loads in both directions, and radial loads



Measurements

    Inner Diameter: 3

    Outer Diameter: 6

    Thickness: 2.5

    Measurement Unit: Metric


Materials

    Bearing Type: Radial Bearing

    Product Seal: Two Metal Shield (ZZ)

    Ball Material: Chrome Steel

    Retainer Material: Metal or High Speed Plastic


Technical Specifications

    Quality Level ABEC 1

    Operating  Temperature:30 °C to +110°C.

    Raceways: Finely polished superior finish for long life, and low noise.

    Lubrication  recommended: High Quality Synthetic bearing Lubricant.


Commonly used for glider/rocker arms, wheels of the cart, lawnmowers, printers, pumps, motors, gearboxes, reducer, textile machinery, electronic equipment, and more.

MR miniature bearing small size from MF52 2x5x2mm MF52ZZ MF63 MF63ZZ MF74 MF74ZZ MF85, MF85ZZ, MF104, MF104ZZ MF105 MF105ZZ MF106, MF106ZZ, MF115 MF115ZZ MF117 MF117ZZ MF128ZZ, MF128 MF148  MF148ZZ MF116ZZ, MF126 MF126Z MF125ZZ ... also available rubber seals.

MF63ZZ Flange Bearing 3x6x2.5 mm ABEC-1 10PCS Miniature Flanged MF63 Z ZZ Ball Bearings.jpgMF63ZZ Flange Bearing 3x6x2.5 mm ABEC-1 10PCS Miniature Flanged MF63 Z ZZ Ball Bearings.jpg

MF52 MF62 MF63 MF74 MF85 MF95 MF104 MF105 MF106 MF115 MF117 MF126 MF128 MF137 MF148 ZZ RS Z 2Z 2RS Micro Flange Ball Bearing.jpg


MF52 MF62 MF63 MF74 MF85 MF95 MF104 MF105 MF106 MF115 MF117 MF126 MF128 MF137 MF148 ZZ RS Z 2Z 2RS Micro Flange Ball Bearing.jpg

Flanged ball bearings are available open, shielded or sealed.Deep groove radial flanged miniature bearings can withstand heavy radial loads and moderate thrust loads in both directions. Flanged miniature ball bearings have an outer ring flange to facilitate location in a housing.

Flange Bearings have several different types and they are engineered to meet specific requirements of the application or situation. Different types of these Bearings come with different design, cages, load capacities as well as different performance. These Bearings are designed to mount ball bearing with high precision and performance, because these Bearings are highly sturdy, water resistant and dirt resistance, they are suitable for providing mounting for other apparatuses with rotary or linear motion.

APPLICATION:

These Bearings are used in several different industries and machines, they are widely used in automation, machine construction, agricultural machines, food industry, conveyor technology and industry as well as other industries that need high carrying capacity.

Zoty bearing supply RC ball bearing set, hybrid ceramic bearing, stainless steel ball bearing , flanged bearings, one way bearing... widely used for RC models, racing, trucks, boat, cars..
