60mm Aluminum LEGO Compatible Mecanum wheels set( 2 Left, 2 Right) Basic 14159

It is the smallest size Mecanum wheel in all of our Aluminum mecanum wheel. Each wheel is comprised of a series of rollers, Using rollers set on 45°rotational

axis parallel to the rotational axis of the wheel. The set of 60mm mecanum wheels include 2 left wheels and 2 right wheels. You can also use universal hubs to

 connect the wheels and motor. All of you need to do is to add your drive motor, controller boards and batteries.

Specifications:

·Diameter:60mm

·Width:31mm

·Number of Rollers:8

·Number of Plates:2

·Body material: Aluminum Alloy

·Roller material: PP+PE

·Spacer material: Aluminum

·Length of roller:30mm

·Net weight:86gx4

·Load capacity: 10Kg

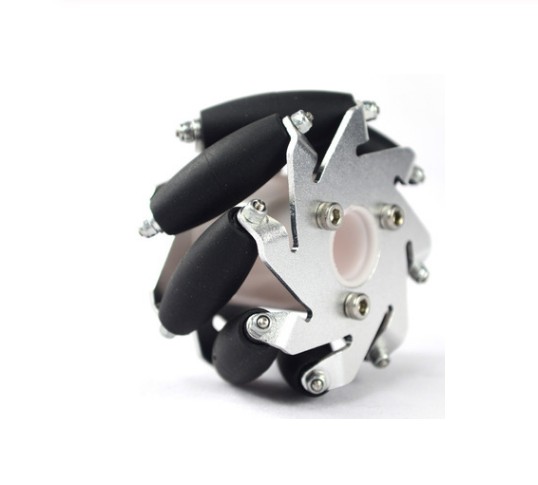

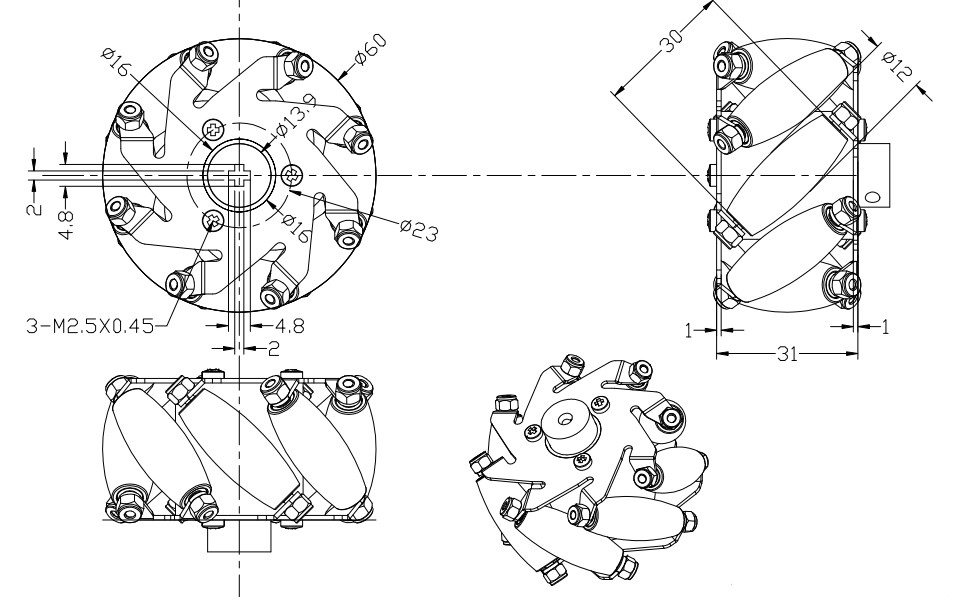

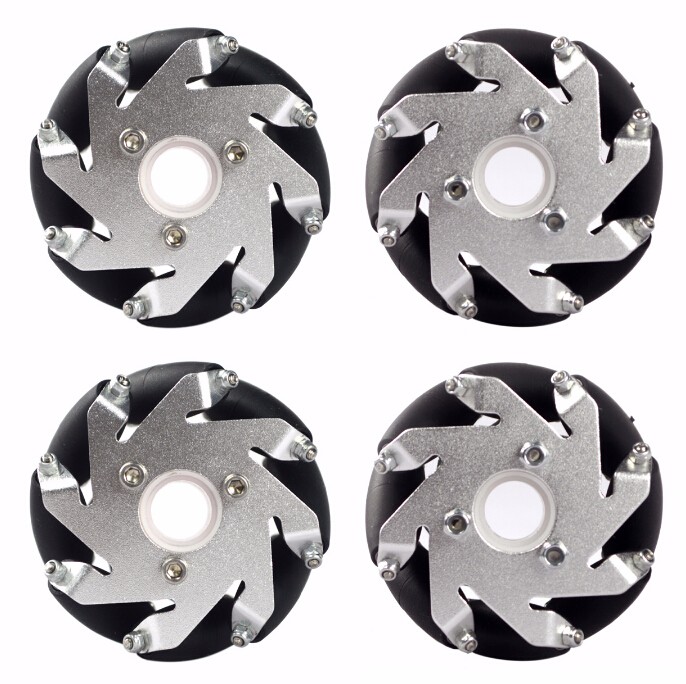

60mm Aluminum LEGO Compatible Mecanum wheels set( 2 Left, 2 Right) Basic 14159 pictures as below:

What are the advantages and disadvantages of the mecanum wheel?

Much easier to climb ramps with Mecanums. To my understanding Mecanums are also more efficient in forward and reverse directions (like a normal wheel) while still giving you lateral mobility. Omni-Drives will give you true omnidirectional motion.

The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,

 can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.

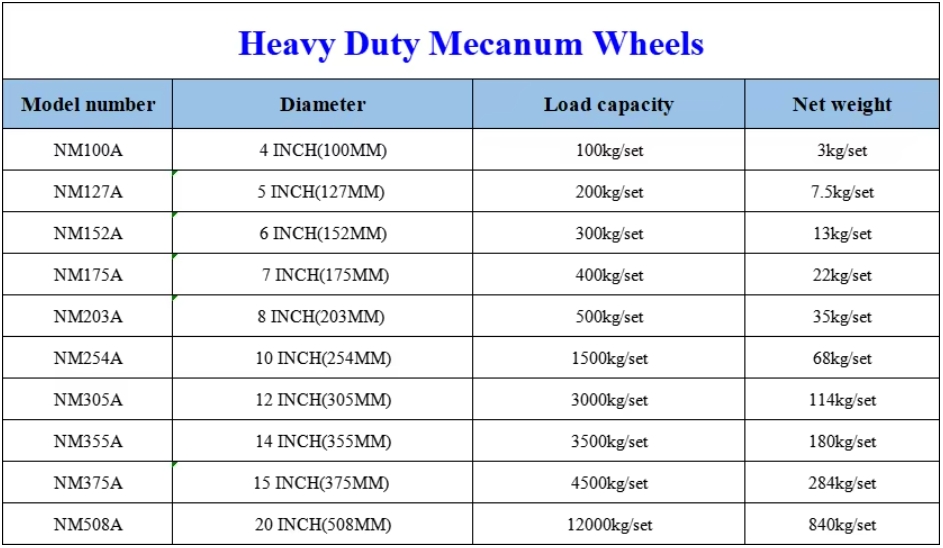

Heavy duty mecanum wheels specifications from 100mm~508mm:
