LEGO Durable 60mm Aluminum Mecanum Wheels Compatible with Arduino and NXT Hubs 14144
The 60mm aluminum mecanum wheel is the smallest in our range of mecanum wheels. This set includes two left-handed and two right-handed wheels,
making it ideal for compact robotic platforms.Designed for versatility, these wheels are compatible with LEGO systems and come with an NXT-compatible hub as well as an axle center hub suitable for
Arduino motors and other common robotics platforms. Universal hubs can also be used to connect the wheels to your motor, offering greater flexibility in setup and integration.
Each wheel features 8 rubber rollers mounted between two durable aluminum plates. The rollers are positioned at a 45-degree angle relative to the main rotational axis,
enabling smooth omnidirectional movement.
Equipping your robot with these mecanum wheels allows it to move forward, backward, and laterally without changing orientation — providing true multidirectional
mobility. All you need to add are your drive motors, controller board, and batteries to get started.

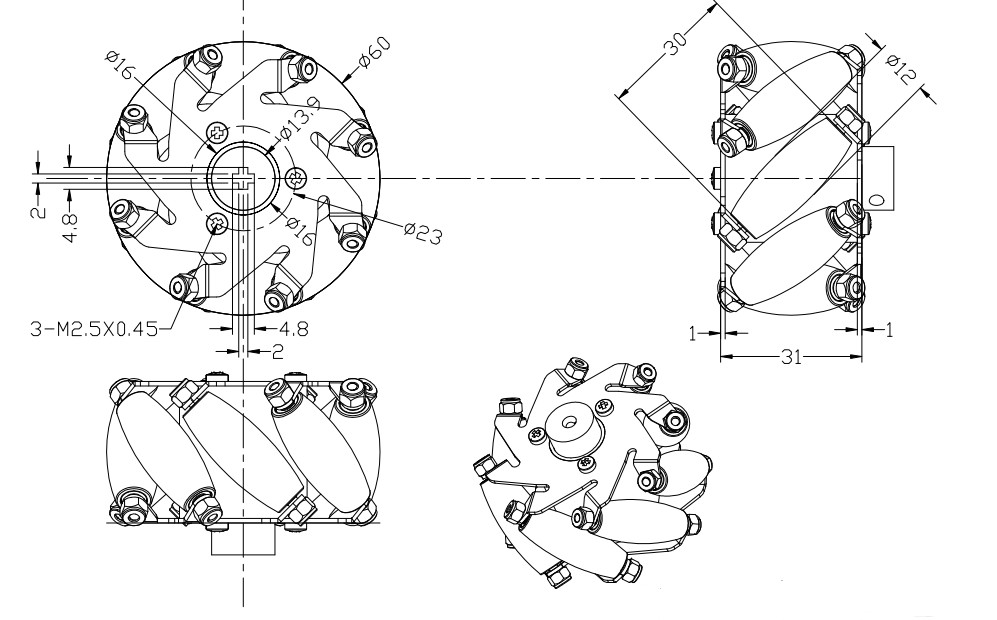

Specifications:
Wheel Diameter: 60mm
Wheel Width: 31mm
Number of Rollers per Wheel: 8
Roller Material: PP + PE
Roller Length: 30mm
Number of Plates: 2
Body Material: Aluminum Alloy
Net Weight: 86g x 4
Load Capacity: 10kg

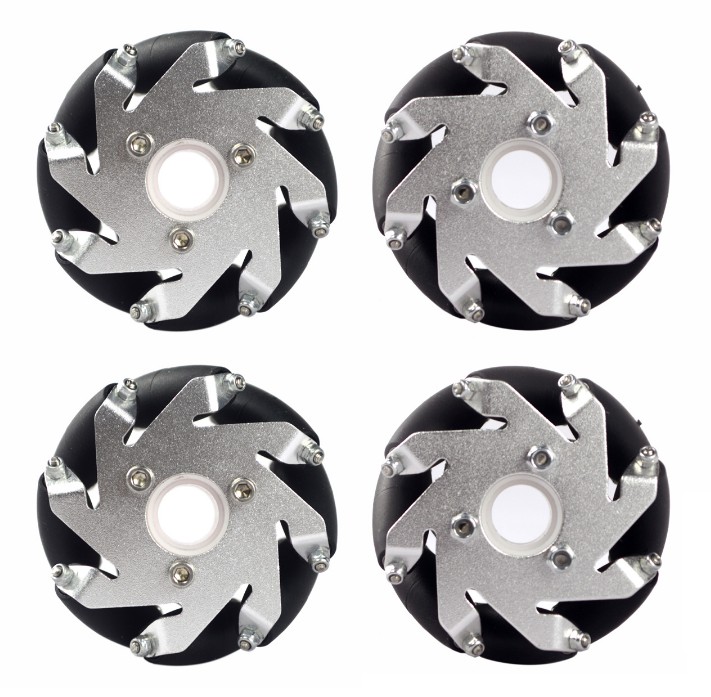

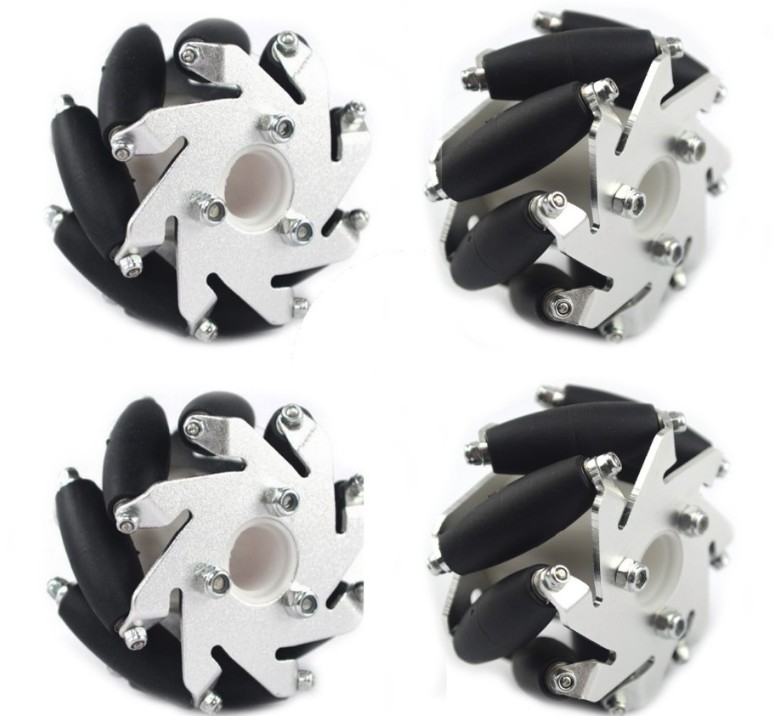

LEGO Durable 60mm Aluminum Mecanum Wheels Compatible with Arduino and NXT Hubs 14144 pictures as below:
What are the advantages and disadvantages of the mecanum wheel?
Much easier to climb ramps with Mecanums. To my understanding Mecanums are also more efficient in forward and reverse directions (like a normal wheel) while still giving you lateral mobility. Omni-Drives will give you true omnidirectional motion.
The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,
can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
Heavy duty mecanum wheels specifications from 100mm~508mm:
