Zoty Bearing- Series Hybrid Ceramic Bearings for Fishing Reels, RC Hobbies, Tools, Motors...
Orange Seals Ceramic Hybrid Bearing
| Steel Shields Ceramic Hybrid Bearing
|
Open Type Hybrid Ceramic Bearing
| Flanged Ceramic Hybrid Bearing
|
PEEK Cage Ceramic bearing
|
|
Stainless steel spool bearings kit hybrid ball bearings abec 7 ceramic bearings hybrid ceramic bearing features:
Model: S623C-2OS/ S623C-2RS
Size: 3x10x4mm
Material: AISI440C stainless steel rings+Si3N4 ceramic balls
Precision: ABEC-7/ ABEC-9 grade
Lube: Dry lube/ AF2 Oil
Sealed: Orange rubber seals/ZZ metal shields/ Open
Features: High speed, durable, long working life, low friction

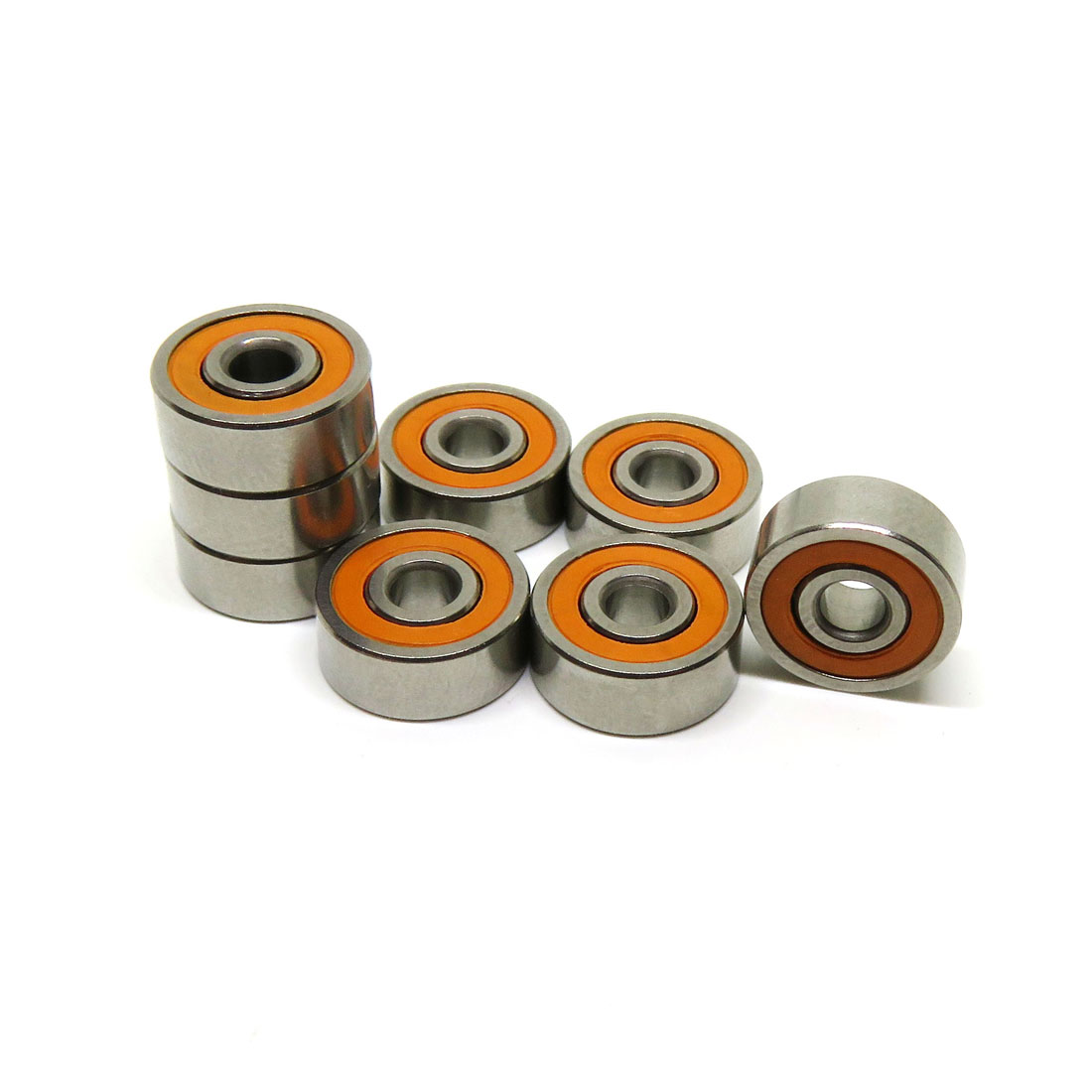

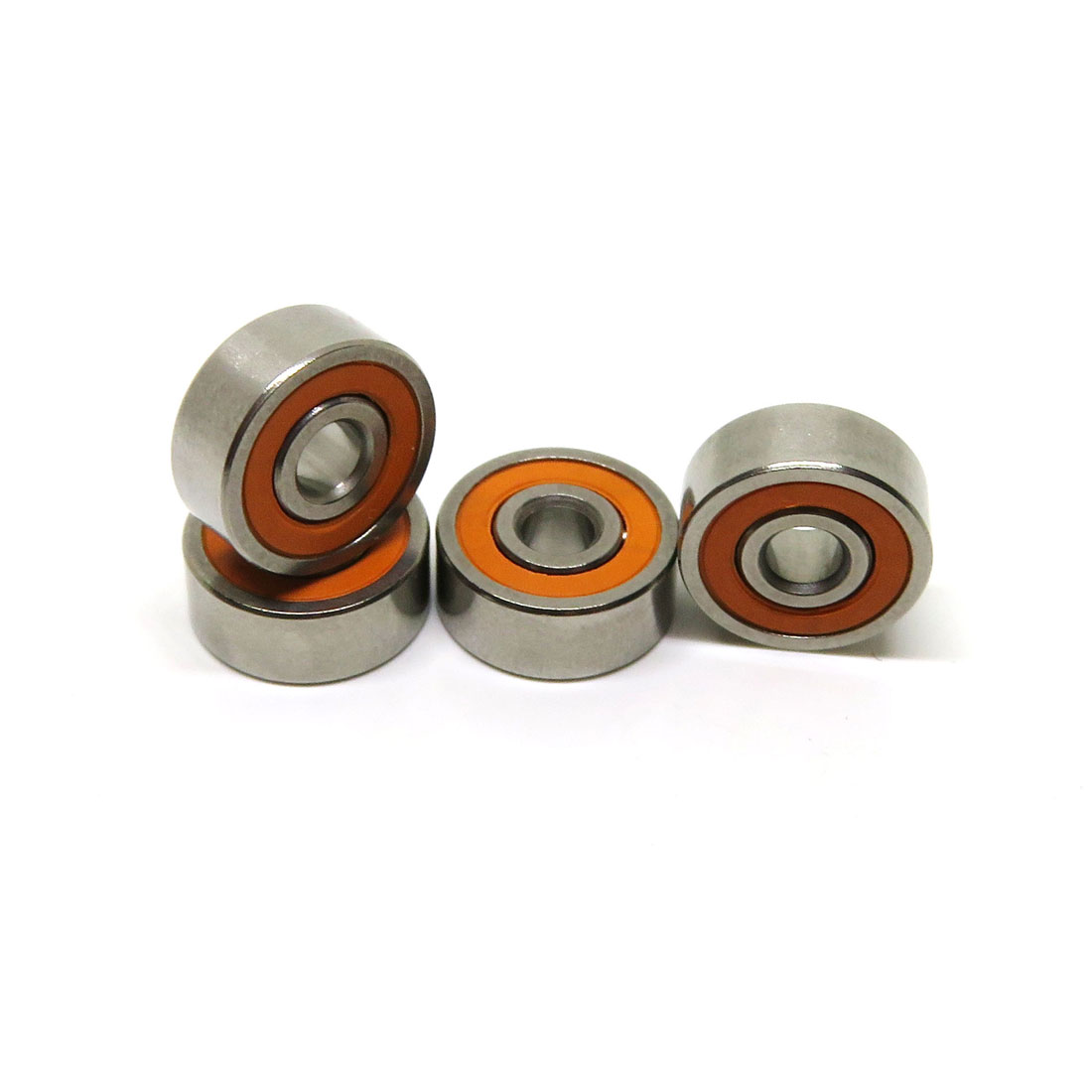

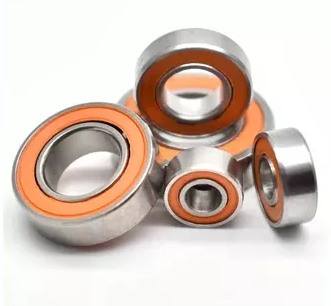

623 3x10x4mm Stainless spool bearings kit hybrid ball bearings abec 7 ceramic bearings for reels product pictures as below:
Ceramic hybrid bearing made from 440C stainless steel rings with silicon nitride( Si3N4) ceramic balls, hybrid bearings are heralded for their reduced rolling resistance, increased hardness and longevity.
Thanks for smaller runout and axial play, and hybrid bearing reduced friction, an ABEC 7 bearing will perform better and last longer in high speed applications, than an ABEC 3 and ABEC-5 rated bearing. So, if you need a high speed, high precision, long-lasting bearing, ABEC 7 ceramic bearing is probably your best choice.
Ceramic hybrid ball bearings have grown in popularity over the last few years and are now a common sighting in the professional peloton, high speed rc car, high end fishing reels, dental equipemnt...
Hybrid ceramic ball bearing popular sizes as following:
Ceramic Ball Bearing bore 2mm: 2x5x2mm, 2x5x2.5mm, 2x6x2.5mm, 2.5x6x...
Ceramic Ball Bearing bore 3mm: 3x6x2mm, 3x6x2.5mm, 3x7x3mm, 3x8x2.5mm, 3x8x3mm, 3x8x4mm, 3x10x4mm, 3x11x4mm
Ceramic Ball Bearing bore 4mm: 4x7x2mm 4x7x2.5mm, 4x8x2mm, 4x8x3mm,4x10x4mm, 4x11x4mm,4x13x5mm
Ceramic Ball Bearing bore 5mm: 5x8x2mm, 5x8x2.5mm, 5x9x3mm, 5x10x3mm, 5x10x4mm, 5x11x3mm, 5x11x4mm, 5x13x4mm
Ceramic Ball Bearing bore 6mm: 6x10x2.5mm, 6x10x2.5mm, 6x10x3mm, 6x12x4mm, 6x13x5mm, 6x15x5mm, 6x19x6mm
Ceramic Ball Bearing bore 7mm:7x11x3mm, 7x14x3.5mm, 7x14x5mm, 7x17x5mm
Ceramic Ball Bearing bore 8mm: 8x12x2.5mm, 8x12x3.5mm,8x14x4mm, 8x16x5mm
Ceramic Ball Bearing bore 9mm: 9x17x5mm, 9x20x5mm
Ceramic Ball Bearing bore 10mm: 10x15x4mm, 10x19x5mm, 10x20x5mm
Ceramic Ball Bearing bore 12mm: 12x18x4mm
Ceramic Ball Bearing bore 15mm: 15x21x5mm....
Inch/imperial sizes Ceramic ball bearing : SR2C-2OS 1/8" x 3/8" x 5/32, SR156C-2OS 3/16" x 5/16" x 1/8, SR166C-2OS 3/16 x 3/8 x 1/8, SR168C-2OS 1/4"x3/8"x1/8..
