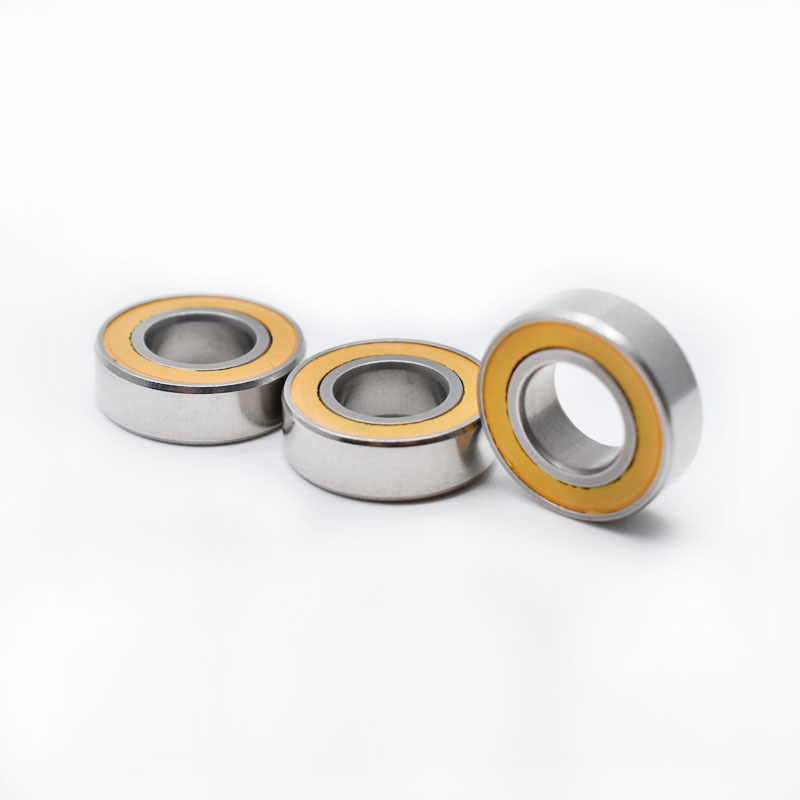

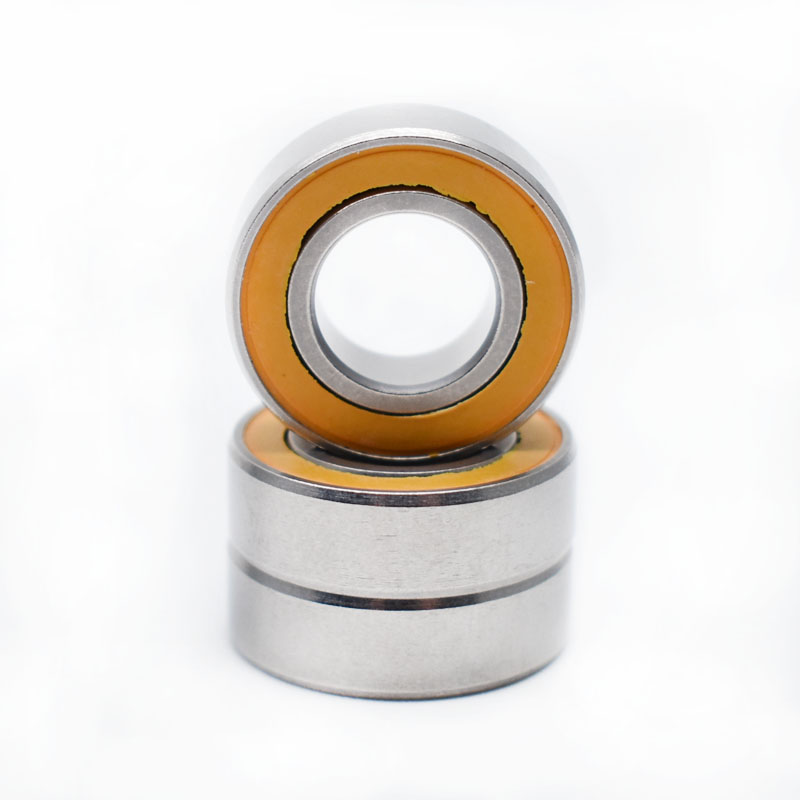

8x16x5mm SMR688C-2OS ceramic bearing for reel repair

8x16x5mm SMR688C-2OS ceramic bearing for reel repair

ABEC9 Si3n4 fishing rod reel hybrid ceramic ball bearing.jpgMiniature Bearings Hybrid Hybrid Motor Bearing Fly Reel Ceramic Hybrid Ball Bearing Hybrid Micro Bearing Hybrid Ceramic Bering.png

Zoty bearing payment term.jpg

Ceramic hybrid ball bearings for fishing reels.png

Zoty bearing logo service.jpg

Zoty bearing's cage option.png

Product Name8x16x5mm SMR688C-2OS ceramic bearing for reel repair
Model NoSMR688C-2OS
MaterialAISI440C stainless steel+Si3n4 ceramic balls
Sealed Type2RS rubber seals/ ZZ metal shields/Open
PrecisionP5, P6
ClearanceC0, C2, C3, C4
Used8x16x5mm SMR688C-2OS ceramic bearing for reel repair, widely use for all kinds of  Saltwater reels, Spinning Fishing ReelsBaitcast Reels, Fly reels,Hose Reel, Cord Reel & Cable Reel
Packing10pcs/tube+poly-bag+ carton
Shipping MethodBy Air, Sea, Train, Truck, or other DDP Service

Zoty bearing ceramic bearing sealed type.png

Zoty bearing factory one of advantage high grade hybrid ceramic bearing use for fishing reels, It perfect fit for famous brands like Okuma, Abu, Daiwa, Shimano...reels. whether you are a competitive or leisure fisherman, or do reel repair maintenance service, you have to know that the main purpose of ball bearings is to reduce friction, create ease of motion, and increase speed when fishing. Together, this essentially means that ball bearings make your fishing reel easier to use and more effective.

fishing reel hybrid ceramic bearing.jpg

With ceramic balls will be run in high speed,lube some light oil will reduce the noise, durable and easy to remaintance, orange seals is most common color, we do accept customised any color seals. Zoty bearing almost of sizes in stock no MOQ request, same day delivery.

Our highly polished stainless steel raw material construction with Si3N4 silicon nitride ceramic balls, and proprietary precision inner tolerances is combined with our 100% synthetic lightweight Made in China which is super slippery and bonds to the bearing surfaces resulting in a very fast spinning bearing and reel. Also very suitable for fishing reels and wet applications.Faster means you can cast your reel farther and quicker.The bottom linebuy a fishing reel with enough quality bearings that will perform well and be reliable; maintain it well…and go fishing.

8x16x5mm SMR688C-2OS ceramic bearing for reel repair

Si3N4 hybrid ball bearing

SMR688C-2OS 8x16x5mm bearing

hybrid ceramic bearings

8x16x5mm SMR688C-2OS ceramic bearing for reel repair.jpg8x16x5mm SMR688C-2OS ceramic bearing for reel repair.jpg

Hybrid Ceramic Bearing features:

1. AISI440C stainless steel rings

2. AISI304 stainless steel cage

3. Si3N4 ceramic balls

4. Dry lube/ AF2 Oil

5. Orange rubber seals/ZZ metal shields/ Open

6. High speed, durable, long working life

7. ABEC-7/ ABEC-9 grade

More about zoty ceramic hybrid bearing.jpg

Fishing reel ceramic bearing popular sizes as following:

Ball Bearing bore 2mm:  2x5x2mm, 2x5x2.5mm, 2x6x2.5mm, 2.5x6x...

Ball Bearing bore 3mm: 3x6x2mm, 3x6x2.5mm, 3x7x3mm, 3x8x2.5mm, 3x8x3mm, 3x8x4mm, 3x10x4mm, 3x11x4mm

Ball Bearing bore 4mm: 4x7x2mm 4x7x2.5mm, 4x8x2mm, 4x8x3mm,4x10x4mm, 4x11x4mm,4x13x5mm

Ball Bearing bore 5mm: 5x8x2mm, 5x8x2.5mm, 5x9x3mm, 5x10x3mm, 5x10x4mm, 5x11x3mm, 5x11x4mm, 5x13x4mm

Ball Bearing bore 6mm: 6x10x2.5mm, 6x10x2.5mm, 6x10x3mm, 6x12x4mm, 6x13x5mm, 6x15x5mm, 6x19x6mm

Ball Bearing bore 7mm:7x11x3mm, 7x14x3.5mm, 7x14x5mm, 7x17x5mm

Ball Bearing bore 8mm: 8x12x2.5mm, 8x12x3.5mm,8x14x4mm, 8x16x5mm

Ball Bearing bore 9mm:  9x17x5mm, 9x20x5mm

Ball Bearing bore 10mm: 10x15x4mm, 10x19x5mm, 10x20x5mm

Ball Bearing bore 12mm: 12x18x4mm

Ball Bearing bore 15mm: 15x21x5mm....

Inch/imperial sizes  ball bearing : SR2C-2OS 1/8" x 3/8" x 5/32, SR156C-2OS 3/16" x 5/16" x 1/8, SR166C-2OS 3/16 x 3/8 x 1/8, SR168C-2OS 1/4"x3/8"x1/8..

zoty bearing micro hybrid ceramic bearing specifications.jpg

zoty bearing hybrid ceramic bearing large size specifications.jpg

 Learn zoty how to replace the fishing reel bearings.jpg
