|Carbon steel rings with chrome steel needles|
|outboard engines, power tools, copiers, fax machines, paper moving equipment and appliances...Transmissions, transfer cases, engines, valve trains, steering and breaking system, axle supports,|

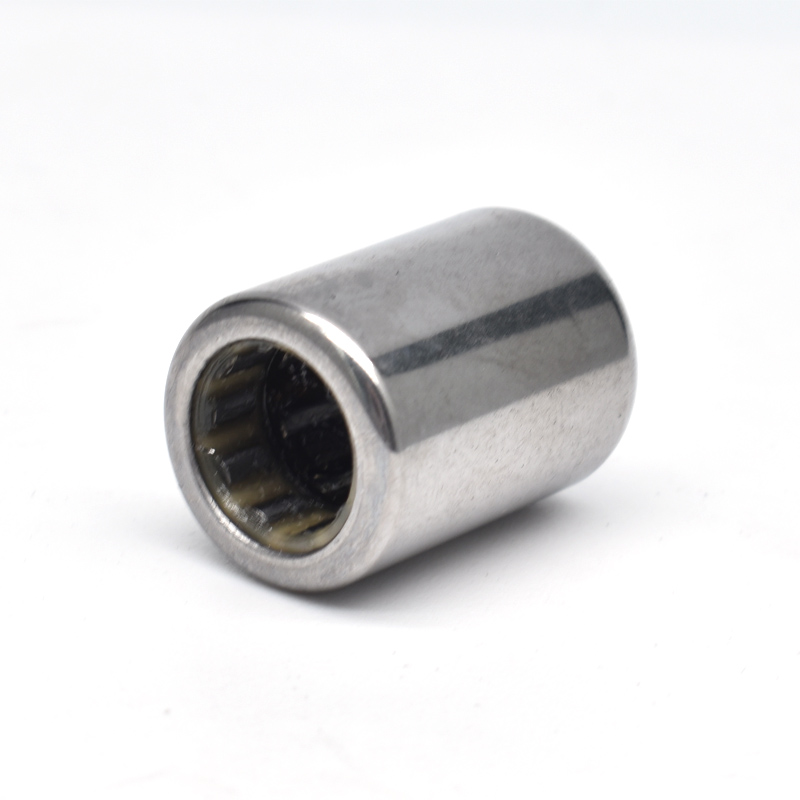

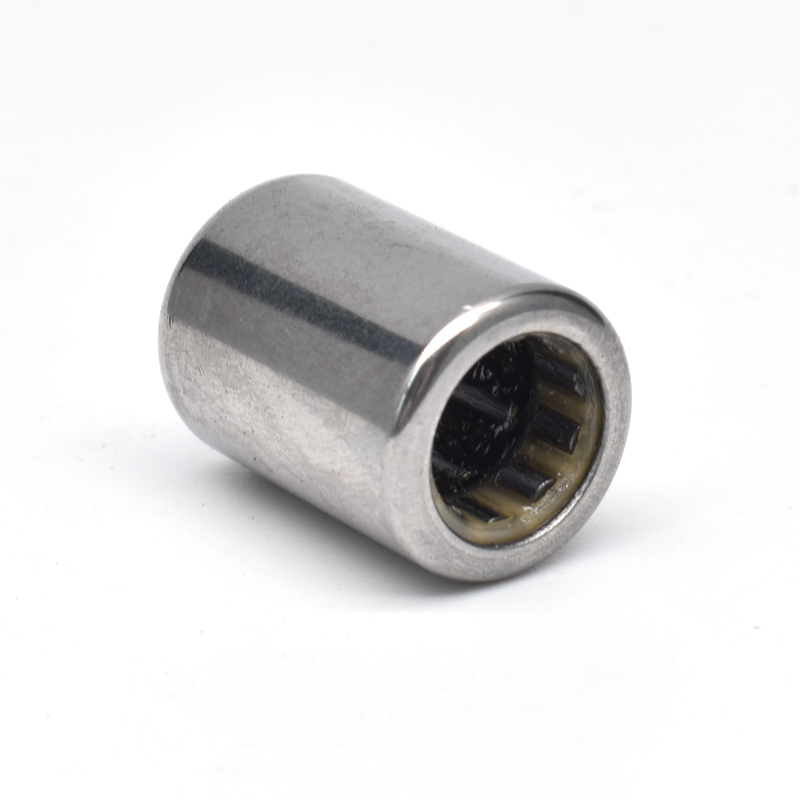

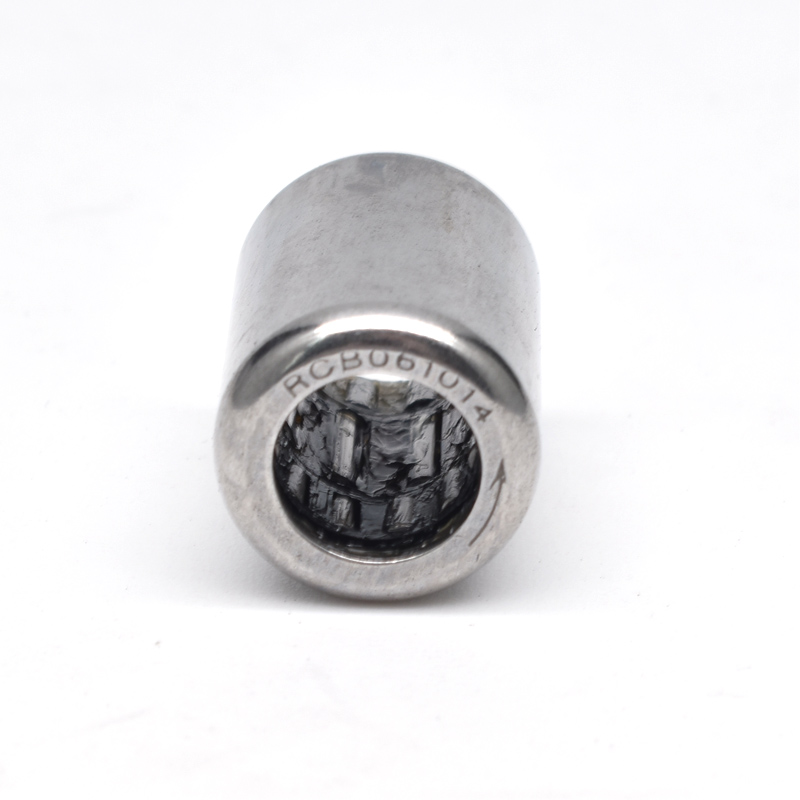

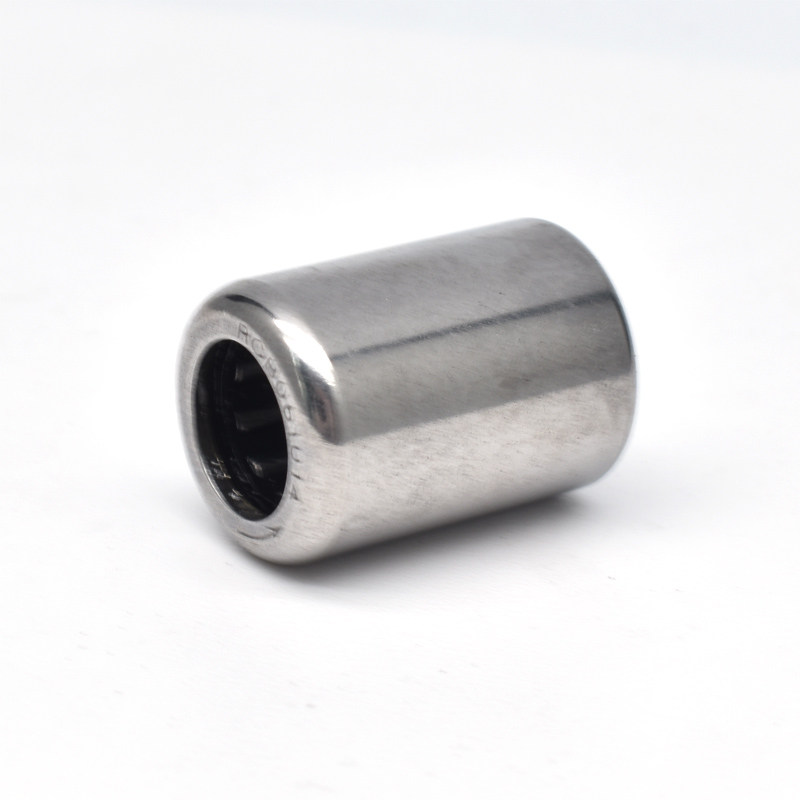

RCB061014 One Way Needle Bearing/Clutch 3/8 x 5/8 x 7/8 inch drawn cup roller clutch and bearing
RCB series needle bearing, RCB061014 One Way Needle Bearing/Clutch 3/8 x 5/8 x 7/8 inch drawn cup roller clutch and bearing One Way Needle Bearing Clutch Bearing RCB 061014, Miniature Inch Needle Clutch Bearings inner bore 3/8 inch, length 5/8 inch, thickness 7/8 inch, Inner 9.525diam. mm, Outer diam. 22.225mm, Width 15.875mm. it made of carbon steel rings with chrome steel needles , this list OWC612GXLZwidely use for rolling systems, all kinds of Transmissions, transfer cases, engines, valve trains, steering and breaking system, axle supports, outboard engines, power tools, copiers, fax machines, paper moving equipment and appliances...This RCB061014drawn cup roller clutch with a plastic cage transmits torque between the shaft and housing in one direction
Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.
High radial load carrying capacity, High stiffness, Very low cross-sectional height. Drawn cup needle roller bearings support radial loads and reduce friction between rotating components,with a drawn outer shell serving as a raceway for the rollers. The low cross section of drawn cup bearing provides high load‐carrying capacity with minimum required space. Drawn cup bearings are easily installed with a press fit in the housing.
HF-KFR series one way needle bearing with outer ring knurled model from HF0308KFR, HF0406KFR, HF0409KFR,HF0612KFR,HF0812KFR,HF1012KFR,HF1216KFR,HF1416KFR,HF1616KFR,HF1816KFR,HF2016KFR,HF2520KFR....
HF series one way needle bearing model from HF0406, HF0409,HF0612,HF0812,HF1012,HF1216,HF1416,HF1616,HF1816,HF2016,HF2520,HF3020,HF3520,HF3530..
HK series one way needle bearing HK0306,HK0408,HK0509,HK0608,HK0609,HK0709,HK0808,HK0810,HK0908,HK0910,HK0912,HK1010,HK1012,HK1015,HK1210,HK1212,HK1312,HK1412,HK1512,HK1516,HK1516,HK1612,HK1616,HK1712,HK1812,
TYPES: Caged Type ‐ HK/BK/SCE/BCE, Full Complement Type ‐ F/FH/MF/MFH/B/BH/M‐1/MH‐1
