45 degree ZOTYLR-65 conveyor transfer 65mm Polyurethane mecanum wheel for Conveyor System


Specifications:

One Set: Including 1pcs right, 1pcs left wheel

Outer Diameter: 65mm

Inner Diameter:  14mm hex bore

Wheel Width: 50mm

Wheel Color: Black

Material: Polyurethane

Net weight: 0.102kg

Payload: 25kg

45 degree movement and direction


 65mm Polyurethane mecanum wheel for Conveyor System as below:

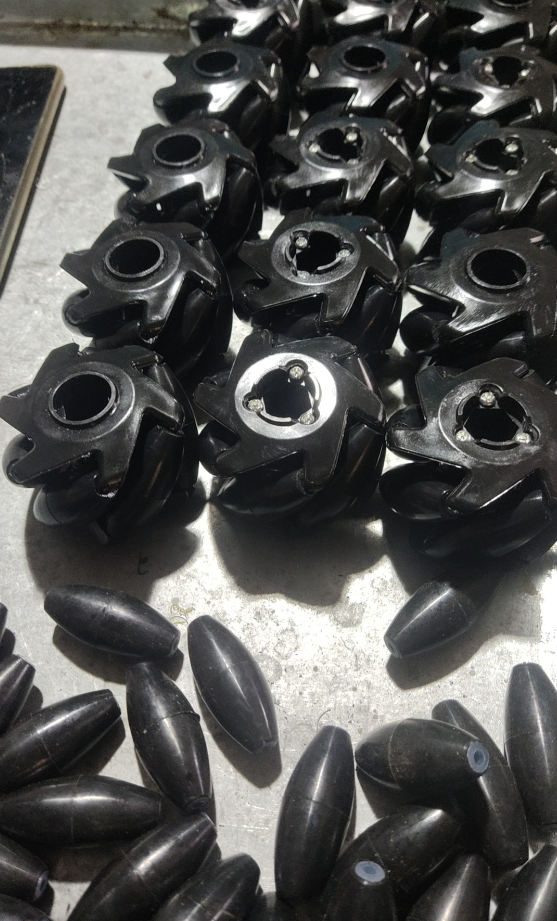

 65mm Polyurethane mecanum wheel for Conveyor System.png 65mm Polyurethane mecanum wheel for Conveyor System.png

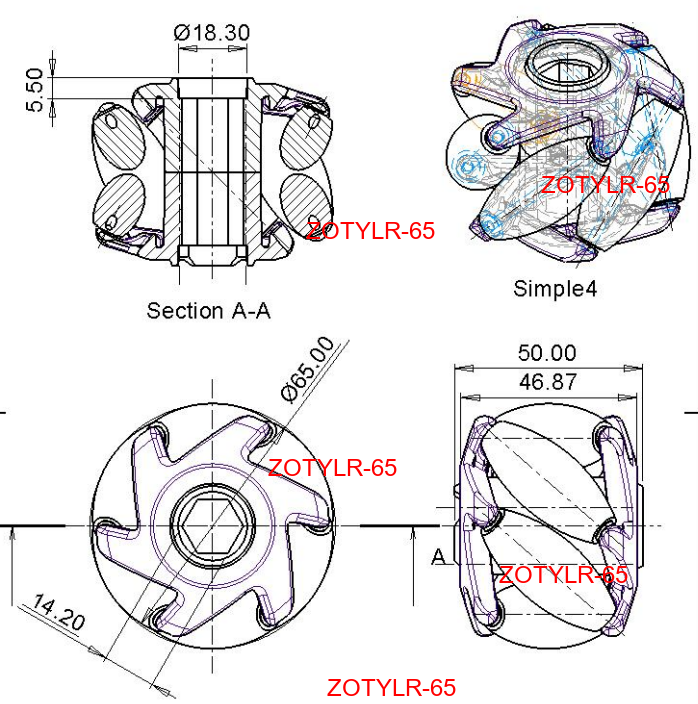

 65mm Polyurethane mecanum wheel for Conveyor System drawing.png


What are the advantages of the polyurethane mecanum wheel?

The Mecanum wheel is a conventional wheel with a series of small single rollers attached to its circumference. These rollers typically each have an axis of rotation at 45° degree movement and directionto the plane of the wheel and at 45° to a line through the centre of the roller parallel to the axis of rotation of the wheel. By alternating wheels with left and right-handed rollers, in such a way that each wheel applies force roughly at right angles to the wheelbase diagonal the wheel is on, the vehicle is stable and can be made to move in any direction and turn by varying the speed and direction of rotation of each wheel. 2pcs mecanum wheels as a set, 1pcs right wheel and 1pcs left wheel.

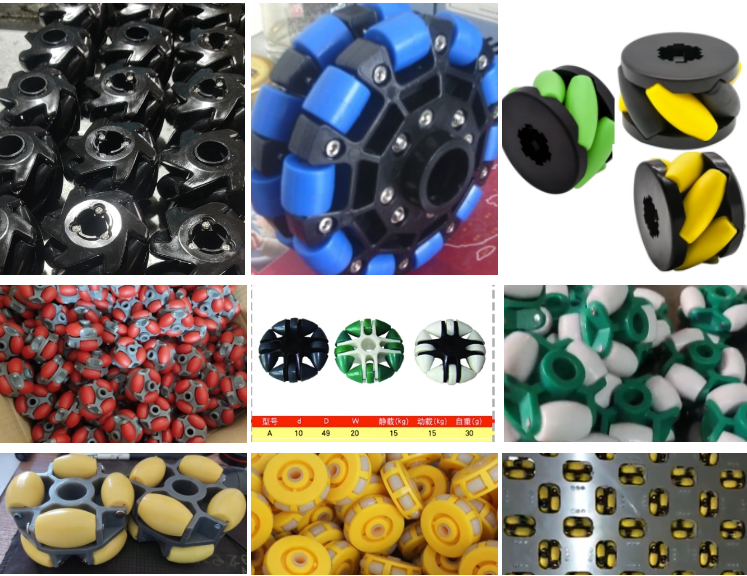

Polyurethane mecanum wheel for Conveyor System.png The Cheapest Plastic Omni wheels and Mecanum wheels Use for Automated Sorting Machines, Conveyor System, Caster, Heavy Luggage...

where the omni wheel and mecanum wheel use for?.png


Zoty Heavy Duty Mecanum Wheels( AGV, Forklift, Workshop....)

Mecanum wheels with a series of rollers connected to their circumference, these rollers have a rotational axis at 45 ° to the plane of the wheel in an airplane parallel to

the axis of rotation of the mecanum wheel. Depending on each individual wheel direction and speed, what results combination of all these forces produce a full vector force

 in any desired direction.

Especially in storage andlogistics, can improve efficiency and promote the development of the industry. Mecanum wheel would have a huge technological revolution.

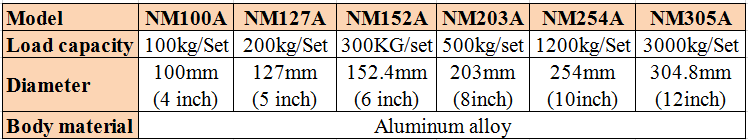

heavy duty mecanum wheel specifications.png

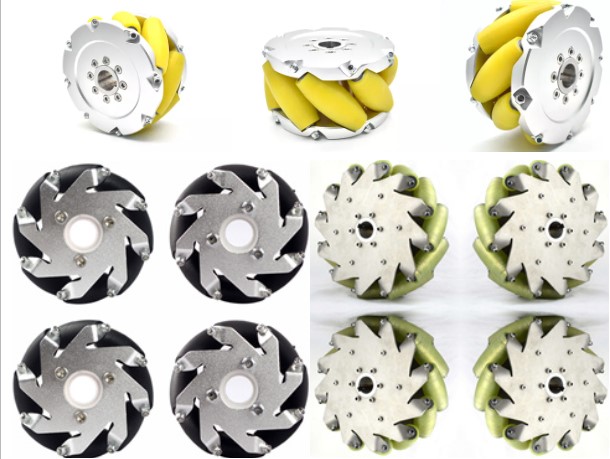

heavy duty mecanum wheels.jpg

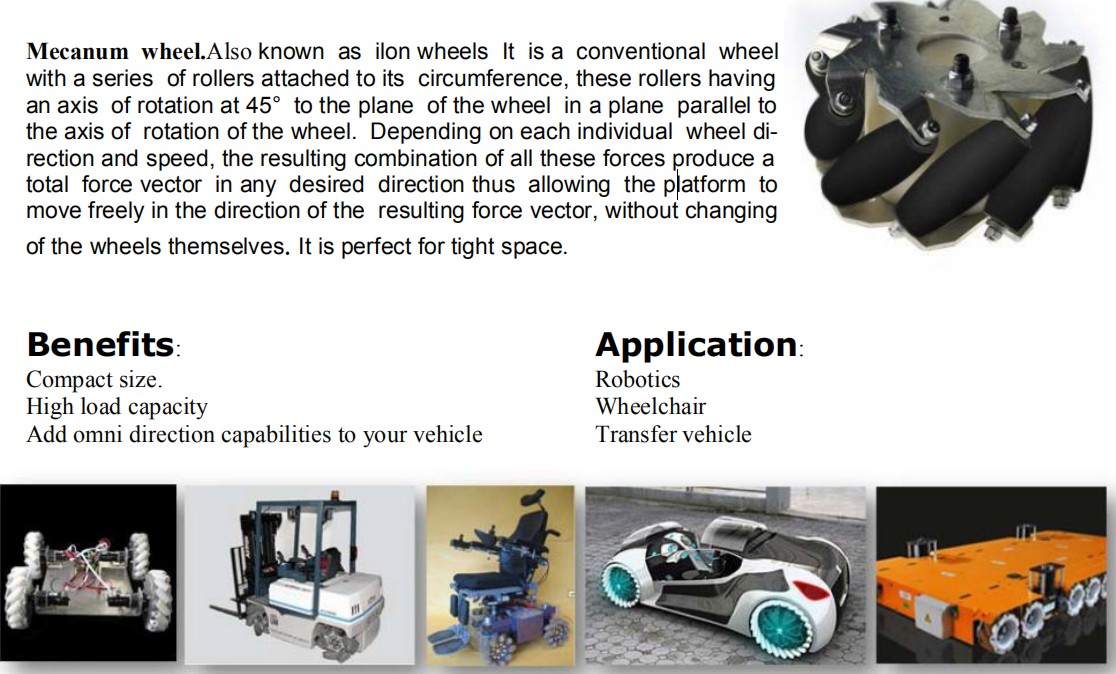

mecanum wheel application.jpg

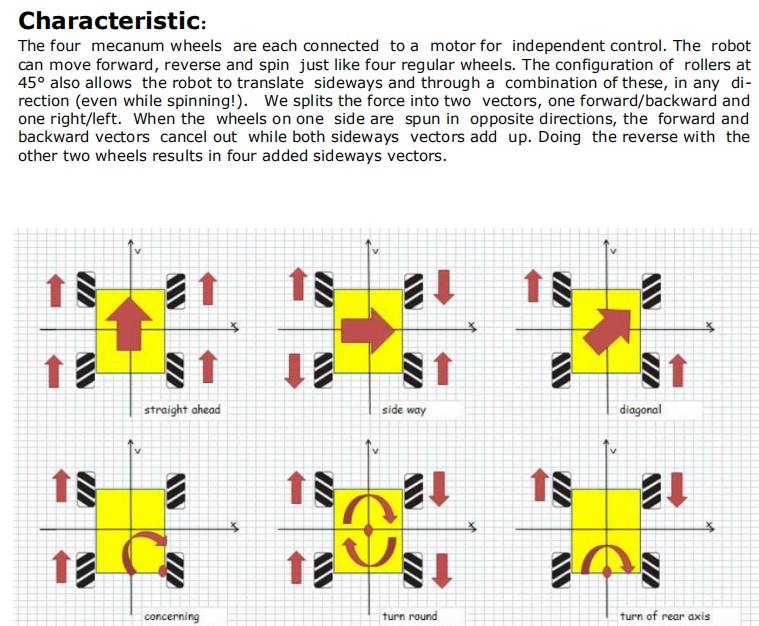

Mecanum wheels characteristic.jpg
