ZOTY Bearings : PU, POM and Nylon Guide Rollers for Conveyor and Packaging Equipment
Industrial component sourcing
For equipment OEMs and maintenance buyers specifying guide or idler rollers with built-in bearings.
Request a model review & quotationPlastic and PU roller options. Material, dimensions, load and suitability are confirmed against your drawing and operating conditions.
Define your application
Belt guidance — Confirm belt contact, profile and required guide clearance
Idler or support roller — Confirm rolling load, speed, bearing arrangement and contact material
Replacement or new equipment — Match the existing dimensions or provide an assembly drawing
The reference model is not a guaranteed fit for every conveyor. Coating material, hardness and operating conditions require confirmation.
Materials, structure and installation
The references shown span 6–20 mm bore, 28–80 mm outside diameter and 6–36 mm width. These endpoints describe the selected models; they do not mean every size combination is available.

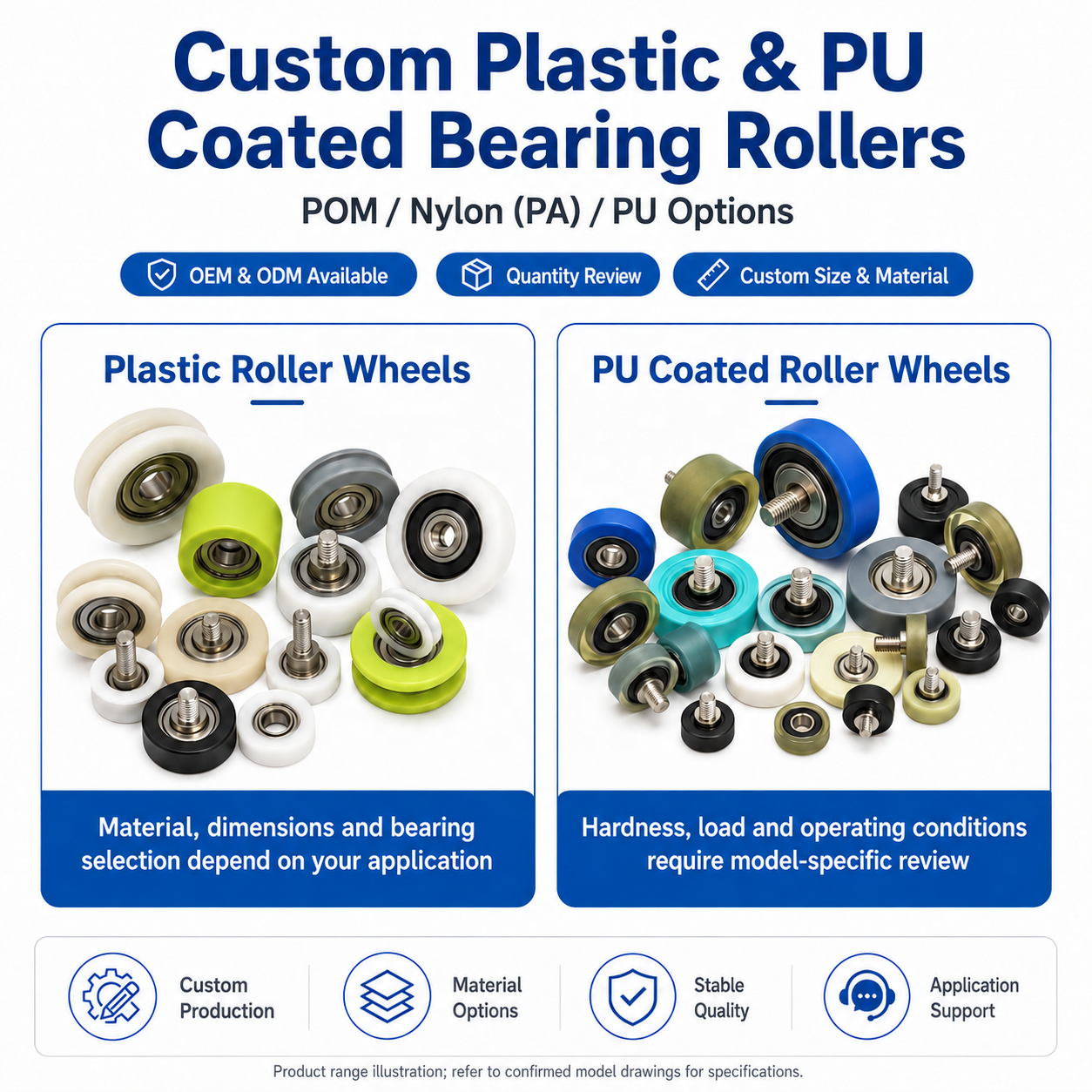

PU references use coated GCr15 chrome-steel bearings. BS62628-6 is specified as POM in its technical description. Nylon is listed among our roller material options, but its exact model and material grade must be confirmed from your drawing; no Nylon dimensions or rating are assumed from a mixed POM/Nylon title.
Match the bore to your axle and confirm retention, clearance, alignment and wheel contact. Screw-bolt, groove or dual-bearing profiles require a matched drawing and a confirmed model.
Customization and limits
Send your required diameter, width, bore and mounting drawing. For screw-mounted rollers, include thread specification and length. Options shown require feasibility review.

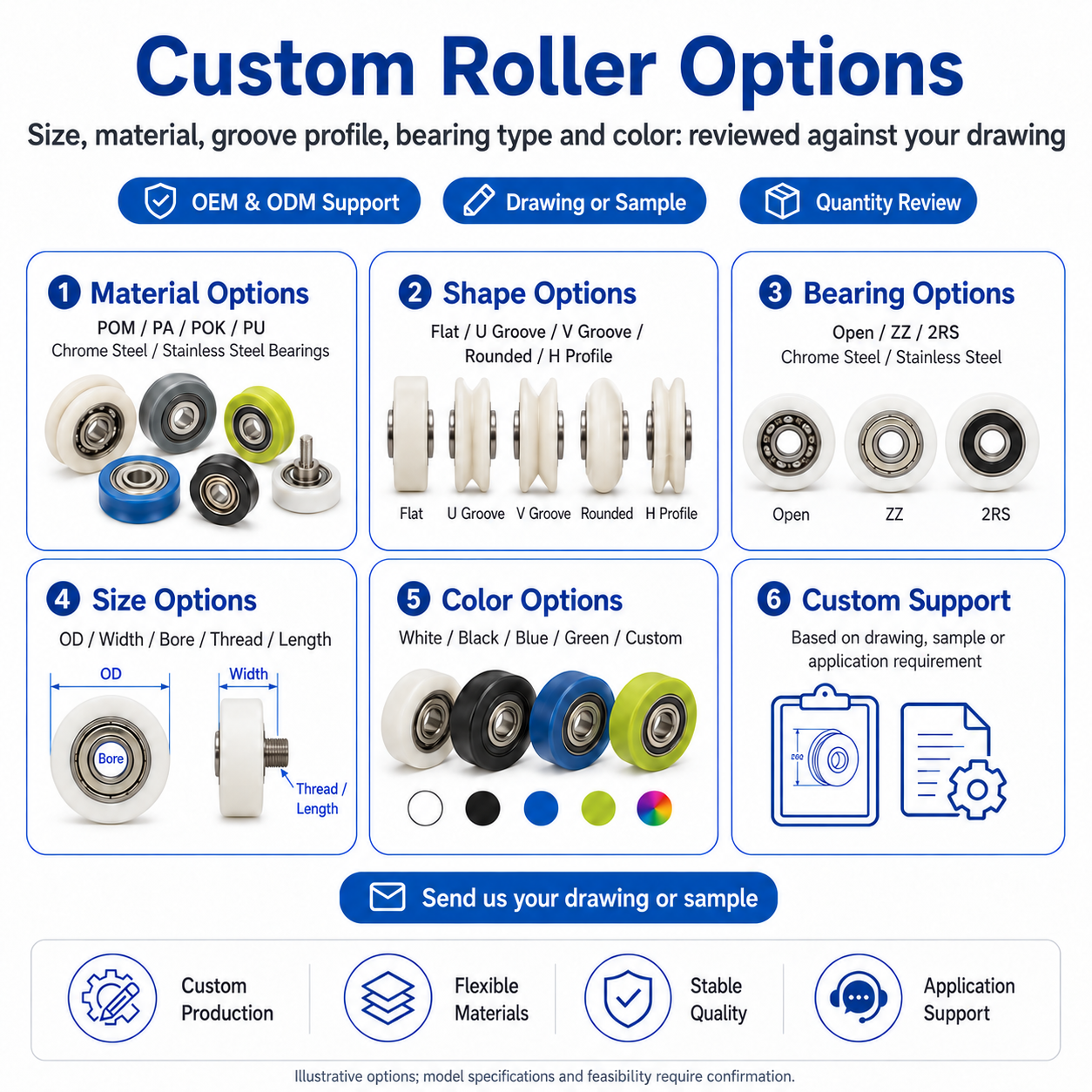

Our existing roller range supports drawing-based review of size, color, hardness, wheel profile, groove and bearing choices. The PU models shown publish 85 and 95 Shore A respectively; other material or hardness requests need confirmation.
No load, line-speed, temperature or service-life rating is assigned to these rollers on this page. Send your operating conditions and drawing for review. This selection concerns roller/bearing components; a complete machine or installation assembly is not implied.
What to send for a quotation
Inner diameter, outer diameter and width, with tolerances
Contact material, wheel profile and mounting drawing
Load, line speed, temperature and cleaning conditions
Required quantity, replacement model or sample dimensions
Use the quotation form and include your application, dimensions and quantity in Detail Content. If a drawing is required, our team can arrange the next step.
