100kg Payload Omni Blue Color ZOTY2LH-125 Double Row Industrial 125mm Nylon Omni Wheel For Wheelchair


Specifications:

Specifications:

Outer Diameter: 125mm

Inner Diameter: 20mm, 25mm round bore for selection

Wheel Width: 75mm

Number of Rollers: 10pcs*2

Material: Nylon

Wheel Color: Blue/ Yellow

Load capacity: 100kg

Net Weight: 0.57kg

Row: Double row

Can move in any direction

360 degree movement and direction


Omni-Directional wheels roll forward like normal wheels, but slide sideways with almost no friction (no skidding during turns).Use these wheels to make your robot turn smoothly or build a holonomic drivetrain.

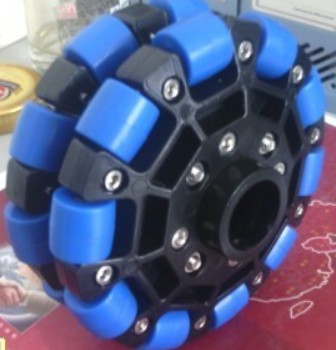

125mm Nylon Omni Wheel For Wheelchair features pictures as below:

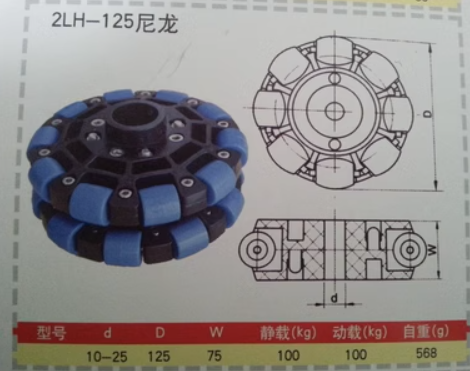

 125mm Nylon Omni Wheel For Wheelchair.jpg2LH-125轴 (2).jpg

 125mm Nylon Omni Wheel For Wheelchair.jpg

What are the advantages of the plastic Omni wheel?

Omni wheels (omniwheel) combines the freedom of 360 degree movement with the stability of a fixed mounting. This is achieved through a design which uses integral rollers rather than a swivel mount. An ideal improvement on traditional swivel casters. Omni wheels delivers improved, reliable performance for a wide range of material handling, conveyor, OEM, robotic and other applications requiring precision omni-directional maneuverability over other solutions.Most omni wheels are sturdy, impact and chemical resistant, and made from molded polymers allowing the design of entirely new multi-directional movement solutions at a consumer, commercial and industrial level.

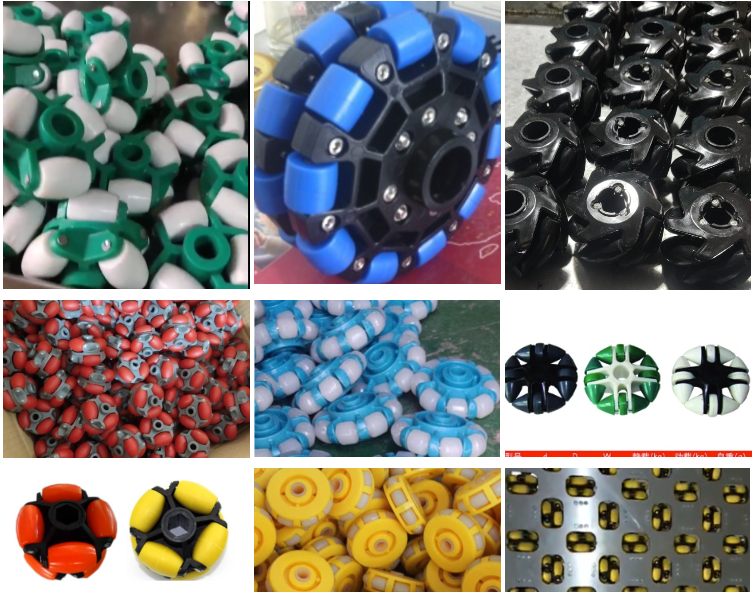

plastic omni wheels for sorting machines.png * 360°/90° manoeuvrability - without turning or swiveling wheels * Better directional control and tracking * Precise positioning - without swivel offset correction * Minimal wheel space/housing requirements * Simple mounting - able to tilt or lever off the fixed wheel mounting * Non marking polyurethane rollers/ Nylon rollers * Load stability - a static center of load relative to wheel base * Load distribution - the ability to use multiple wheels without swivel offset resistance * Robust - wheel frame and roller axles provide a web-like structure with over-moulded rollers * Tough and rust free - full polymer construction with no steel pins

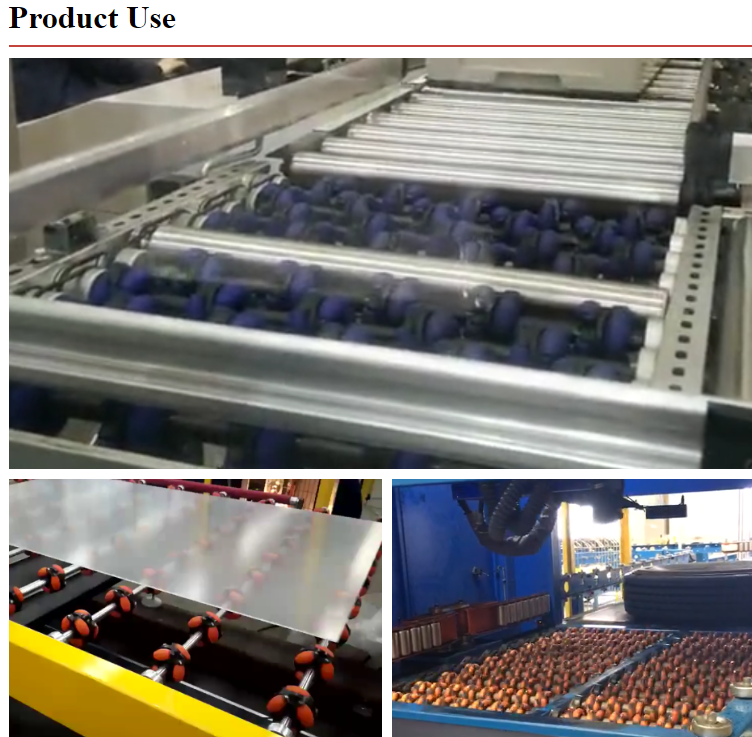

where the omni wheel use for?.png


Zoty Heavy Duty Aluminum Omni Directional Wheels

omni wheel size.jpg

omni wheel benefits and application.jpg

omni wheel technical data.jpg
