You are here » SF8-14M 440C Stainless Steel Axial Thrust Ball Bearing 8x14x4mm SS-F8-14M

ZOTY Bearings : SF8-14M 440C Stainless Steel Axial Thrust Ball Bearing 8x14x4mm SS-F8-14M


Product Description

Product NameSF8-14M 440C Stainless Steel Axial Thrust Ball Bearing 8x14x4mm SS-F8-14M
BrandNeutral
Model NoSF8-14M
Sizes(mm)8x14x4mm
MaterialAISI440C stainless steel washers+ 304 stainless steel cage
Sealed TypeOpen
PrecisionP0, P6, P5
GradeABEC-1
UsedSF8-14M 440C Stainless Steel Axial Thrust Ball Bearing 8x14x4mm SS-F8-14M
PackingIndividual plastic bag
Shipping MethodBy air or by sea

Detailed Images

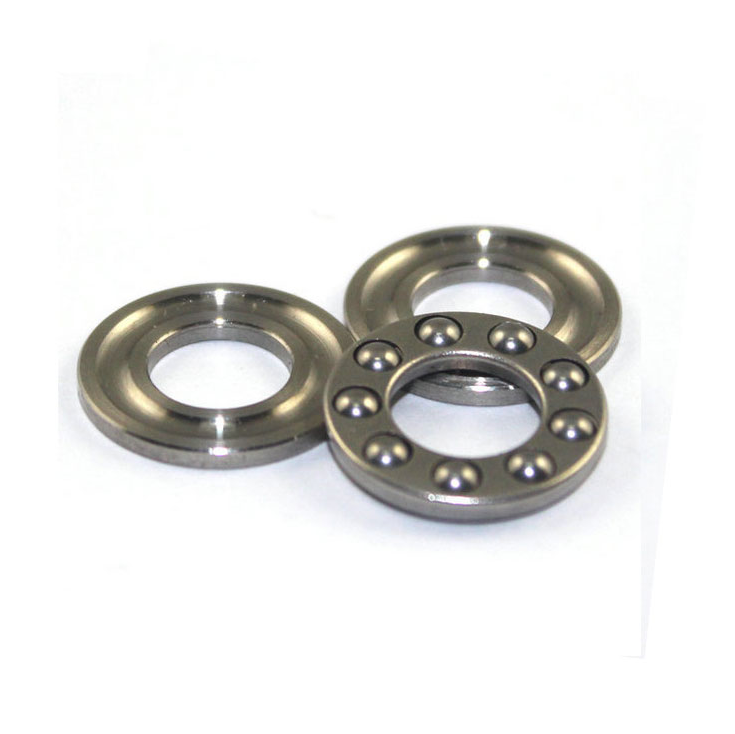

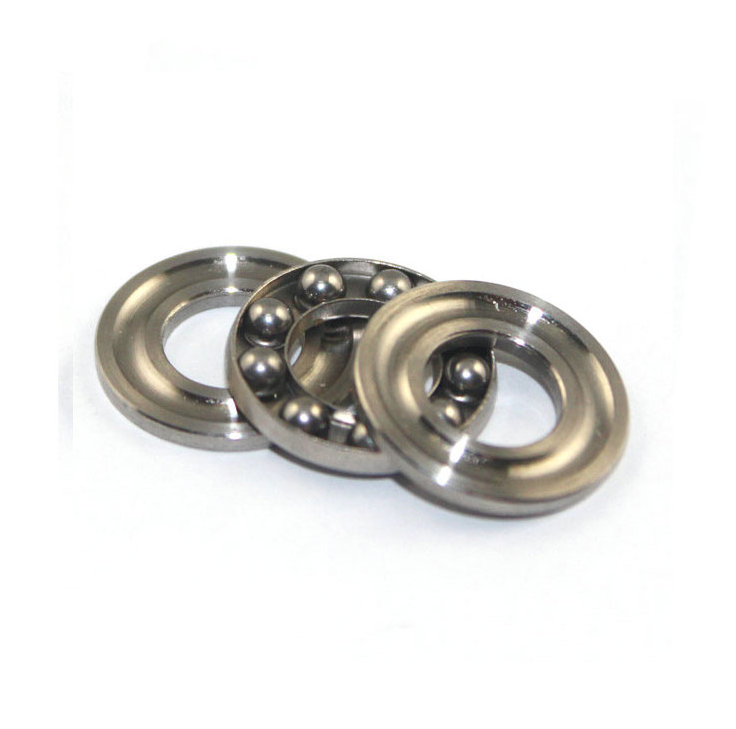

SF8-14M stainless steel thrust bearing.pngstainless steel thrust ball bearing SF8-14M.png

SF8-14M 440C Stainless Steel Axial Thrust Ball Bearing 8x14x4mm SS-F8-14M

Item: SF8-14M

Type:  Stainless steel thrust bearing

Washer Material: SUS/AISI 440C Stainless Steel

Cage Material: 304 stainless steel

Lubrication: Dry/ Oil

Size: 8x14x4mm

Inner Diameter: 8mm

Outer Diameter: 14mm

Width: 4mm


The F Metric Stainless Steel Thrust Ball Bearing Series is a high precision line of miniature thrust ball bearings that can accommodate axial loads in a single direction. The bearings in this series are designed with flat raceways and are suitable for applications with smaller load and speed requirements than that of the FM miniature thrust bearing series.


These bearings are available with bore sizes as small as 2mm (0.0787 inches) and as large as 10mm (0.3937 inches), and with the race ODs ranging from 6mm (0.2362 inches) to 18mm (0.7087 inches). popular model SF8-14M, SF9-20M, SF8-19M, SF10-18M, SF8-16M... thrust bearings

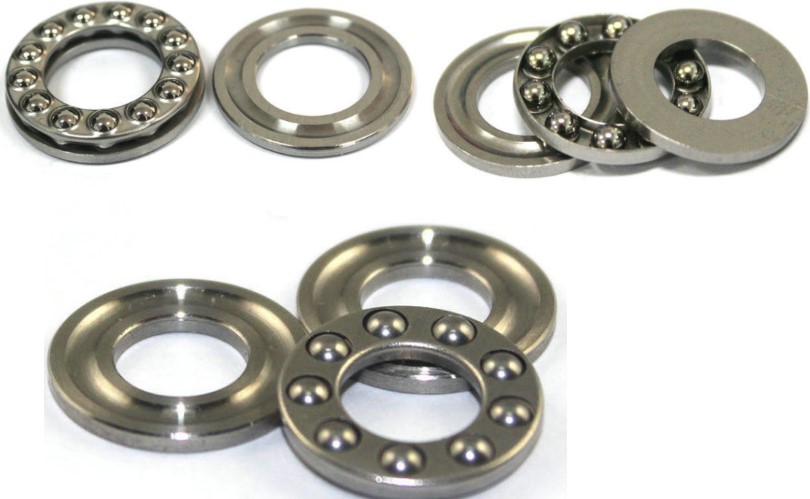

ZOTY- stainless steel thrust bearing.jpg

Thrust bearing washers made of AISI 440C stainless steel bearings, cage is 304 stainless steel material resist corrosion. It is an axial bearing that permits rotation between parts. Thrust bearings support the axial thrust of both horizontal and vertical shafts.


Related Product:

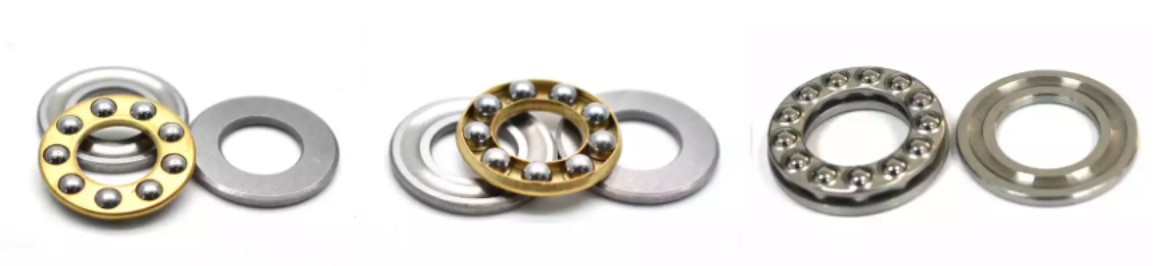

F series thrust ball bearing.jpg

These bearings are typically manufactured with SAE 52100 chrome steel washers, cage can be use brass/cooper material, or 304 stainless steel material.
