| Product Name | 16002 16002RS 16002-2RS 15x32x8mm Single row deep groove ball bearing |
| Brand | Neutral/ No brand |
| Model No | 16002RS |
| Sizes(mm) | 15x32x8mm bearing |
| Material | Chrome steel, 52100 bearing steel/ 100Cr6 |
| Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
| Precision | P0, P6/ ABEC-1, ABEC-3 |
| Used | 16002 16002RS 16002-2RS 15x32x8mm Single row deep groove ball bearing of rolling spplication, tools, machines, furniture, printer machines, money machins, home appliance, cabinet, sliding doors, windows.... |
| Packing | 10pcs/tube+ carton |
| Shipping Method | By Air, Sea, Train, Truck, or other DDP Service |

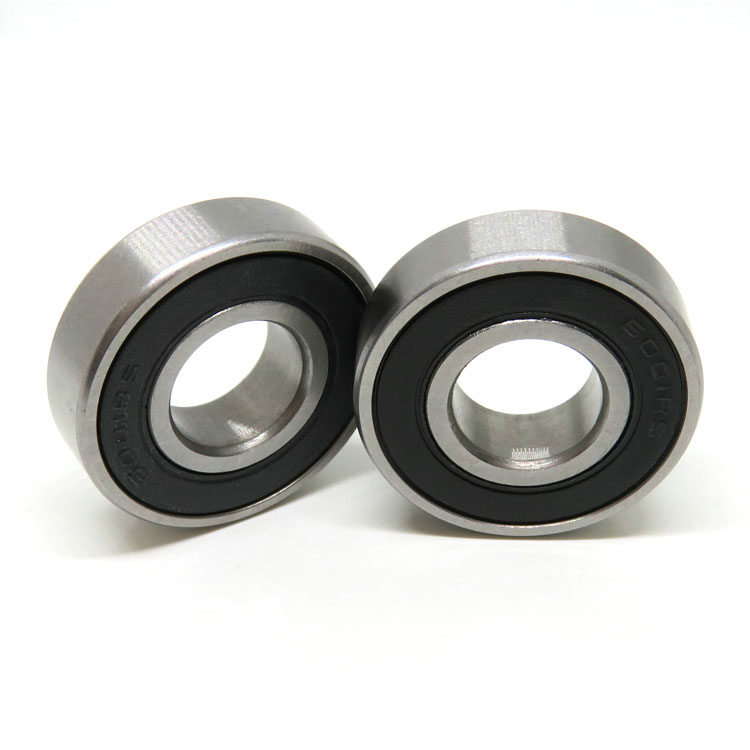

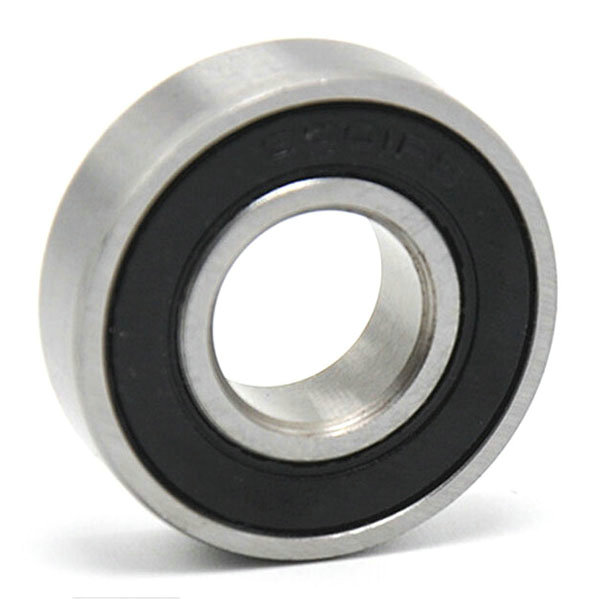

16002 16002RS 16002-2RS 15x32x8mm Single row deep groove ball bearing
16002RS Rubber seal on both sides, help to save grease and effectively protect grease from Impurities; Smooth rotation with low vibration, durable in use. Low noise,High speed,High temperature resistance,Resistance to high load.
16002 2RS Bearing Made of high quality chrome steel with double rubber seal, pre-lubricated/greased from the manufacturer, low friction coefficient and stable performance.
16002-2RS Ball Bearing Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment, and so on.
Single row deep Groove Ball Bearings offer multiple options that serve a wide range of applications. The 'groove' is the depth of the raceway into which the balls fit, they typically consist of an Inner Ring, Outer Ring, Balls and Cage. Variants are available with Steel Shields, Rubber Seals (Contact/Non-Contact type), Snap-ring Grooves with Snap-rings, and a variety of Cage types.
These Bearings are designed for radial, axial, and also composite load applications, purpose of deep groove precision ball bearings is to reduce rotational friction and support radial and axial loads.Deep Groove Ball Bearings offer:
·Uni or bi-directional load carrying capability
·Very high-speed rotation
·Very good running accuracy
·Low noise and low friction torque

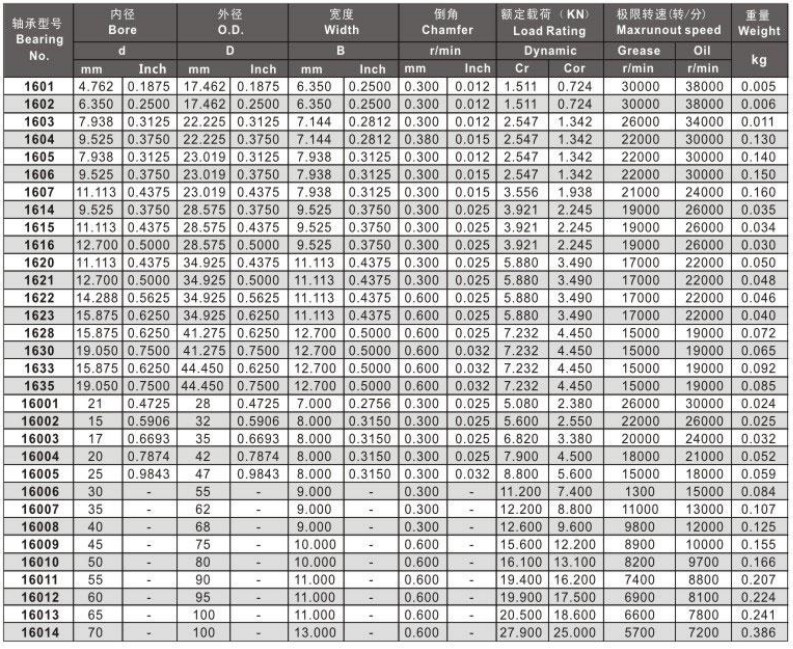

16002 bearing dimensions and axial-space checks
The published 16002 product has metric dimensions: 15 mm bore x 32 mm outside diameter x 8 mm width. The listed material is chrome bearing steel. Check all three dimensions against the assembly drawing rather than approving a replacement from the outside diameter alone.
Specify the required sealing arrangement
The available model references include open, RS and 2RS configurations. RS specifies a rubber seal on one side; 2RS specifies rubber seals on both sides. Put the complete bearing designation and required closure on the quotation request. Include a drawing or clear photographs showing both faces, and confirm the lubricant before sample approval.
OEM and distributor batch requirements
For a quotation, provide quantity, shaft and housing fits, the available 8 mm axial space, clearance, operating speed, load and temperature. State lubricant, marking, inspection and packing requirements where applicable. A different width or material must be reviewed as a separate specification.
Request a 16002 bearing quotation or email admin@zotybearing.com with the drawing and delivery destination. Sample approval, minimum order and lead time are confirmed for the actual order.
Related product selection: deep groove ball bearings. Ask for the matching 16002 drawing before ordering a replacement batch.
