| Product Name | Sealed 16006-2RS 16006RS 16006 30x55x9 mm Deep Groove Ball Bearing |
| Brand | Neutral/ No brand |
| Model No | 16006RS |
| Sizes(mm) | 30x55x9mm bearing |
| Material | Chrome steel, 52100 bearing steel/ 100Cr6 |
| Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
| Precision | P0, P6/ ABEC-1, ABEC-3 |
| Used | Sealed 16006-2RS 16006RS 16006 30x55x9 mm Deep Groove Ball Bearing of rolling spplication, tools, machines, furniture, printer machines, money machins, home appliance, cabinet, sliding doors, windows.... |
| Packing | 10pcs/tube+ carton |
| Shipping Method | By Air, Sea, Train, Truck, or other DDP Service |

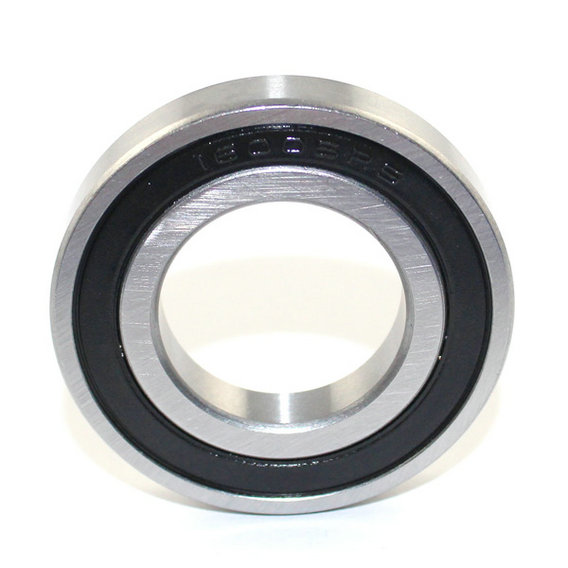

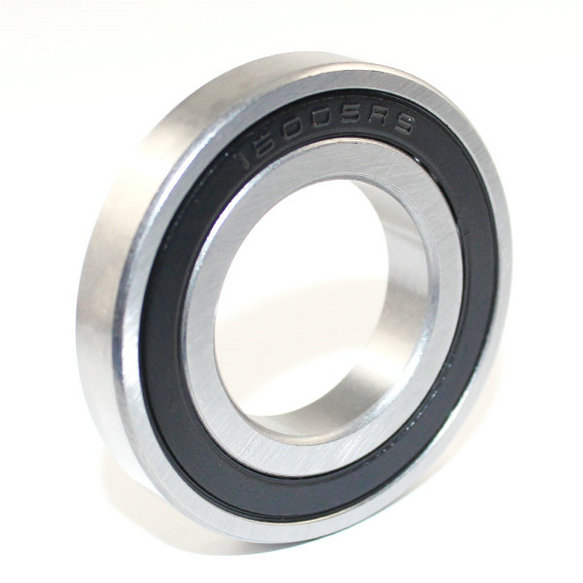

Sealed 16006-2RS 16006RS 16006 30x55x9 mm Deep Groove Ball Bearing
16006RS Rubber seal on one side for RS, or rubber seals on both sides for 2RS, help to save grease and effectively protect grease from Impurities; Smooth rotation with low vibration, durable in use. Low noise,High speed,High temperature resistance,Resistance to high load.
16006 2RS Bearing Made of high quality chrome steel with double rubber seal, pre-lubricated/greased from the manufacturer, low friction coefficient and stable performance.
16006-2RS Ball Bearing Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment, and so on.
Single row deep Groove Ball Bearings offer multiple options that serve a wide range of applications. The 'groove' is the depth of the raceway into which the balls fit, they typically consist of an Inner Ring, Outer Ring, Balls and Cage. Variants are available with Steel Shields, Rubber Seals (Contact/Non-Contact type), Snap-ring Grooves with Snap-rings, and a variety of Cage types.
These Bearings are designed for radial, axial, and also composite load applications, purpose of deep groove precision ball bearings is to reduce rotational friction and support radial and axial loads.Deep Groove Ball Bearings offer:
·Uni or bi-directional load carrying capability
·Very high-speed rotation
·Very good running accuracy
·Low noise and low friction torque
16006 bearing purchasing dimensions and seal options
This ZOTY 16006 chrome steel bearing measures 30 mm bore x 55 mm outside diameter x 9 mm width. These are metric dimensions. A replacement should match the shaft, housing seat and available axial width, together with the specified fit and clearance.
State the complete model and sealing arrangement
RS specifies a rubber seal on one side; 2RS specifies rubber seals on both sides. When double-sided rubber sealing is required, put 16006-2RS on the quotation request and purchase specification. Confirm the required lubricant and both-face configuration on the drawing or sample before batch approval.
Information for OEM and replacement orders
Provide quantity per batch, the existing bearing marking, installation drawing, required clearance, operating speed, load and temperature. Include any lubricant, inspection, marking and packing requirements. Confirm the mounting fit for the 9 mm width rather than selecting solely by the 30 mm bore. Price, sample availability and lead time are quoted against the actual specification.
Request a 16006 bearing quotation or email admin@zotybearing.com with your quantity and delivery destination.
Related range: deep groove ball bearings. Compare complete model dimensions and mounting drawings before choosing another size in the range.
