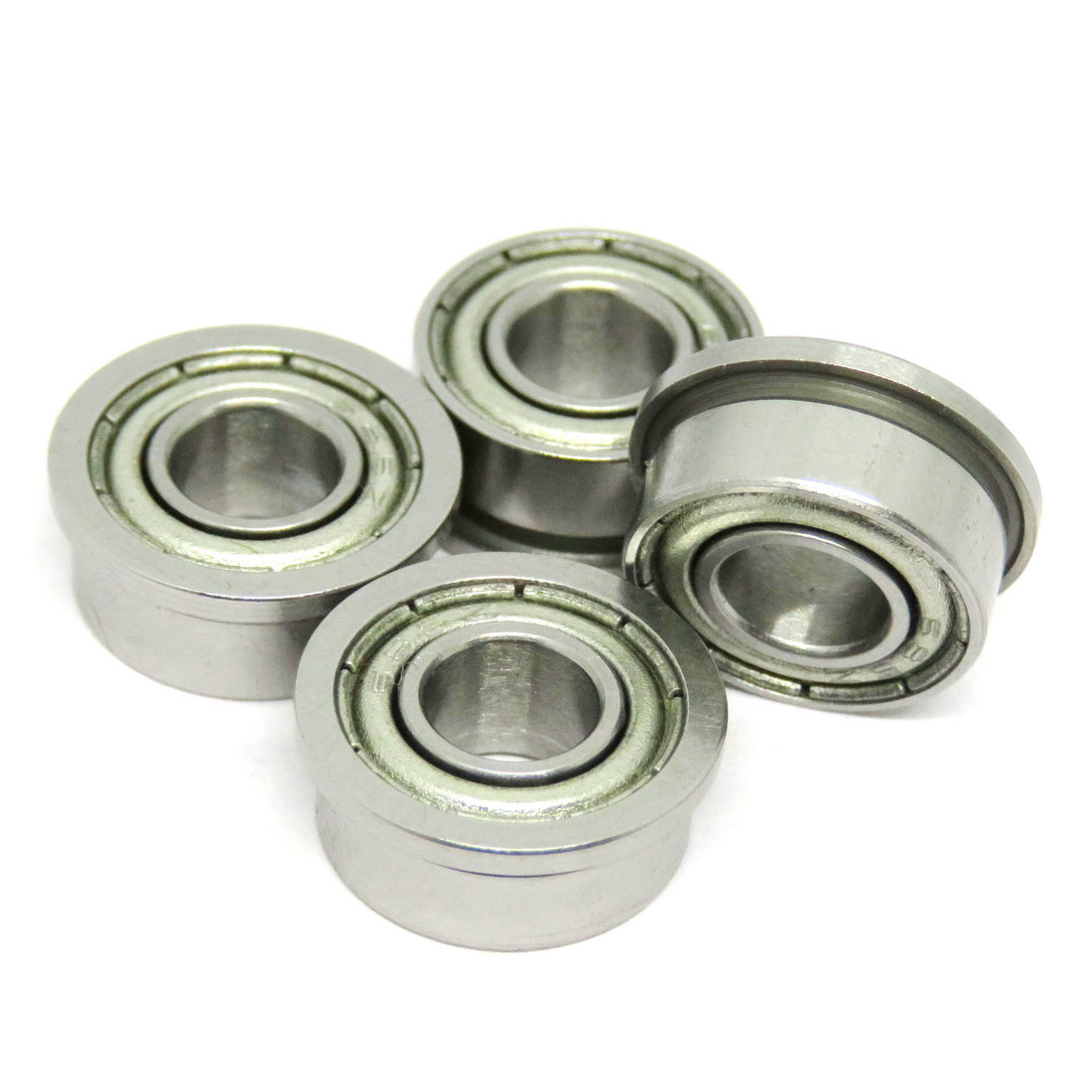

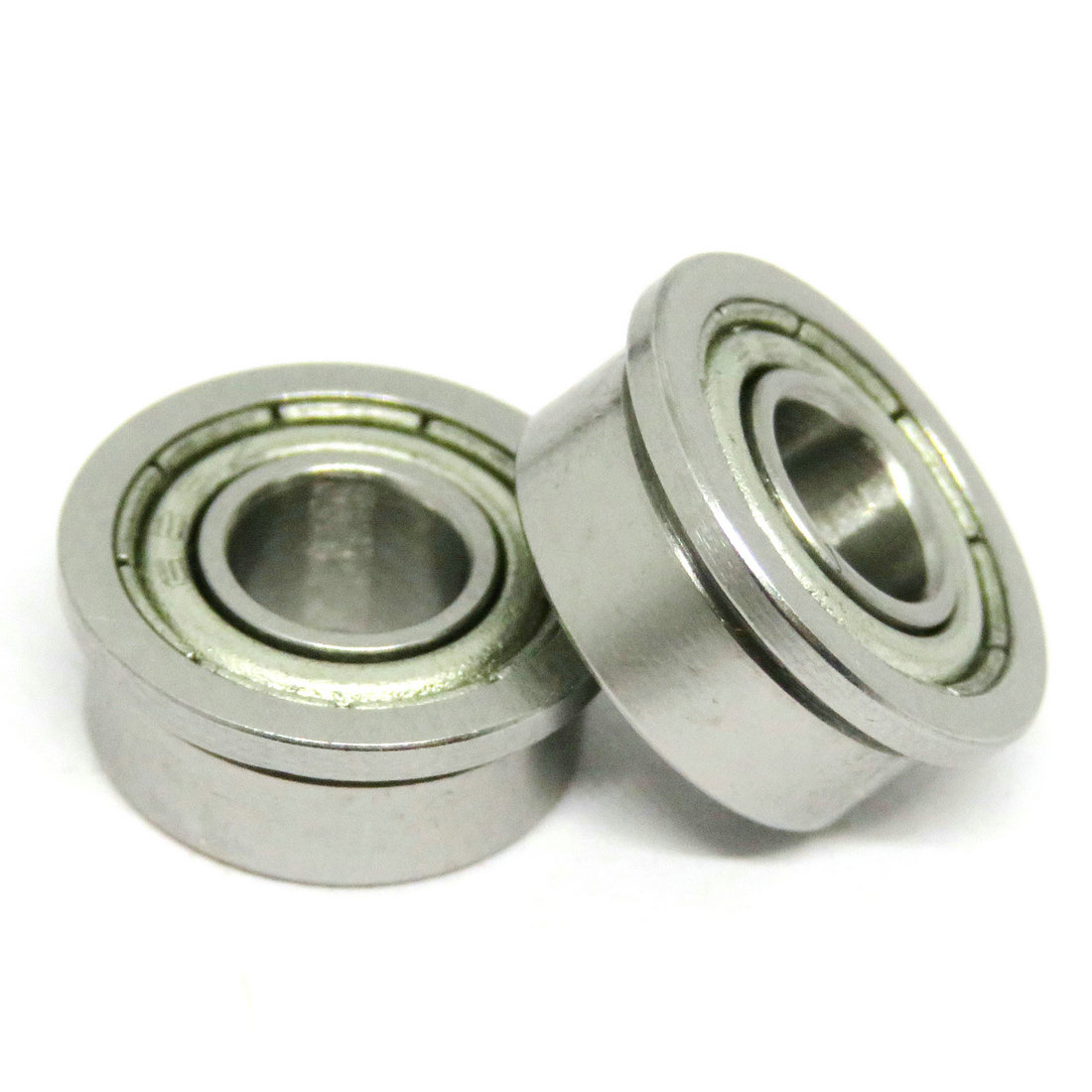

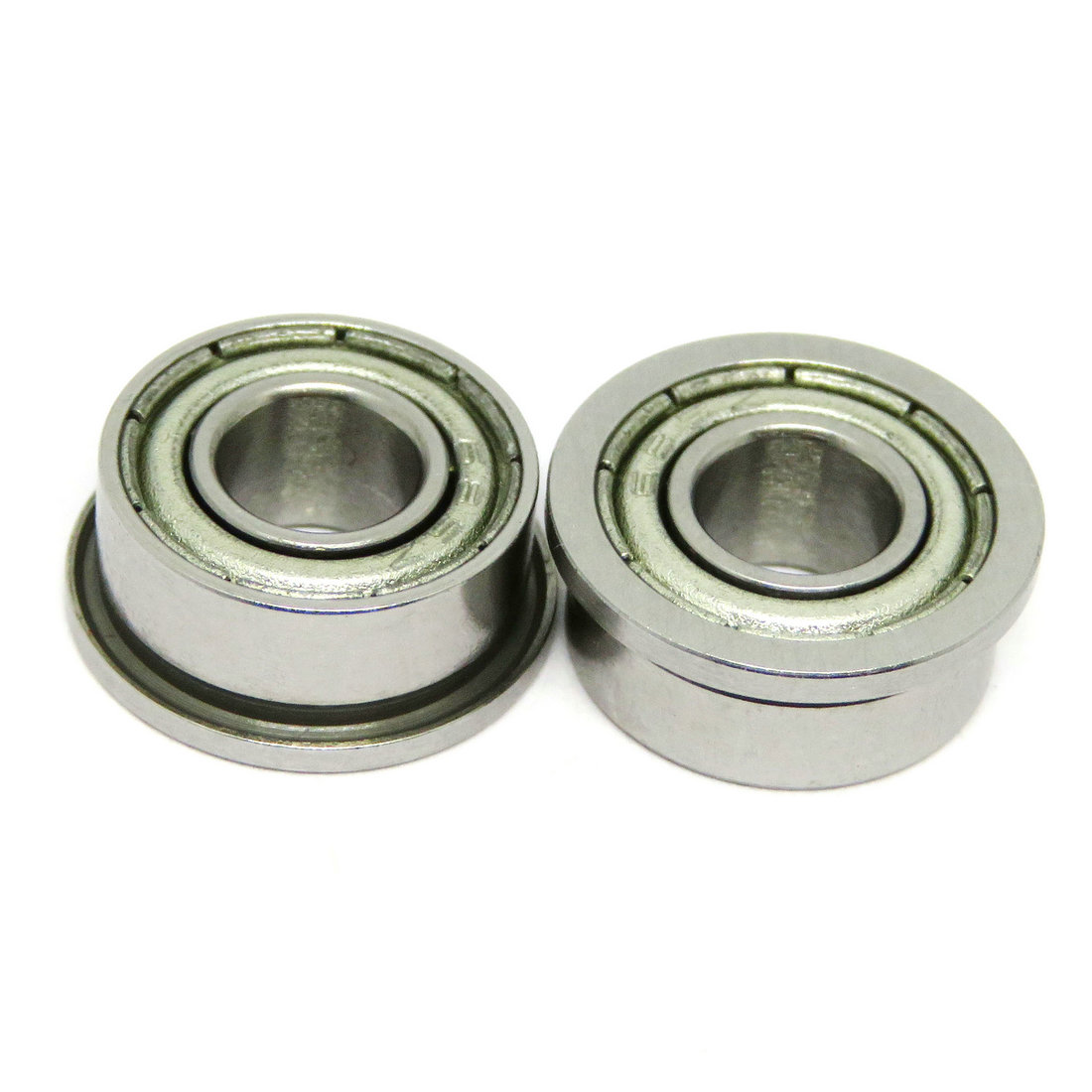

F684 F684ZZ F684Z F684-2Z 4x9x4 Flange Bearing Miniature Deep Groove Ball Bearing Shielded Ball Bearings

F684 F684ZZ F684Z F684-2Z 4x9x4 Flange Bearing Miniature Deep Groove Ball Bearing Shielded Ball Bearings

 Zoty deep groove ball bearing.jpg

Bearing facotry-5.JPG

Product NameF684 F684ZZ F684Z F684-2Z 4x9x4 Flange Bearing Miniature Deep Groove Ball Bearing Shielded Ball Bearings
BrandNeutral/ No brand
Model NoF684ZZ
Sizes(mm)4x9x4mmflanged bearing
MaterialChrome steel, 52100 bearing steel/ 100Cr6
Sealed Type2RS rubber seals/ ZZ metal shields/Open
PrecisionP0, P6/  ABEC-1, ABEC-3
UsedF684 F684ZZ F684Z F684-2Z 4x9x4 Flange Bearing Miniature Deep Groove Ball Bearing Shielded Ball Bearings, use for all kinds of rolling spplication, jewelry, watch,tools, machines, rc model, rc car, rc wheel,furniture, printer machines, money machins, home appliance, cabinet, sliding doors, windows....
Packing10pcs/tube+ carton
Shipping MethodBy Air, Sea, Train, Truck, or other DDP Service

F684 F684ZZ F684Z F684-2Z 4x9x4 Flange Bearing Miniature Deep Groove Ball Bearing Shielded Ball Bearings

Inner dimension: 4 mm

Outer dimension: 9 mm

Width: 4 mm

Weight: 0,002 kg

Material: Standard bearing steel

Seal: Cover on both sides

Clearance: Normal radial clearance

Cage: Sheet steel cage

Bore: Cylindrical bore

Ball rows: Single row bearing

Current insulation: No current insulation

Material of rolling elements: Standard bearing steel

Temperature range: -30 to +150 °C

Tolerance class: Tolerance class P0/PN2 / ABEC 1

Outer ring: Flange on outer ring


F6000 series flange bearing from F604ZZ, F605ZZ, F606ZZ, F607ZZ, F608ZZ, F609ZZ,F6000ZZ, F6001ZZ, F6002ZZ, F6003ZZ, F6004ZZ, F6005ZZ, F6006ZZ, F6007ZZ, F6008ZZ, F6009ZZ....

F684 F684ZZ F684Z F684-2Z 4x9x4 Flange Bearing Miniature Deep Groove Ball Bearing Shielded Ball Bearings.jpgF684 F684ZZ F684Z F684-2Z 4x9x4 Flange Bearing Miniature Deep Groove Ball Bearing Shielded Ball Bearings.jpg

MF52 MF62 MF63 MF74 MF85 MF95 MF104 MF105 MF106 MF115 MF117 MF126 MF128 MF137 MF148 ZZ RS Z 2Z 2RS Micro Flange Ball Bearing.jpg


12x28x8mm F6000ZZ F6001ZZ F6002Z F6003ZZ F6004Z F6005RS F6006 ZZ RS Flange Bearing Deep Groove Ball Bearing.jpg

Flanged ball bearings are available open, shielded or sealed.Deep groove radial flanged miniature bearings can withstand heavy radial loads and moderate thrust loads in both directions. Flanged miniature ball bearings have an outer ring flange to facilitate location in a housing.

Flange Bearings have several different types and they are engineered to meet specific requirements of the application or situation. Different types of these Bearings come with different design, cages, load capacities as well as different performance. These Bearings are designed to mount ball bearing with high precision and performance, because these Bearings are highly sturdy, water resistant and dirt resistance, they are suitable for providing mounting for other apparatuses with rotary or linear motion.

APPLICATION:

These Bearings are used in several different industries and machines, they are widely used in automation, machine construction, agricultural machines, food industry, conveyor technology and industry as well as other industries that need high carrying capacity.

Zoty bearing supply RC ball bearing set, hybrid ceramic bearing, stainless steel ball bearing , flanged bearings, one way bearing... widely used for RC models, racing, trucks, boat, cars..
