| Product Name | 3x6x2mm bearing, 3x6x2.5mm small flanged bearing, china mf63 bearing |
| Brand | Neutral |
| Model No | M63ZZ |
| Sizes(mm) | 3x6x2.5mm flanged bearing |
| Material | Chrome steel, 52100 bearing steel/ 100Cr6 |
| Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
| Precision | P0, P6/ ABEC-1, ABEC-3 |
| Used | 3x6x2mm bearing, 3x6x2.5mm small flanged bearing, china mf63 bearing , use for all kinds of rolling spplication, jewelry, watch,tools, machines, rc model, rc car, rc wheel,furniture, printer machines, money machins, home appliance, cabinet, sliding doors, windows.... |
| Packing | 10pcs/tube+ carton |
| Shipping Method | By Air, Sea, Train, Truck, or other DDP Service |
3x6x2mm bearing, 3x6x2.5mm small flanged bearing, china mf63 bearing

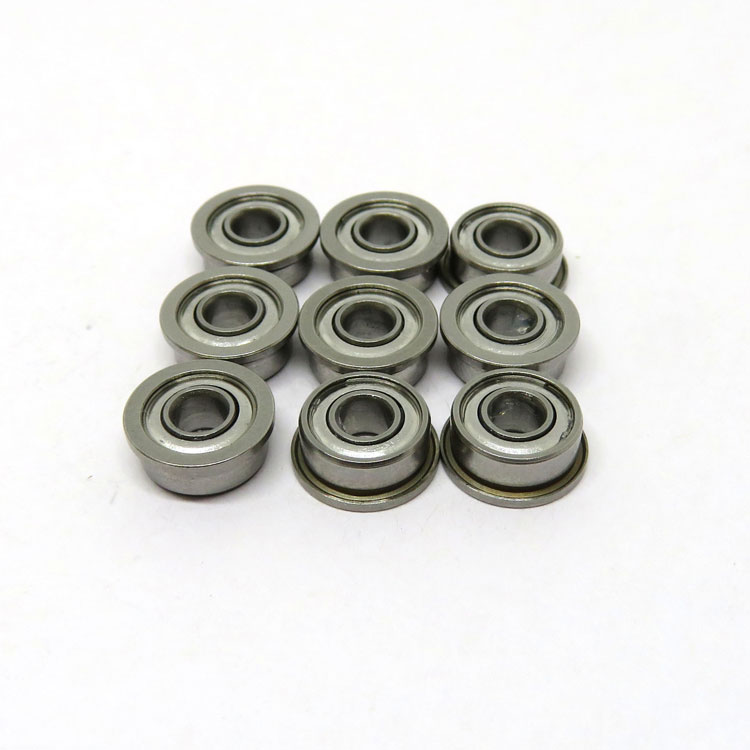

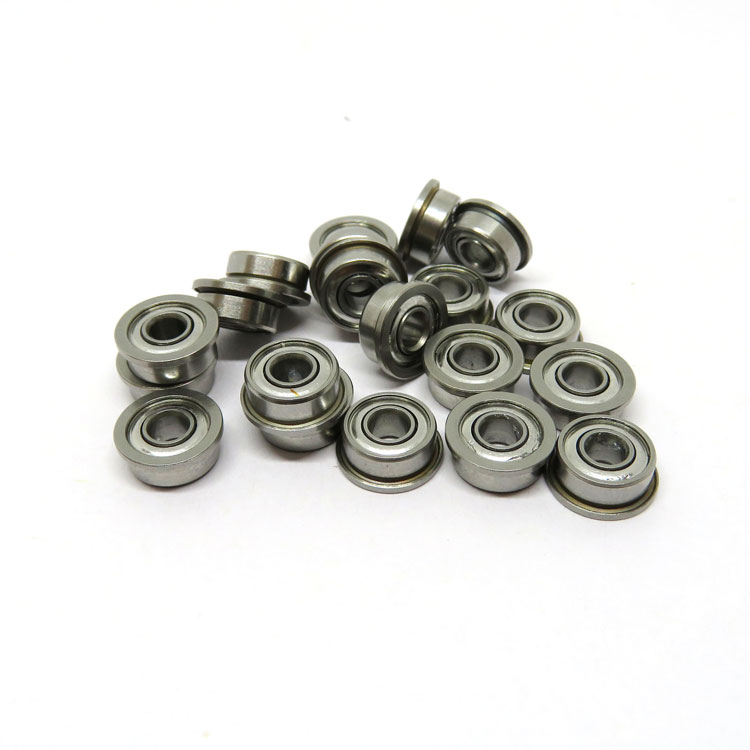

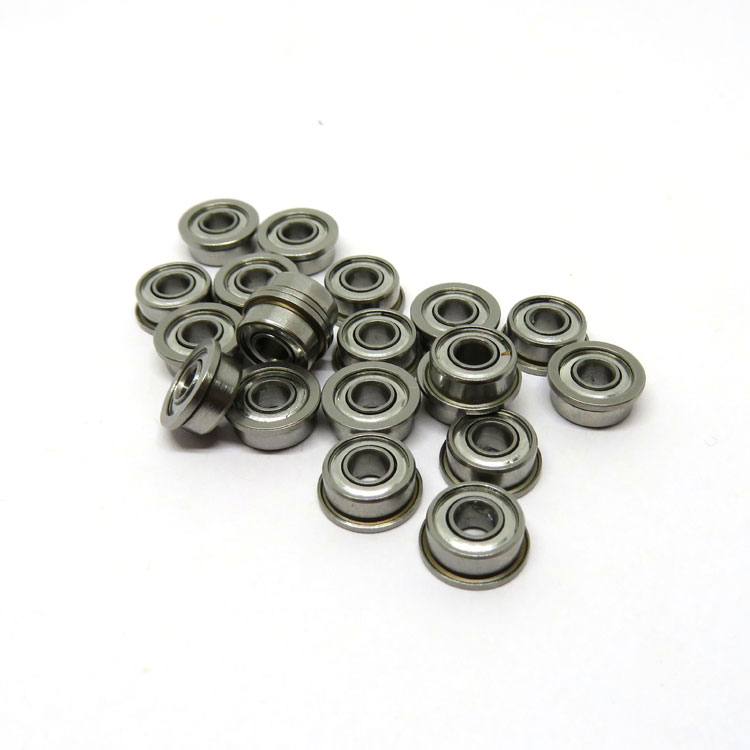

MF63ZZ small flange bearing miniature flanged deep groove ball bearings inner bore 3mm, outer diameter 6mm, width 2.5mm,
it made of chrome steel material flanged rings , widely use for rolling systems, furniture, sliding door window, tools, machines....
this list MF63-ZZbearing 3x6x2.5.mm of the tolerance grade is ABEC-1, P0 precision, lubed with grease.
MF63-ZZ Flanged Bearing ABEC-1 3x6x2.5mm Single row, deep-groove ball bearing for applications that support high speeds, axial loads in both directions, and radial loads
Measurements
Inner Diameter: 3
Outer Diameter: 6
Thickness: 2.5
Measurement Unit: Metric
Materials
Bearing Type: Radial Bearing
Product Seal: Two Metal Shield (ZZ)
Ball Material: Chrome Steel
Retainer Material: Metal or High Speed Plastic
Technical Specifications
Quality Level ABEC 1
Operating Temperature:–30 °C to +110°C.
Raceways: Finely polished superior finish for long life, and low noise.
Lubrication recommended: High Quality Synthetic bearing Lubricant.
Commonly used for glider/rocker arms, wheels of the cart, lawnmowers, printers, pumps, motors, gearboxes, reducer, textile machinery, electronic equipment, and more.
MR miniature bearing small size from MF52 2x5x2mm MF52ZZ MF63 MF63ZZ MF74 MF74ZZ MF85, MF85ZZ, MF104, MF104ZZ MF105 MF105ZZ MF106, MF106ZZ, MF115 MF115ZZ MF117 MF117ZZ MF128ZZ, MF128 MF148 MF148ZZ MF116ZZ, MF126 MF126Z MF125ZZ ... also available rubber seals.

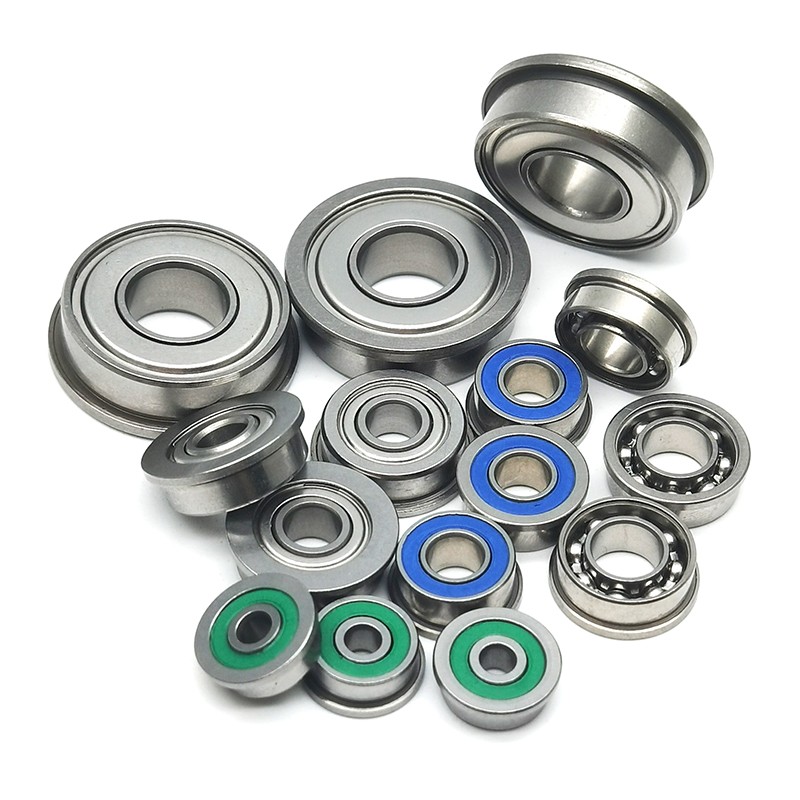

Flanged ball bearings are available open, shielded or sealed.Deep groove radial flanged miniature bearings can withstand heavy radial loads and moderate
thrust loads in both directions. Flanged miniature ball bearings have an outer ring flange to facilitate location in a housing.
Flange Bearings have several different types and they are engineered to meet specific requirements of the application or situation. Different types
of these Bearings come with different design, cages, load capacities as well as different performance. These Bearings are designed to mount ball bearing
with high precision and performance, because these Bearings are highly sturdy, water resistant and dirt resistance, they are suitable for providing mounting
for other apparatuses with rotary or linear motion.
APPLICATION:
These Bearings are used in several different industries and machines, they are widely used in automation, machine construction, agricultural machines,
food industry, conveyor technology and industry as well as other industries that need high carrying capacity.
Zoty bearing supply RC ball bearing set, hybrid ceramic bearing, stainless steel ball bearing , flanged bearings, one way bearing... widely used for RC
models, racing, trucks, boat, cars..
