High capacity Payload 12000kg 508mm mecanum 20 inch mecanum wheel NM508A for industrial

With a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane of the wheel

in a plane parallel to the axis of rotation of the mecanum wheel. Depending on each individual wheel direction and speed, the

resulting combination of all these forces produce a total force vector in any desired direction. thus allowing the platform to

move freely in the direction of the resulting force vector, without changing of the mecanum wheels themselves.

It is perfect for tight space.These wheels are sold in assembled units, with many rollers per wheel. Each roller is a heavy-duty wheel itself.Theseoffers capacity up to

25000 pounds at least.Typical applications include Material handling, table lift, and Heavy dusty vehicle etc.Especially in warehousing andlogistics,could improve efficiency and promote the development of the industry.Mecanum wheel

would have a huge technological revolution.

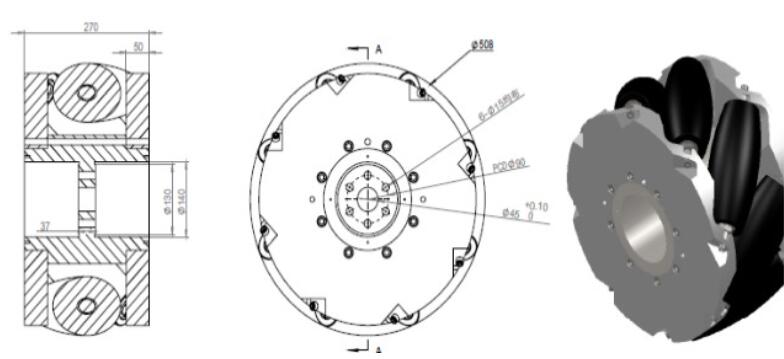

Specification

Size: 20 inch

Limit Load:3000KG

Suggested Load:2500KG

Outside diameter:508mm

Width:270mm

Quantity of rollers:8

Self weight:210KG

Side part material:high strength 45# steel

Wheel core material:high strength 45#steel

Covering material: importing polyurethane

Features

Especially Flexible

a.Due to omnidirectional drive technology,the vehicle can be

moved in any direction with mecanum wheels

b.Even in extreme surface.

Especially Safe

a.Travel stability and safty, simple operation

b.Easy to control.

Especially Efficient

a.Navigate in tight spaces,would save considerable time and reduce costs

b.Optimize the storage space, keep scientific and reasonable place

Especially strong

a.Compared to the size of wheels, has more high load capacity

b.Long working life

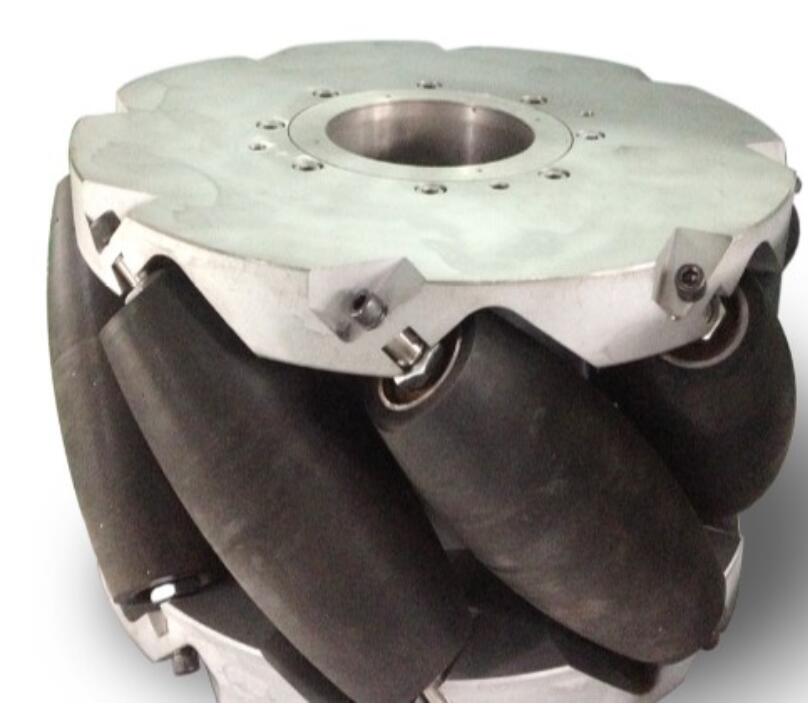

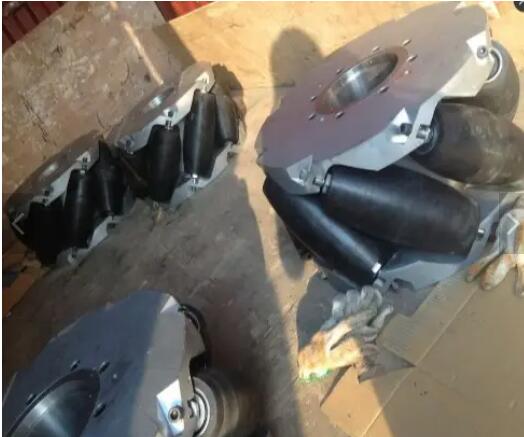

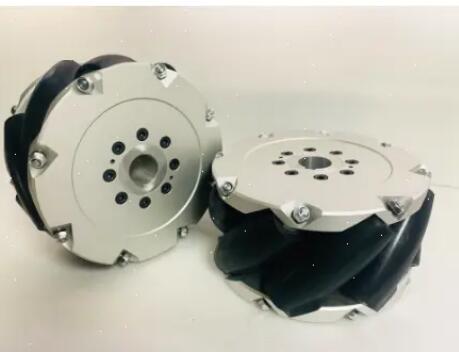

Load capacity 12000KG 508mm mecanum wheel 20 inch mecanum NM508A pictures as below:

What are the advantages and disadvantages of the mecanum wheel?

Much easier to climb ramps with Mecanums. To my understanding Mecanums are also more efficient in forward and reverse directions (like a normal wheel) while still giving you lateral mobility. Omni-Drives will give you true omnidirectional motion.

The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,

 can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.

Heavy duty mecanum wheel load capacity specifications:

Large size 355mm, 375mm, 508mm, ours newest design heavy duty type mecanum wheel can pay load 12,000kg per set of wheels.

How you connect the heavy duty mecanum wheel to motor drive? you may need to customize some shaft, hub, washer....
