Load capacity 300KG A set of 6inch 152mm Heavyduty Industrial mecanum wheel with PU roller NM152A features:
Zoty Industry Omni wheel&Mecanum wheel is heavy load Omni wheel&Mecanum wheel. Each High-strength wheel hub and great-quality material ensure the series an
excellent performance. AGV Industry Omni wheel&Mecanum wheel series Omni wheel also adapt to various indoor and outdoor occasions.It can be used in industry .
install on the heavy duty omni moving platform to make the platform rotate to omni directions.And it mainly used in industry , workshop, AGV and so on . It can even used
on stage show equipment .
Specification:
Diameter: 152.4mm（6 inch)
Width: 80mm
Number of Rollers: 8
Number of Plates: 2
Body material: Aluminum alloy
Roller material: Aluminum core with Polyurethane coated
Net weight: 2.6kg *4
Load capacity: 300kg/Set

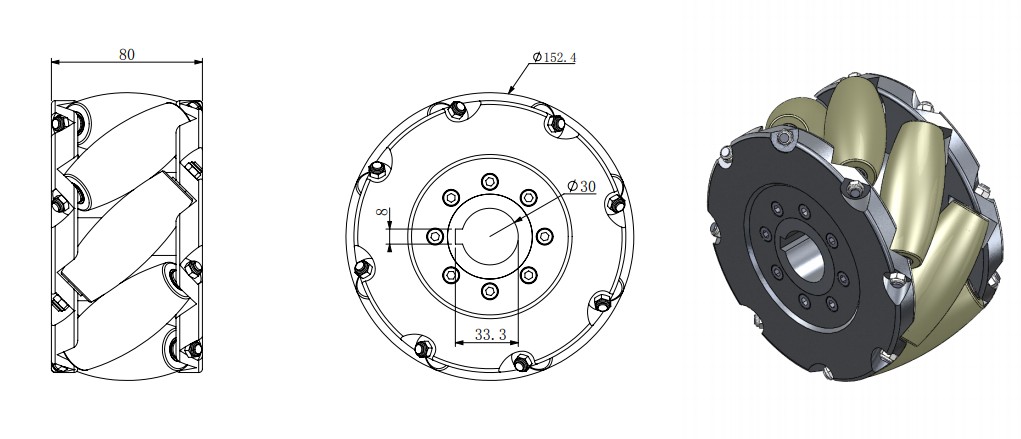

Load capacity 300KG 152mm Heavyduty Industrial mecanum wheel NM152A pictures as below:
What are the advantages and disadvantages of the mecanum wheel?
Much easier to climb ramps with Mecanums. To my understanding Mecanums are also more efficient in forward and reverse directions (like a normal wheel) while still giving you lateral mobility. Omni-Drives will give you true omnidirectional motion.
The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,
can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
Heavy duty mecanum wheel load capacity specifications:
Large size 355mm, 375mm, 508mm, ours newest design heavy duty type mecanum wheel can pay load 12,000kg per set of wheels.
How you connect the heavy duty mecanum wheel to motor drive? you may need to customize some shaft, hub, washer....
NM152A 152.4 mm Mecanum Wheel Set: Mounting and RFQ Checklist
For AGV chassis and mobile-platform builders, NM152A is a 6-inch mecanum wheel configuration with polyurethane-coated rollers and an aluminum-alloy wheel body. Confirm the left/right wheel arrangement and drive interface against the chassis drawing before ordering.
Published NM152A specifications
| Item | Published configuration |
|---|
| Diameter / width | 152.4 mm (6 inch) / 80 mm |
| Rollers / plates | 8 rollers / 2 plates |
| Body / roller construction | Aluminum alloy body; aluminum-core rollers with polyurethane coating |
| Listed net weight | 2.6 kg × 4 |
| Listed load figure | 300 kg per set; the existing listing does not state its static/dynamic test conditions. Confirm the duty and load allocation before selection. This is not a 300 kg per-wheel claim. |
Check the chassis and installation
Send the hub/shaft drawing, bore, keyway or bolt pattern and available mounting space.
Specify the quantity of left-hand and right-hand wheels, their positions and wheelbase/track dimensions.
State total vehicle and payload mass, center of gravity, speed, acceleration, duty cycle, floor condition and any slope or obstacle.
Request confirmation of the hub interface and roller configuration. A wheel listing alone does not include a motor, suspension or complete drive module.
Request a wheel-set quotation
Provide NM152A, sample or production quantity, left/right arrangement, installation drawing, operating conditions and delivery destination. Confirm the load basis, interface, price and lead time in the quotation.
Email the NM152A chassis requirements or use this page’s quotation form. Compare mecanum wheel configurations.
