14058 100mm Double Plastic Omni Wheel with Bearing Rollers and Central Bearing features:

Omni wheel&Mecanum wheel is heavy load Omni wheel&Mecanum wheel. Each High-strength wheel hub and great-quality material ensure the series an excellent performance.

Omni wheel&Mecanum wheel series Omni wheel also adapt to various indoor and outdoor occasion.It can be used in industry . install on the heavy duty omni moving platform to make the platform rotate to omni directions.And it mainly used in industry , workshop, AGV and so on . It can even used on stage show equipment .

Specifications:

Number of Plates:2

Number of Rollers:18

Number of Screw Holes:12

Diameter : 100mm

Plate material : Nylon

Axial width : 30mm

Roller material : Rubber

Roller diameter 12mm

Roller axle : Bearing roller

Roller bearing : Brass Tube

Net weight : 450g

Load capacity : 15kg

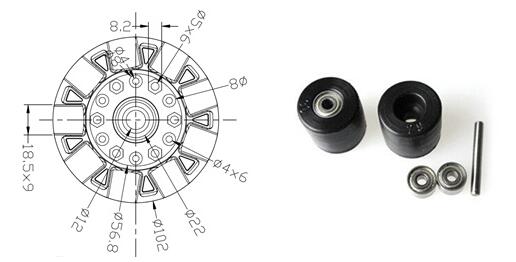

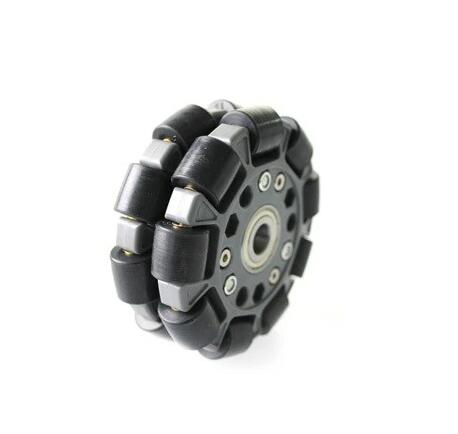

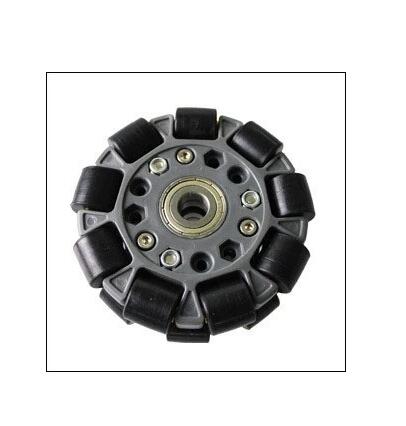

14058 100mm Double Plastic Omni Wheel with Bearing Rollers and Central Bearing pictures as below:

What are the advantages and disadvantages of the Omni wheel?

The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,

 can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
