Hybrid stainless bearing SMR95C 5x9x3mm SMR95C-UG PEEK cage competition ceramic bearing

Hybrid stainless bearing SMR95C 5x9x3mm SMR95C-UG PEEK cage competition ceramic bearing

zoty bearing catalog.jpg

Zoty bearing payment term.jpg


Ceramic hybrid ball bearings for fishing reels.png

PEEK cage hybrid ceramic ball bearing logo service.jpg

Zoty bearing's cage option.png

Product NameHybrid stainless bearing SMR95C 5x9x3mm SMR95C-UG PEEK cage competition ceramic bearing
BrandNeutral
Model NoSMR95C-UG-PEEK
Sizes(mm)5x9x3mm
MaterialAISI440C stainless steel+Si3n4 ceramic balls+PEEK cage
Sealed TypeOpen/ Single sealed
PrecisionP5, P6
ClearanceC0, C2, C3, C4
UsedHybrid stainless bearing SMR95C 5x9x3mm SMR95C-UG PEEK cage competition ceramic bearingBaitcast Reels, Fly reels,Hose Reel, Cord Reel & Cable Reel,, High speed machines, rc
Packing10pcs/tube+poly-bag+ carton
Shipping MethodBy Air, Sea, Train, Truck, or other DDP Service

Zoty bearing ceramic bearing sealed type.png

PEEK cage hybrid ceramic bearing – the high performance cage material, and a special engineering plastic, because of the limitations of general engineering plastics, for some special applications (high temperature resistance, durable, acid and alkali corrosion resistance, chemical resistance....)

PEEK bearing material cage hybrid ceramic miniature ball bearing as an important machine parts, metal bearings because of its unmatched superior performance, high temperature, super-strength materials in the new world dominate.

PEEK bearing material cage hybrid ceramic miniature ball bearing is Widely used in medical equipment, cryogenic engineering, optical instrument, high-speed machine, high-speed electric machinery, printing machinery, food processing machiner.

With ceramic balls will be run in high speed,lube some light oil will reduce the noise, durable and easy to remaintance, orange seals is most common color, we do accept customised any color seals. Zoty bearing almost of sizes in stock no MOQ request, same day delivery.

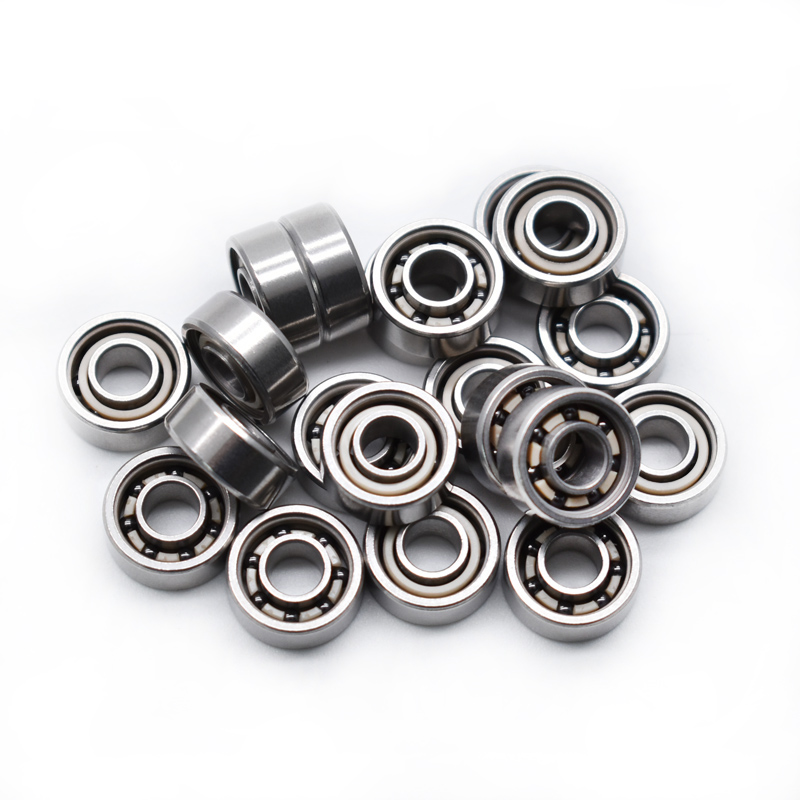

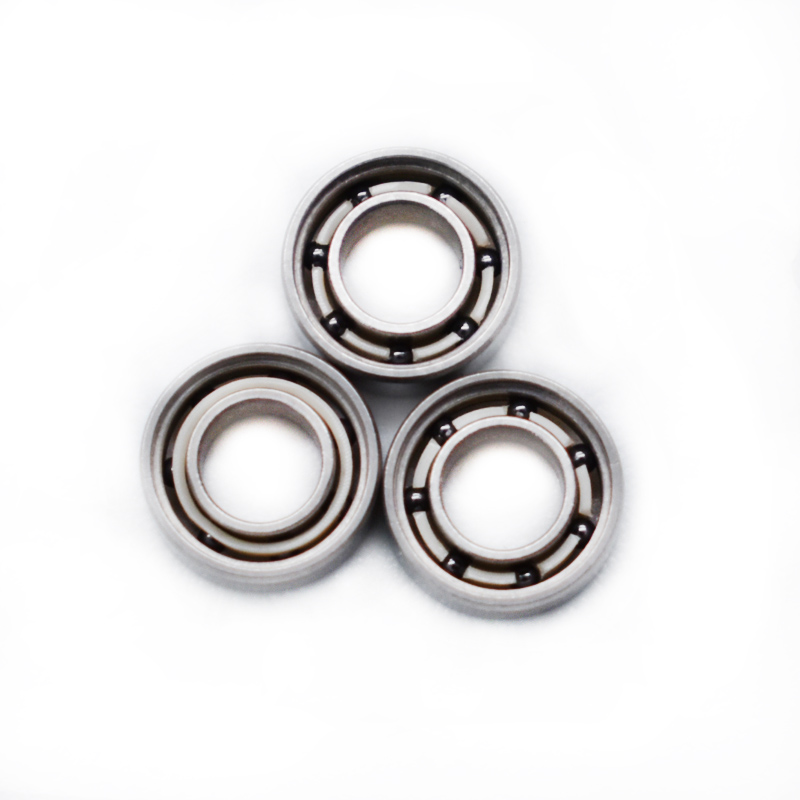

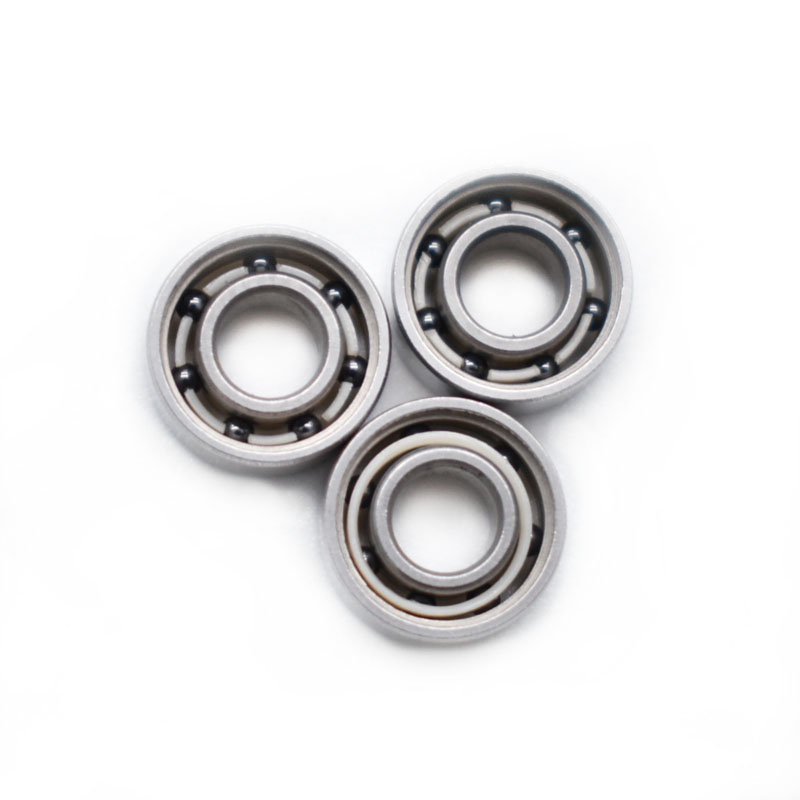

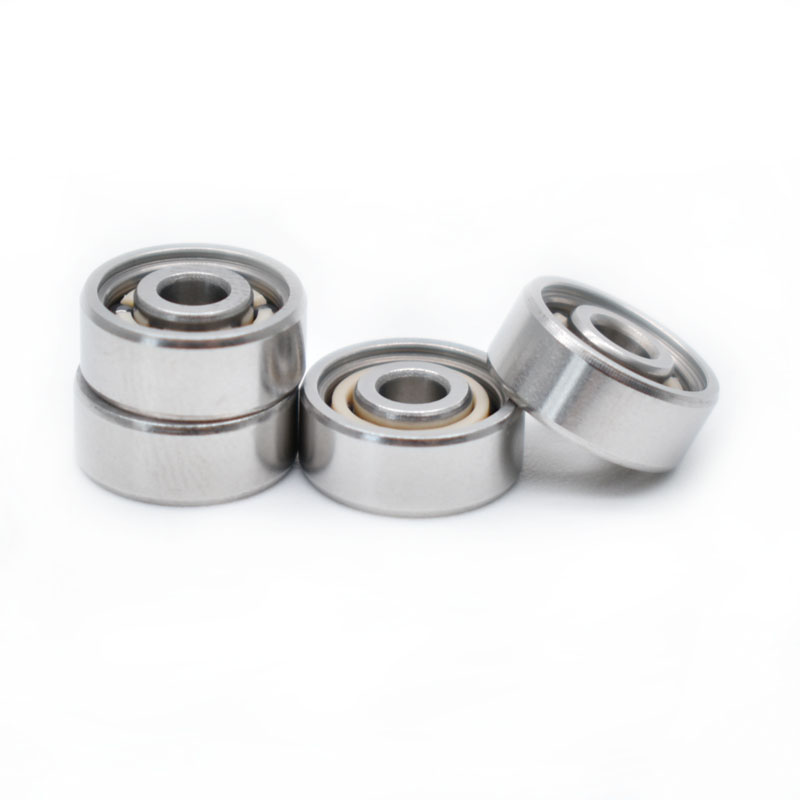

Hybrid stainless bearing SMR95C 5x9x3mm SMR95C-UG PEEK cage competition ceramic bearing, real photoes

SMR95C-UG-PEEK ceramic bearing inner bore 5mm, outer diameter 9mm, width 3mm, high temperature PEEK cage, Si3N4 ceramic balls, high speed.

Hybrid stainless bearing SMR95C 5x9x3mm SMR95C-UG PEEK cage competition ceramic bearing.jpgHybrid stainless bearing SMR95C 5x9x3mm SMR95C-UG PEEK cage competition ceramic bearing.jpg

PEEK Cage Hybrid Ceramic Bearing features:

1. AISI440C stainless steel rings

2. PEEK cage

3. Si3N4 ceramic balls

4. Dry lube/ AF2 Oil

5. Open/ Single sealed

6. High speed, durable, long working life

7. ABEC-7/ ABEC-9 grade


PEEK cage hybrid ceramic bearing stocked sizes: 3x8x4mm, 3x10x4mm,4x10x4mm, 5x9x3mm, 5x10x4mm, 5x11x4mm


Fishing reel ceramic bearing popular sizes as following:

Ball Bearing bore 2mm:  2x5x2mm, 2x5x2.5mm, 2x6x2.5mm, 2.5x6x...

Ball Bearing bore 3mm: 3x6x2mm, 3x6x2.5mm, 3x7x3mm, 3x8x2.5mm, 3x8x3mm, 3x8x4mm, 3x10x4mm, 3x11x4mm

Ball Bearing bore 4mm: 4x7x2mm 4x7x2.5mm, 4x8x2mm, 4x8x3mm,4x10x4mm, 4x11x4mm,4x13x5mm

Ball Bearing bore 5mm: 5x8x2mm, 5x8x2.5mm, 5x9x3mm, 5x10x3mm, 5x10x4mm, 5x11x3mm, 5x11x4mm, 5x13x4mm

Ball Bearing bore 6mm: 6x10x2.5mm, 6x10x2.5mm, 6x10x3mm, 6x12x4mm, 6x13x5mm, 6x15x5mm, 6x19x6mm

Ball Bearing bore 7mm:7x11x3mm, 7x14x3.5mm, 7x14x5mm, 7x17x5mm

Ball Bearing bore 8mm: 8x12x2.5mm, 8x12x3.5mm,8x14x4mm, 8x16x5mm

Ball Bearing bore 9mm:  9x17x5mm, 9x20x5mm

Ball Bearing bore 10mm: 10x15x4mm, 10x19x5mm, 10x20x5mm

Ball Bearing bore 12mm: 12x18x4mm

Ball Bearing bore 15mm: 15x21x5mm....

Inch/imperial sizes  ball bearing : SR2C-2OS 1/8" x 3/8" x 5/32, SR156C-2OS 3/16" x 5/16" x 1/8, SR166C-2OS 3/16 x 3/8 x 1/8, SR168C-2OS 1/4"x3/8"x1/8..

PEEK ceramic bearing hybrid ceramic miniature ball bearing .jpg

 Learn zoty how to replace the fishing reel bearings.jpg

PEEK cage ceramic bearing package.jpg
