Plastic Bearing Roller Wheels for Solar Photovoltaic Equipment
ZOTY supplies screw-mounted bearing roller wheels for solar photovoltaic equipment projects. Match the wheel profile and mounting drawing to the actual moving assembly before selecting a material or ordering a replacement.
Available construction
| Component | Options listed for this product range |
|---|
| Wheel material | PA66 or polyurethane (PU); confirm the selected formulation in the quotation |
| Bearing | Deep groove ball bearing, chrome steel or stainless steel |
| Shaft | Stainless steel; shaft size can be customized |
| Mounting | Wheel with screw; thread and shoulder dimensions to drawing |
| Bearing closure | Rubber seals or metal shields, according to the ordered bearing |
Choose the roller for the actual mechanism
Tell us where the roller is fitted, what surface or track it contacts, the load per wheel, movement speed, duty cycle and whether the assembly is used indoors or outdoors. Include exposure to sunlight, water, dust, temperature changes and cleaning chemicals where relevant. Material selection and any required weathering or chemical-resistance tests need to be agreed for the specific configuration.
The product name alone does not establish compatibility with a solar tracker, panel-cleaning machine or module-production line. No universal load, operating-temperature, UV-life or service-life rating is specified here. These requirements should be reviewed with your drawing and operating conditions.
Send a drawing for an OEM quotation
Provide the wheel outside diameter, width, profile, bearing model or bore, screw diameter and pitch, threaded length, shoulder dimensions, preferred materials, application, sample quantity and production quantity. Existing product photos are shown below; the final supplied dimensions and configuration are confirmed in the quotation.
Use Quotation Now beside the product images, or send a photovoltaic roller drawing and RFQ. For a listed small screw-mounted option, review the 18 mm PU60518-5C1L6M4 polyurethane wheel. Browse the existing photovoltaic wheel range.
Existing product details and photographs
Zoty Bearing- PV wheel Solar energy photovoltaic system plastic roller wheels with bearing
| DR Series-Plastic Drawer Rollers | BS Series-Flat Shape Rollers |
| BSS Series-Flat Plastic Roller with Screw | BSR Series-Rounded Shape Rollers |
| BSU Series-U Groove Rollers | BSUS Series-U Groove Rollers with Screw |
| BSH Series- H Groove Rollers | BSV Series-V Groove Rollers |
| BST Series-Two Bearings POM Rollers | PU Series-Polyurethane Wheels |
| PUOB Series- Round PU Wheels with Screw | PUS Series-PU Wheels with Screw Bolt |
| PUT-Two Bearings PU Rollers | PULT Series- Aluminum Core PU Rollers |
PV wheel Solar energy photovoltaic system plastic roller wheels with bearing specifications:
Bearing type: Deep groove ball bearing
Shaft size: Can customize
Bearing Material: Chrome steel/ stainless steel
Shaft Material: stainless steel
Plastic Material: PA66/ Polyurethane
Type: wheel with screw
Seals Type: rubber seals/ metal shields

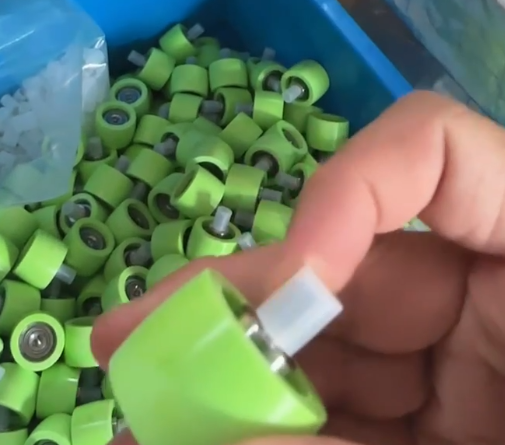

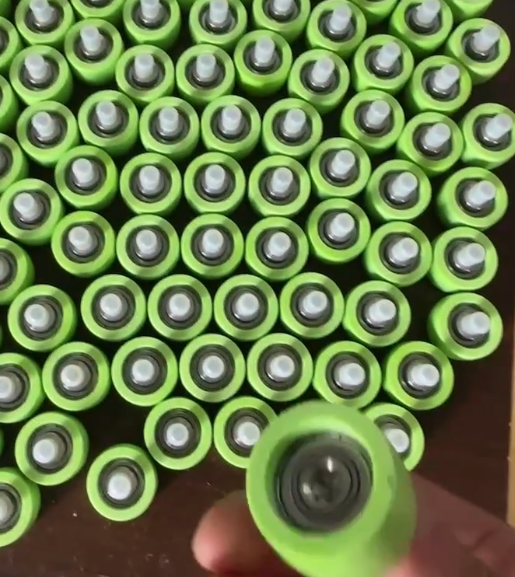

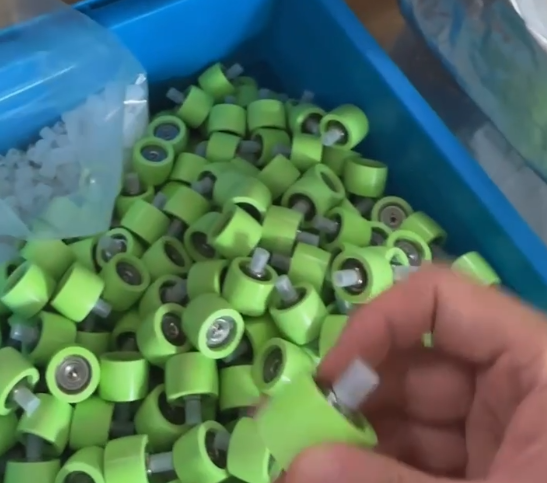

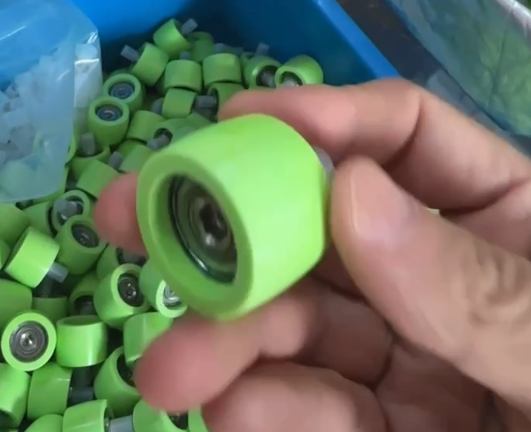

Photovoltaic system plastic roller wheels pictures:
What are plastic coated roller wheels used for?
The wheels for Photovoltaics | SEIA - Solar Energy Industries, Photovoltaic (PV) devices, solar photovoltaic system,solar energy system for home,solar energy production,solar energy devices....professional design, please contact with Zoty bearing for inquiry.
What are common materials for plastic roller wheels?
POM, Nylon, PA, PU, PEEK, POK, TPU material, POM and nylon is most of customer's choice.
