TFL62522-7C2L8M6 TEFLON Roller with M6 Threaded Stud
TFL62522-7C2L8M6 is a stud-mounted TFL guide roller for equipment builders and buyers specifying a low-friction wheel surface. The ZOTY 2026 catalogue lists a TEFLON wheel body, a stainless steel 625 ball bearing and a 304 stainless steel threaded stud.
Dimensions and standard construction
| Item | TFL62522-7C2L8M6 |
|---|
| Thread, M | M6 |
| Wheel outside diameter, OD | 22 mm |
| Wheel width, W | 7 mm |
| Shoulder dimension, C | 2 mm |
| Stud dimension, L | 8 mm, as shown in the series drawing |
| Bearing model | 625 |
| Wheel material | TEFLON, as specified in the company catalogue |
| Bearing material | Stainless steel; grade to be specified for the order |
| Stud material | 304 stainless steel |
Dimensions follow specification row 10 on catalogue page 80. Confirm the thread pitch, fits, tolerances, bearing seals or shields, lubricant, wheel color and required material grade with the quotation and approved drawing.

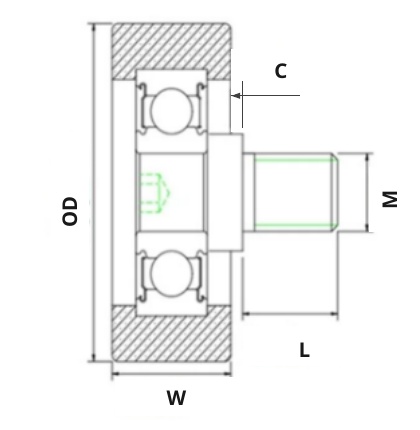

Company catalogue photo and mounting drawing
Series reference photo from ZOTY: the pictured rollers include different sizes and stud arrangements. This is a range illustration, not an exact-model photograph of every variant.
Use the selected drawing to check shoulder seating, stud engagement and wheel clearance. The M6 thread describes the mounting stud; it is not a wheel-bore dimension.
Select for the actual process and installation
For guide and sliding mechanisms where adhesion or chemical exposure is a concern, provide the medium, concentration, operating temperature and cleaning conditions. Selection covers the entire roller assembly, including the wheel, bearing, seals, lubricant and stud. Confirm chemical compatibility for the required duty.
Send the track or contact-surface drawing, load per roller, speed, duty cycle, mounting arrangement and available clearance. A matching wheel diameter or thread alone does not establish replacement compatibility. Numerical load, speed, temperature and service-life limits are confirmed for the selected configuration.
OEM and wholesale quotation
Custom requests can include wheel dimensions, profile, color, bearing configuration and stud geometry. For a quotation, provide TFL62522-7C2L8M6, drawing revision, the required material specification, sample quantity, quantity per batch, packing, inspection documents and delivery destination. Availability, minimum order and lead time are confirmed for the order.
Request a TFL62522-7C2L8M6 quotation or email admin@zotybearing.com.
Compare the TFL roller range and conveyor and packaging guide roller selection. Select the construction from your process and mounting requirements.
