PU62415-5: 4x15x5mm Polyurethane Guide Roller
PU62415-5 is a flat PU-coated bearing roller with a 4 mm bore, 15 mm wheel outside diameter and 5 mm wheel width. The ZOTY 2026 roller catalogue lists a 624 bearing and 85 Shore A wheel hardness. The published product configuration uses a GCr15 chrome steel bearing.
Check the axle, clearance and contact surface
The 4 mm dimension is the bore for axle mounting; it is not an M4 threaded stud. Check axle fit and retention, wheel clearance and the width of the running surface against the published product drawing. Provide the track or mating-part drawing when selecting a small guide roller for an OEM mechanism or replacement assembly. Dimensions alone do not establish compatibility with a particular machine.
Specify the complete roller for bulk purchasing
State the required rubber seals or metal shields, lubricant, wheel material and hardness, color, dimensional tolerances and inspection requirements. The listed 85 Shore A configuration is the reference for this model; confirm any requested alternative before ordering. Send load per roller, speed, duty cycle and exposure conditions for selection review.
For an OEM or wholesale quotation, provide PU62415-5, sample quantity, quantity per batch, drawing revision, packing and delivery destination. Minimum order, availability and lead time are confirmed for the selected configuration.
Request a PU62415-5 quotation or email admin@zotybearing.com. See conveyor and packaging guide roller selection for the installation and operating information to provide, or compare the PU roller range.
Product photos and published drawing
Zoty Bearing- Series Coated Bearing / PU Pulleys/ PU Rollers/ Polyurethane Wheel
| DR Series-Plastic Drawer Roller | BS Series-Flat Shape Roller |
| BSS Series-Flat Plastic Roller with Screw Bolt | BSR Series-Rounded Shape Roller |
| BSU Series-U Groove Roller | BSUS Series-U Groove Roller with Screw |
| BSH Series- H Groove Roller | BSV Series-V Groove Roller |
| BST Series-Two Bearings POM Roller | PU Series-Polyurethane Wheel |
| PUOB Series- Round PU Wheel with Screw | PUS Series-PU Wheel with Screw Bolt |
| PUT-Two Bearings PU Roller | PULT Series- Aluminum Core PU Roller |
PU62415-5 4x15x5mm polyurethane roller 4x15x5 specifications:
Model: PU62415-5
Diameter: 4x15x5mm
Bearing Material: GCr15 Chrome Steel
Plastic Material: Polyurethane(PU)
Shape: Flat
Color: Transparent color ( as your requested)
Shore Hardness: 85 Shore A, and can do 55 75 85 90 92 95 Shore A. / Shore D 65 75.
Seals Type: rubber seals/ metal shields

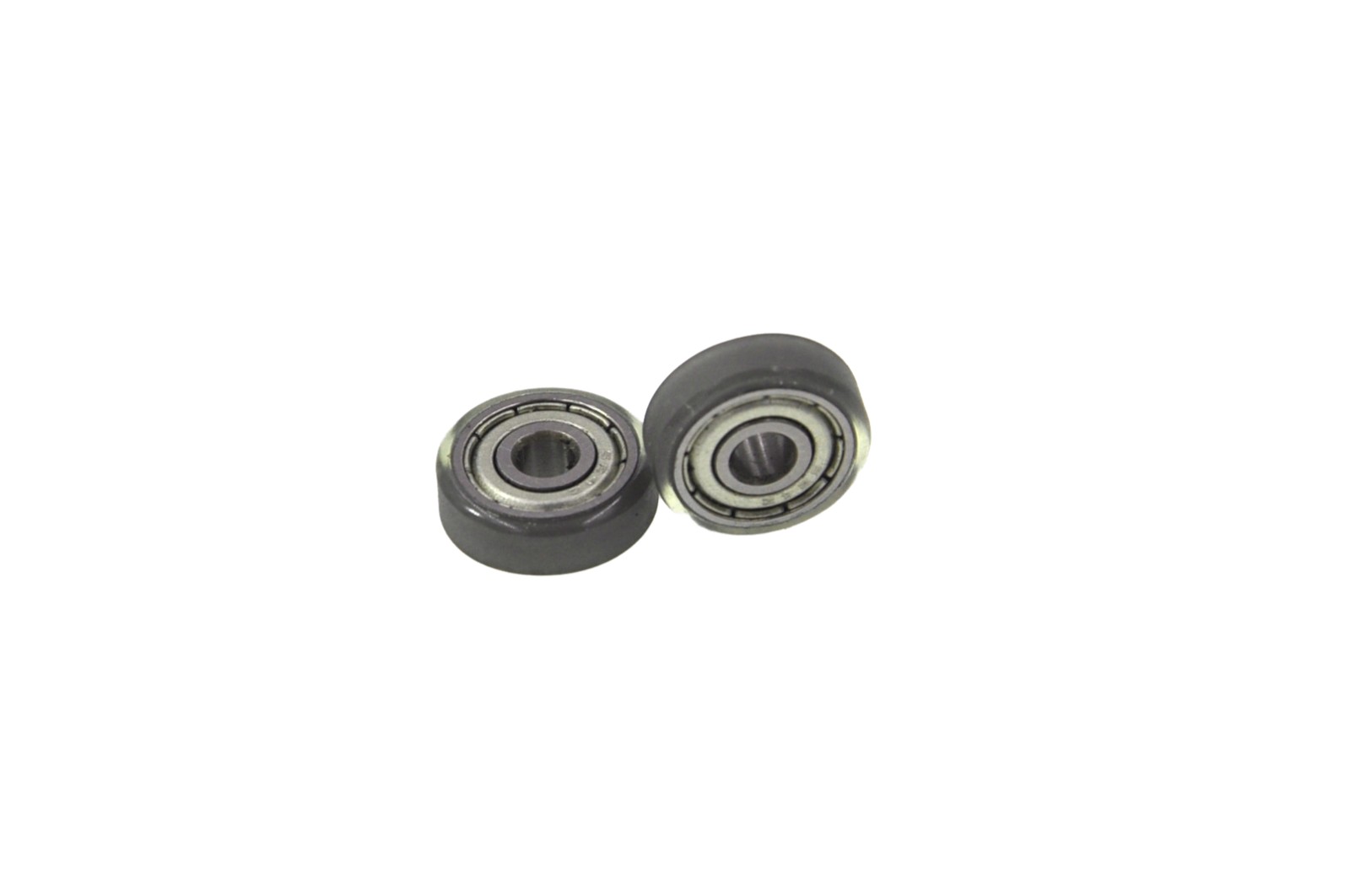

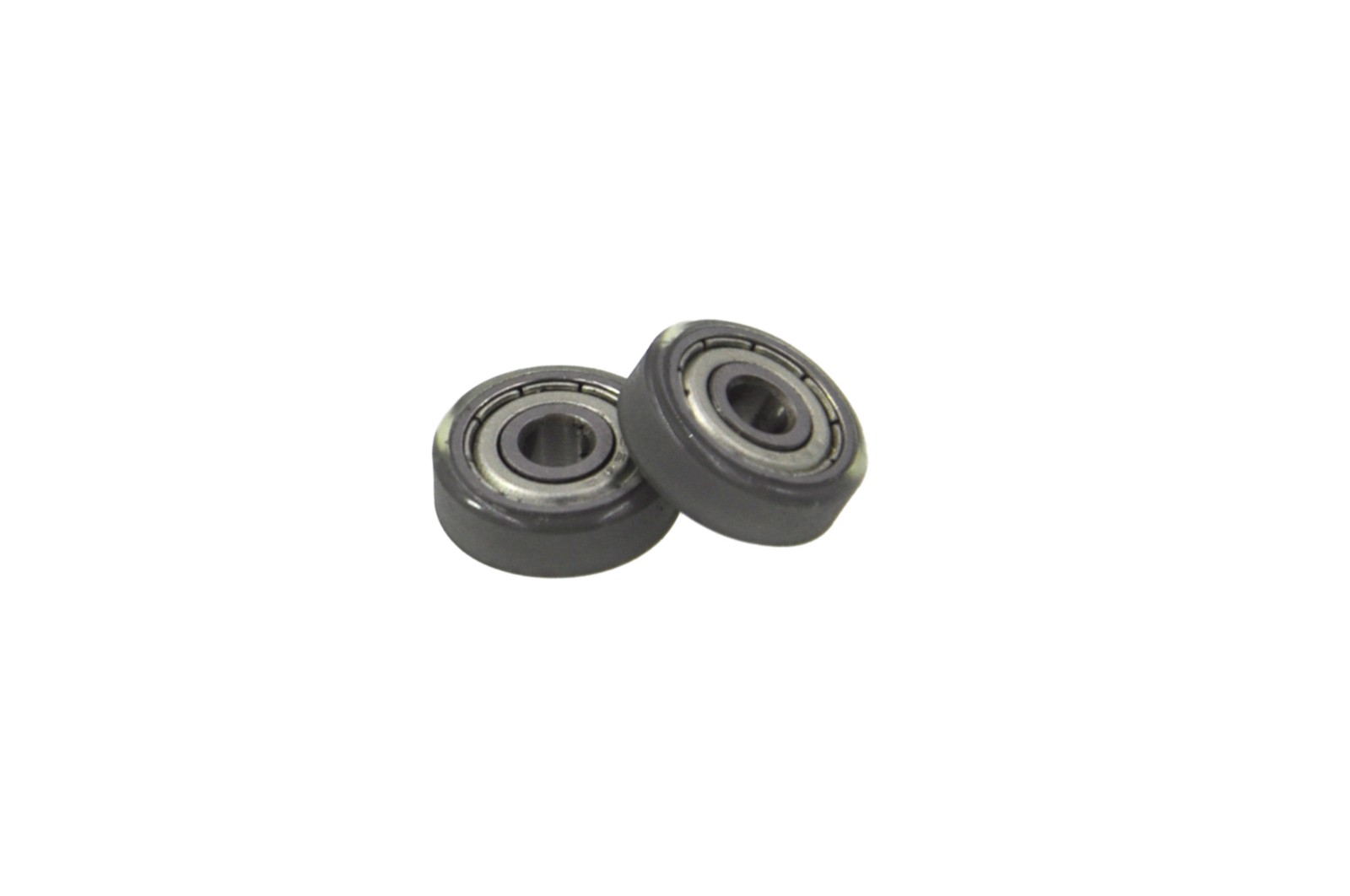

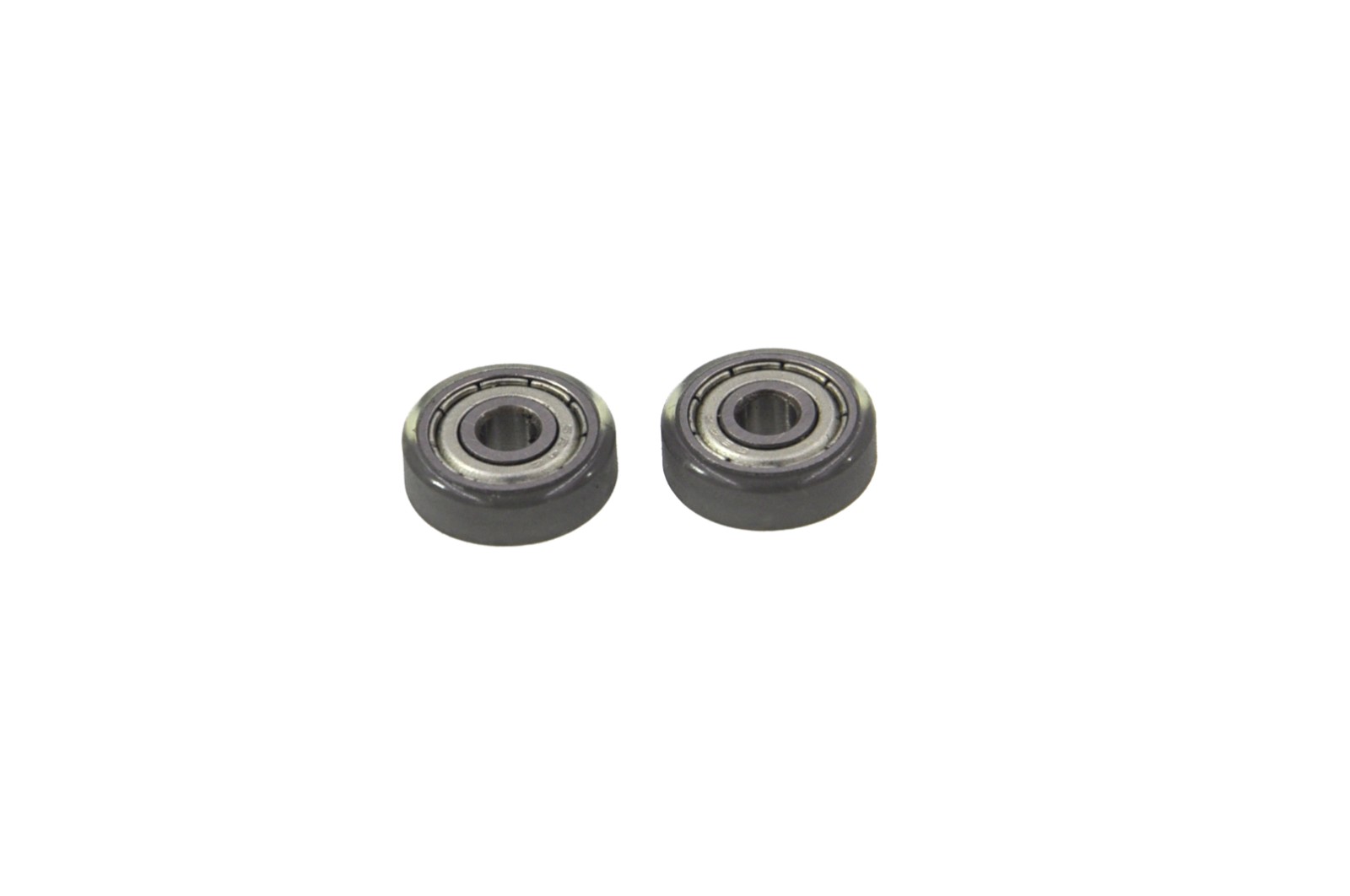

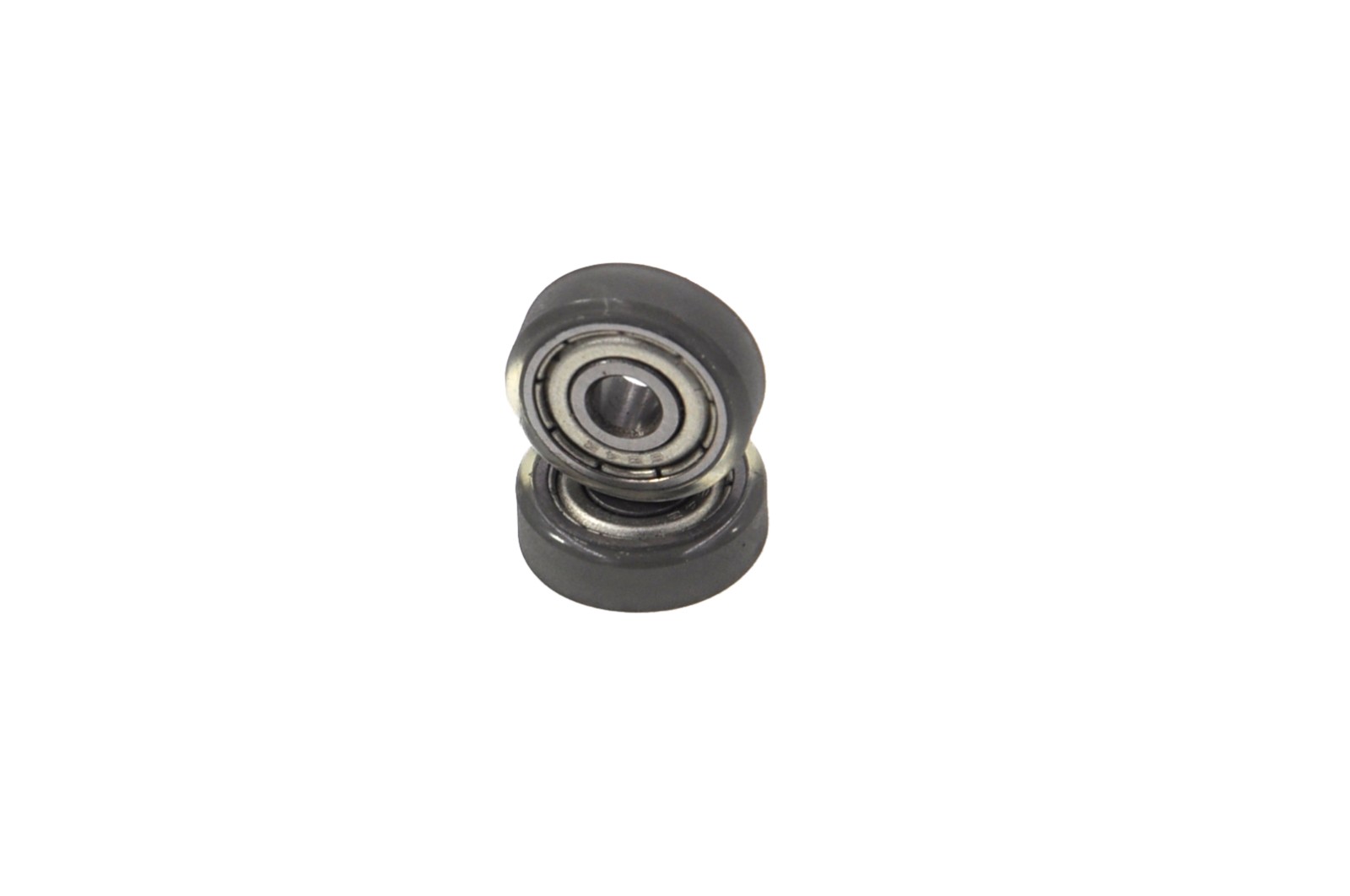

PU62415-5 4x15x5mm polyurethane wheel product pictures and drawing:
What are the benefits of polyurethane wheels?
Polyurethane covered bearing wheel are known for their better abrasion and tear resistance than rubbers,abrasion and tear resistance than rubbers, while offering higher load bearing capacity. Compared to plastics, low rolling resistance, and good grip, making them a popular choice for many applications, such as industrial equipment, small household appliance, transmission belt,bill sorting machine, Currency count machine, Paper currency sorter, converyor, low noise door, window, etc ...
Urethanes bearing offer superior impact resistance, while offering excellent wear properties and elastic memory. Urethanes wheel have replaced metals in sleeve bearings, wear plates, sprockets, rollers and various other parts, with benefits such as weight reduction, noise abatement and wear improvements being realized. which makes them ideal for use in harsh environments. Polyurethane wheel also called PU wheel, PU roller, soft wheel.
PU / Polyurethane wheel specfications:
